Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

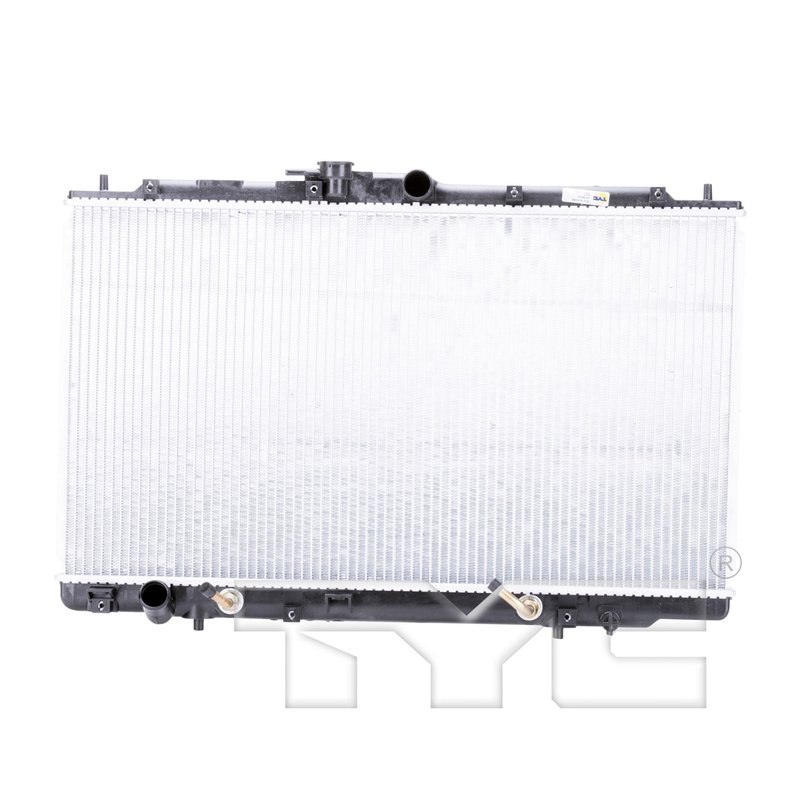

TYC 2147 Radiator
| Brand | TYC 2147 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.01x29.13 |
| Core Height (in) | 28.27 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.26 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.26 |
| Toc Distance (in) | 12.80 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.4x29.13 |
| Total Fin Row Count | 72 |
| Total Tube Count | 71 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Acura and Honda · 6 vehicles |
Aluminum core. Helps shed heat efficiently for dependable cooling performance.
Transmission oil cooler included. Adds integrated fluid cooling in one radiator assembly.
Downflow design. Promotes steady coolant circulation through the core.
Cross-references APDI 8012147, CSF 2295 and CSF 2296 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Honda Accord and Acura TL
The TYC Radiator 2147 is a direct-fit cooling replacement for select Honda and Acura applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support automatic transmission cooling in the same assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Core dimensions: 28.27 in. height, 15.75 in. length, 0.63 in. thickness
- Fits 1998-2002 Honda Accord and 1999 Acura TL applications
- TYC Radiator 2147 cross-references Spectra Premium CU2147 and DENSO 221-3213 for the same application
Detailed Description
TYC Radiator 2147 is engineered as a radiator assembly for vehicles that use integrated transmission fluid cooling. The aluminum core, single-row construction, and concentric transmission oil cooler are specified to match the cooling layout used on select Honda Accord and Acura TL models. With hose clamp inlet and outlet connections and OE-style dimensions, this radiator supports a straightforward replacement on the listed applications. The TYC Radiator line focuses on application-specific cooling components, and this part number is built around the fitment and connection style required for these vehicles.
Compatible With 1998-2002 Honda Accord and 1999 Acura TL, this radiator is a practical choice when replacing a leaking, clogged, or damaged cooling unit. Part number 2147 is also referenced by aftermarket and OE cross numbers, including Spectra Premium CU2147 and DENSO 221-3213.
What It Helps Address
- Coolant leaks from a cracked or corroded radiator
- Overheating caused by restricted coolant flow
- Transmission temperature concerns tied to a failing cooler circuit
- Reduced cooling efficiency from damaged fins or tubes
- Replacement needs after impact or age-related wear
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler line connection style before installation. Confirm the vehicle uses the listed downflow layout and concentric transmission oil cooler configuration. Flush the cooling system, inspect hoses and clamps, and check the transmission cooler lines for contamination before installing the new unit. After installation, refill with the correct coolant mixture and bleed the system according to the vehicle service procedure.
Quality Assurance
TYC manufactures application-specific cooling components for OE-style replacement use. This radiator is built to match the listed fitment and connection requirements for the specified Honda Accord and Acura TL applications.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Honda | Accord | — | 3.0L | V6 | N/A | TYC Radiator |
| 2001 | Honda | Accord | — | 3.0L | V6 | N/A | TYC Radiator |
| 2000 | Honda | Accord | — | 3.0L | V6 | N/A | TYC Radiator |
| 1999 | Acura | TL | Automatic | 3.2L | V6 | N/A | TYC Radiator |
| 1999 | Honda | Accord | — | 3.0L | V6 | N/A | TYC Radiator |
| 1998 | Honda | Accord | — | 3.0L | V6 | N/A | TYC Radiator |
