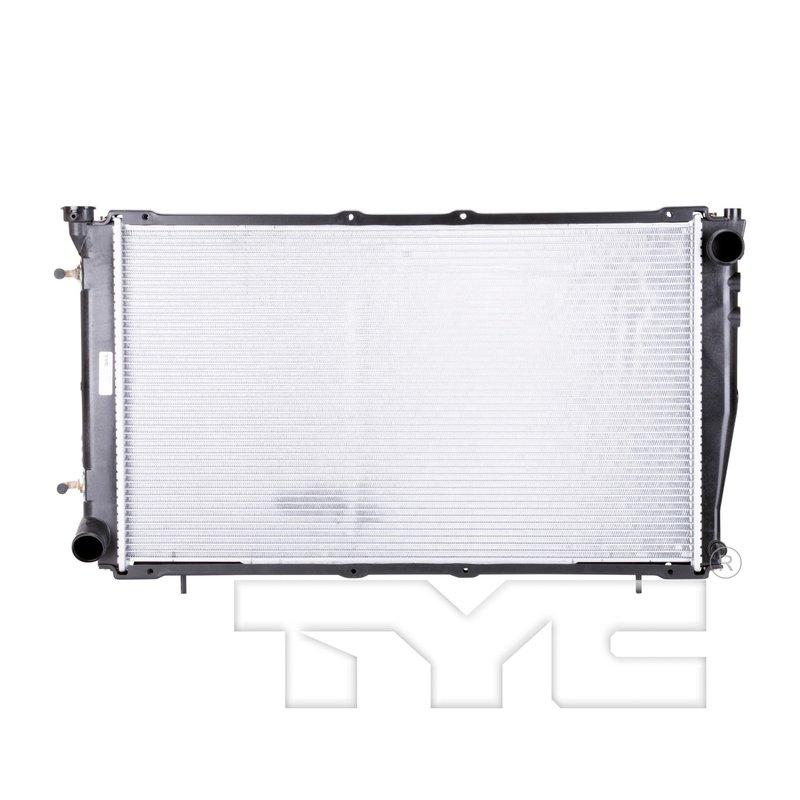

TYC 2152 Radiator - Primary
| Brand | TYC 2152 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.96x16.49 |
| Core Height (in) | 15.28 |
| Core Length (in) | 26.38 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.57 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.54 |
| Toc Distance (in) | 9.84 |
| Top Header | 1.96x16.49 |
| Total Fin Row Count | 47 |
| Total Tube Count | 46 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Subaru · 2 vehicles |
Aluminum core. Helps dissipate heat efficiently for dependable cooling performance.
Concentric oil cooler. Includes a transmission oil cooler integrated into the radiator.
Crossflow design. Promotes steady coolant flow through the radiator core.
Cross-references APDI 8012152, CSF 2588 and DENSO 221-9366 for the same application. See all 9.
TYC Radiator for Subaru Cooling Replacement
This TYC Radiator, part number 2152, is a direct-fit cooling system replacement for select 1998 Subaru Forester and 1998 Subaru Impreza applications. Built with an aluminum core and a crossflow design, it includes a concentric transmission oil cooler for vehicles that route automatic transmission fluid through the radiator.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included
- Concentric oil cooler type
- Hose clamp inlet and outlet connections
- Core dimensions: 26.38 in. length, 15.28 in. height, 0.63 in. thickness
- Single-row design with 46 tubes and 47 fin rows
- Fits 1998 Subaru Forester and 1998 Subaru Impreza, Primary
Detailed Description
TYC Radiator 2152 is engineered around the listed core dimensions and connection sizes to match the original cooling layout on the 1998 Subaru Forester and 1998 Subaru Impreza. The aluminum core, crossflow flow configuration, and integrated concentric transmission oil cooler support coolant and transmission-fluid heat exchange in one assembly. This makes it a practical OE-style radiator replacement for Subaru cooling system service where the original unit has leaked, clogged, or lost cooling efficiency.
This part cross-references Spectra Premium CU2152 and DENSO 221-9366 for the same application. For shoppers searching for a 1998 Subaru Forester radiator replacement or a 1998 Subaru Impreza radiator with transmission cooler, part number 2152 is the relevant reference.
What It Helps Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted coolant flow
- Transmission fluid temperature management through the radiator cooler
- Reduced cooling performance from aging internal tubes or fins
- Replacement needs after impact or physical damage to the radiator core
Installation Notes and Tips
Verify inlet and outlet hose diameters before installation: 1.57 in. inlet and 1.54 in. outlet. Confirm the vehicle uses the listed radiator configuration and transmission oil cooler routing before removal of the original unit. Inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination is present. After installation, refill with the correct coolant mixture and check for leaks at the hose clamp connections and cooler fittings.
Quality Assurance
TYC supplies replacement cooling components built to match application-specific dimensions and connection styles for service use. Part number 2152 is listed for confirmed fitment on 1998 Subaru Forester, N/A, and 1998 Subaru Impreza, Primary.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1998 | Subaru | Forester | — | — | Automatic | 2.5L | H4 | N/A | TYC Radiator |
| 1998 | Subaru | Impreza | RS | Coupe | Manual | 2.5L | H4 | Primary | TYC Radiator |
| No rows match your filter. | |||||||||
