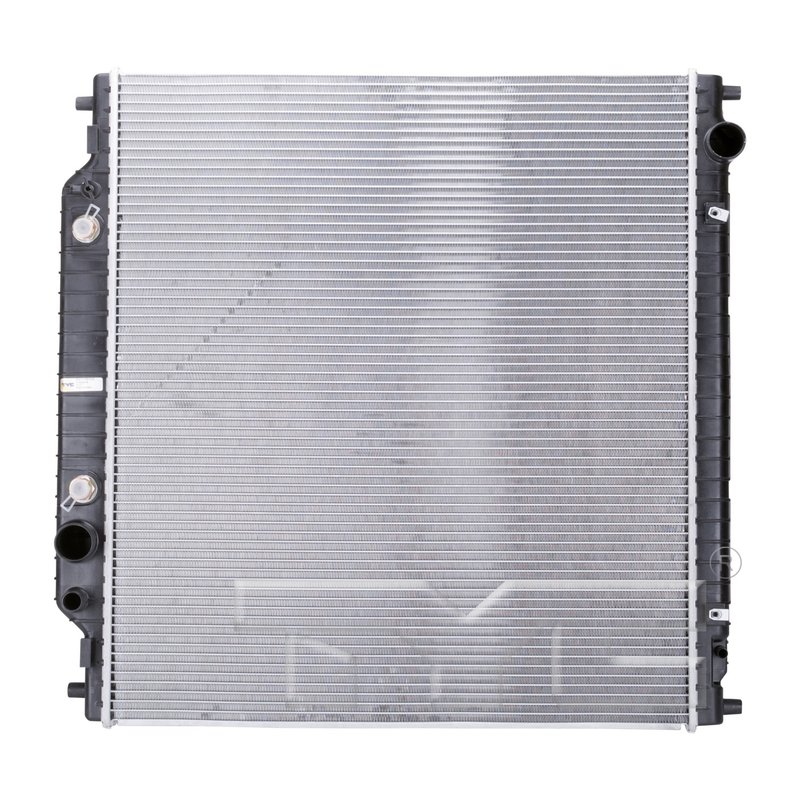

TYC 2171 Radiator

Overview of TYC Radiator 2171 for Ford Excursion and Super Duty

The TYC Radiator 2171 is engineered to provide reliable cooling performance for Ford Excursion, F-250 Super Duty, and F-350 Super Duty models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine temperature management under demanding conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Downflow core design with 1 row and 68 tubes for optimized coolant flow
• Core dimensions: 29.8 inches height, 26.5 inches length, and 2.2 inches thickness
• Hose clamp inlet and outlet connections with diameters of 1.75 and 1.77 inches respectively
• Fin count of 64 per 4 inches and total fin rows of 69 for improved airflow
• Compatible with Ford Excursion, F-250 Super Duty, and F-350 Super Duty vehicles

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. The TYC Radiator 2171 is part of this line, featuring robust aluminum cores and integrated transmission oil coolers designed to maintain optimal engine and transmission temperatures. This product line emphasizes durability and precise fitment for specific vehicle applications, including heavy-duty Ford trucks.

Technical Description and Specifications

This radiator features a single-row downflow core with 68 tubes measuring 26 by 2 inches, providing efficient coolant circulation. The aluminum core enhances heat transfer while maintaining structural integrity. The integrated plate-type transmission oil cooler supports transmission fluid temperature regulation, critical for heavy-duty Ford Excursion and Super Duty trucks. The inlet and outlet connections use hose clamps with diameters of 1.75 and 1.77 inches, ensuring secure hose attachment. The fin design includes 64 fins every 4 inches with a fin wave height of 0.35 inches and a pitch of 3.2 inches, optimizing airflow and cooling efficiency.

Common Applications and Problem Resolution

• Replaces leaking or damaged radiators in Ford Excursion and Super Duty trucks
• Addresses overheating issues caused by inefficient cooling systems
• Resolves transmission overheating by integrating a plate-type transmission oil cooler
• Improves engine cooling performance in heavy-duty driving conditions
• Restores proper coolant flow and pressure in the cooling system

Installation Notes and Tips

Installation requires proper handling of hose clamp connections for inlet and outlet hoses sized at approximately 1.75 inches. Ensure the transmission oil cooler adapters are correctly connected to maintain transmission fluid flow. Verify the radiator core dimensions and mounting points match the vehicle specifications for Ford Excursion, F-250 Super Duty, and F-350 Super Duty models. It is recommended to inspect all hoses and clamps for wear during installation and replace if necessary to prevent leaks.

Quality Assurance and Warranty

TYC Radiator 2171 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are tested for reliability under typical operating conditions. While specific warranty details are not provided, TYC products generally adhere to quality control processes to ensure consistent fit and function for Ford Excursion and Super Duty vehicles.
