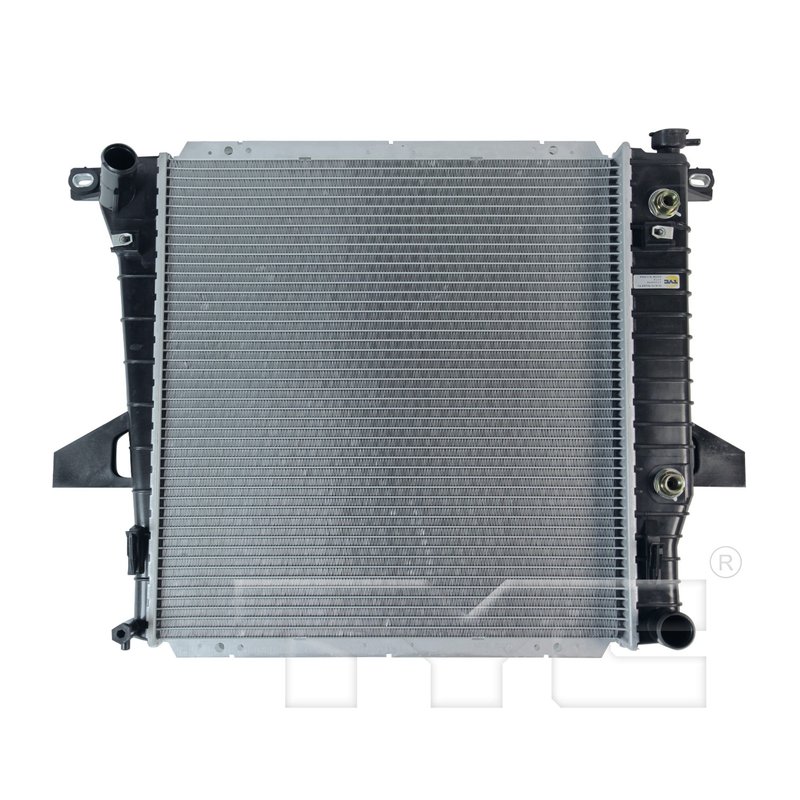

TYC 2172 Radiator
| Brand | TYC 2172 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 3.14x21.69 |
| Core Height (in) | 21.14 |
| Core Length (in) | 20.04 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 5/8-18unf |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 5/8-18unf |
| Toc Outlet Type | Adapter |
| Top Header | 1.95x21.68 |
| Total Fin Row Count | 49 |
| Total Tube Count | 48 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Cross-references APDI 8012172, CSF 2449 and DENSO 221-9137 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for 1998-2001 Ford Ranger
The TYC Radiator 2172 is a direct-fit cooling system replacement for the 1998-2001 Ford Ranger. Built with an aluminum core and a crossflow design, it includes a transmission oil cooler to support automatic transmission cooling in the same unit.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included with plate oil cooler design
- Hose clamp inlet and outlet connections
- 1.50 in. inlet and outlet diameters
- Single-row core design with 48 tubes and 49 total fin rows
- TYC Radiator 2172 for Ford Ranger cooling system service
Product Details
This TYC Radiator 2172 is engineered for 1998-2001 Ford Ranger applications and is built around a 21.14 in. core height, 20.04 in. core length, and 1.02 in. core thickness. The radiator uses an aluminum core with a crossflow flow configuration, 26 x 2 tube width and height, and hose clamp inlet and outlet connections sized at 1.50 in. The integrated transmission oil cooler uses adapter-style 5/8-18UNF inlet and outlet fittings, making this unit a practical replacement when the original radiator also serves the transmission cooling circuit. TYC Radiator 2172 is also cross-referenced to OE and aftermarket numbers including Ford F87Z 8005 GA and Spectra Premium CU2172.
What It Helps Address
- Engine overheating caused by a worn or leaking radiator
- Transmission fluid temperature control issues tied to a failed cooler circuit
- Coolant loss from cracked tanks or damaged core passages
- Restricted heat dissipation from corroded or clogged radiator tubes
- Cooling system service needs on a Ford Ranger with integrated transmission cooling
Installation Notes and Tips
Verify hose routing, inlet and outlet sizing, and transmission cooler line connections before installation. Flush the cooling system and inspect hoses, clamps, and related seals for wear before installing the replacement radiator. Confirm fitment against the vehicle’s year and cooling configuration for the 1998-2001 Ford Ranger before final assembly.
Quality Assurance
TYC manufactures replacement cooling components with OE-style fitment and application-specific design details. This radiator is built to match the listed Ford Ranger applications and support reliable cooling system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Ford | Ranger | 2.5L | L4 | N/A | TYC Radiator |
| 2000 | Ford | Ranger | 2.5L | L4 | N/A | TYC Radiator |
| 1999 | Ford | Ranger | 2.5L | L4 | N/A | TYC Radiator |
| 1998 | Ford | Ranger | 2.5L | L4 | N/A | TYC Radiator |
