Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

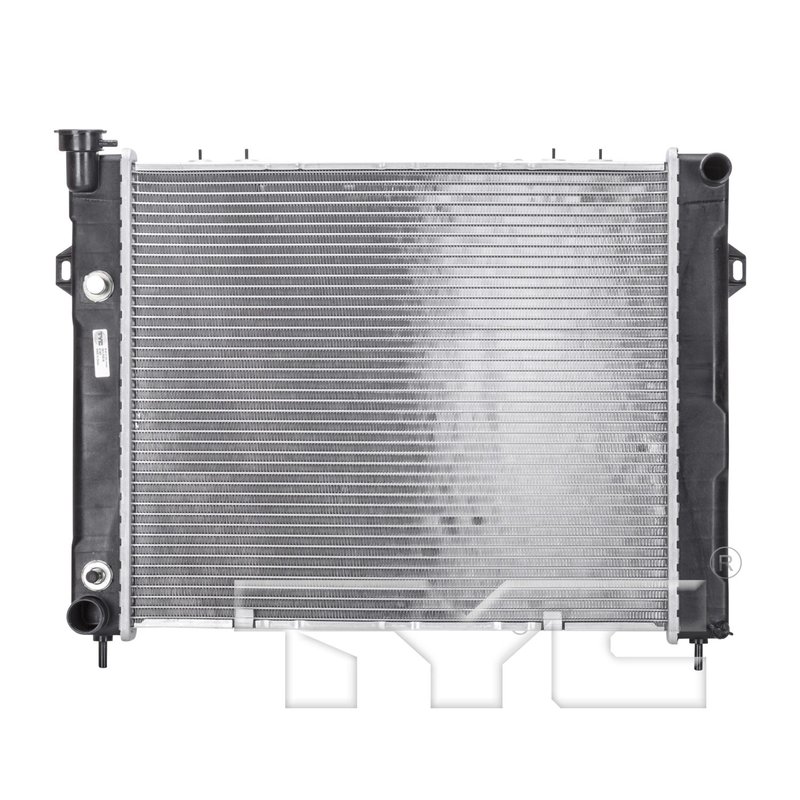

TYC 2182 Radiator
| Brand | TYC 2182 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.43x20.58 |
| Core Height (in) | 19.41 |
| Core Length (in) | 22.24 |
| Core Thickness (in) | 1.26 |
| Fin Count (every 4") | 60 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.22 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 11/16-16unf |
| Toc Inlet Type | Adapter |
| Top Header | 2.43x20.58 |
| Total Fin Row Count | 45 |
| Total Tube Count | 44 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Jeep · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Cross-references APDI 8011396, Chrysler 5191938AA and Partslink CH3010205 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Jeep Grand Cherokee
The TYC Radiator 2182 is a direct-fit cooling replacement for 1993-1998 Jeep Grand Cherokee models with slot mount applications. Built with an aluminum core and a crossflow design, it includes an integrated transmission oil cooler with a plate-style cooler for automatic transmission fluid routing.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Integrated transmission oil cooler included
- Plate oil cooler type for transmission fluid cooling
- Hose clamp inlet and outlet connections
- Single-row core design
- Fits 1993-1998 Jeep Grand Cherokee, N/A, w/ Slot Mount
Product Details
TYC Radiator 2182 is built around a 19.41-inch core height, 22.24-inch core length, and 1.26-inch core thickness. The radiator uses an aluminum core with 44 tubes and 45 total fin rows, supporting heat dissipation in everyday driving and stop-and-go conditions. The inlet measures 1.22 inches and the outlet measures 1.50 inches, both using hose clamp connections for straightforward hose attachment. The transmission oil cooler uses an adapter-style inlet with 11/16-16UNF threading and a 12.01-inch TOC distance.
This radiator cross-references APDI 8011396, Chrysler 5191938AA, Partslink CH3010205, and Spectra Premium CU2182 for the same application. It is a practical replacement choice for Jeep Grand Cherokee cooling system service when the original radiator shows signs of leakage, restricted flow, or transmission cooler issues.
What This Radiator Helps Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by reduced heat transfer
- Transmission fluid temperature control concerns
- Cracked or aging hose connection points
- Cooling system performance loss in a 1993-1998 Jeep Grand Cherokee
Installation Notes and Tips
Verify slot mount configuration before installation on your Jeep Grand Cherokee. Confirm inlet and outlet hose sizes, transmission cooler line connection type, and overall radiator dimensions against the removed unit before final assembly. Flush the cooling system, inspect hoses and clamps, and check for proper fan, shroud, and mounting clearance during installation.
Quality Assurance
TYC Radiator components are built to support OE-style replacement needs with application-specific fitment and construction details matched to the listed vehicle range. Confirm all connection points and mounting style before installation to ensure proper fit on 1993-1998 Jeep Grand Cherokee models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | w/ Slot Mount; TYC Radiator |
| 1997 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | w/ Slot Mount; TYC Radiator |
| 1996 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | w/ Slot Mount; TYC Radiator |
| 1995 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | w/ Slot Mount; TYC Radiator |
| 1994 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | w/ Slot Mount; TYC Radiator |
| 1993 | Jeep | Grand Cherokee | 4.0L | L6 | N/A | w/ Slot Mount; TYC Radiator |
