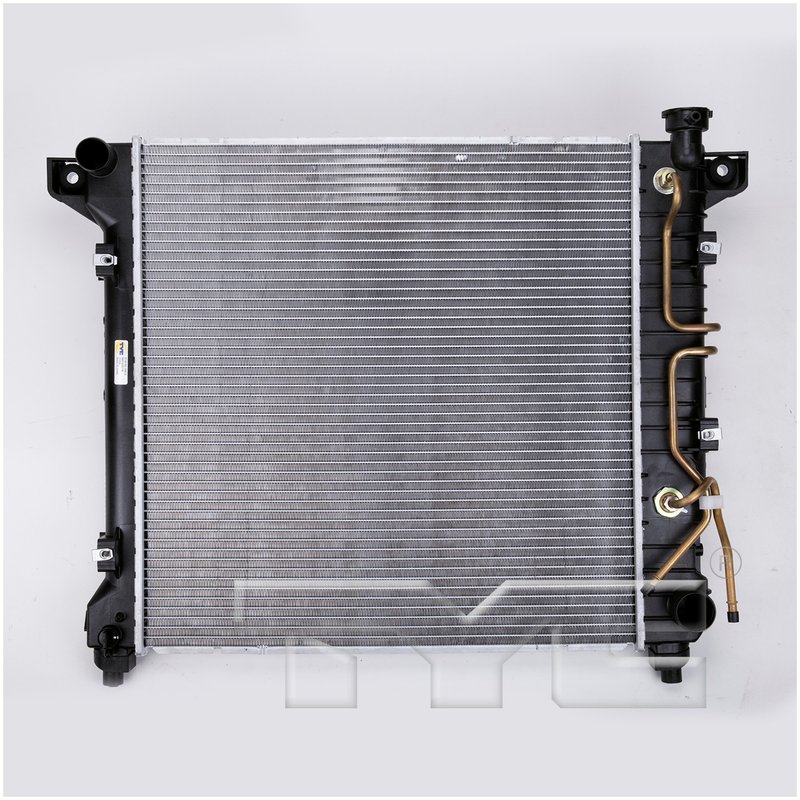

TYC 2186 Radiator
| Brand | TYC 2186 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Type | Plate oil cooler(extraposition) |
| Engine Oil Cooler Included | Yes |
| Bottom Header | 2.54x23.17 |
| Core Height (in) | 22.44 |
| Core Length (in) | 21.97 |
| Core Thickness (in) | 1.26 |
| Eoc Distance (in) | 9.75 |
| Eoc Inlet Diameter (in) | 0.37 |
| Eoc Inlet Diameter (mm) | 9.5 |
| Eoc Inlet Type | Tube fitting |
| Eoc Outlet Diameter (in) | 0.37 |
| Eoc Outlet Type | Tube fitting |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.77 |
| Toc Distance (in) | 14.37 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.54x23.17 |
| Product line | TYC Radiator |
| Fits | Dodge · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through a single-row radiator.
Integrated coolers. Includes transmission and engine oil cooler circuits.
Cross-references APDI 8012186, CRS CUC2186 and CryoMAX 2186 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Dodge Dakota Cooling Service
This TYC Radiator, part number 2186, is a direct-fit replacement for select 1997-1998 Dodge Dakota models with standard duty cooling. It combines an aluminum core with integrated transmission and engine oil cooler provisions to support factory-style cooling system operation.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow design with one-row core layout
- Transmission oil cooler included with concentric oil cooler type
- Engine oil cooler included with plate oil cooler (extraposition)
- Hose clamp inlet and outlet connections
- Core dimensions: 22.44 in. height, 21.97 in. length, 1.26 in. thickness
- Fits 1997-1998 Dodge Dakota, N/A, with Std Duty Cooling
Detailed Description
TYC Radiator 2186 is built for 1997-1998 Dodge Dakota applications that use standard duty cooling. The aluminum core, crossflow flow configuration, and integrated cooler circuits are specified to match the cooling and fluid-routing needs of the original setup. With hose clamp inlet and outlet connections, this radiator is suited to factory-style replacement work where fitment and cooling-system compatibility matter.
The TYC Radiator line focuses on replacement radiators engineered around OE-style dimensions and connection points. For this application, part number 2186 includes both transmission oil cooler and engine oil cooler provisions, making it a practical choice for a Dodge Dakota radiator replacement where those functions are part of the original configuration. This part cross-references APDI 8012186 and Spectra Premium CU2186 for the same application.
Common Problems This Radiator Addresses
- Coolant leaks from a damaged or corroded radiator core
- Overheating caused by restricted or inefficient heat exchange
- Transmission fluid temperature issues tied to a failing cooler circuit
- Engine oil cooling concerns when the original cooler passages are compromised
- Fitment problems from using a radiator that does not match the Dakota cooling configuration
Installation Notes and Tips
Verify the vehicle is a 1997-1998 Dodge Dakota with standard duty cooling before installation. Confirm inlet and outlet hose sizes, cooler line routing, and mounting dimensions against the original radiator. Inspect hoses, clamps, and cooler lines for wear before transferring the new radiator into service. Proper system bleeding and coolant refill procedures should be followed after installation.
Quality Assurance
TYC Radiator 2186 is built as a replacement cooling component for the listed Dodge Dakota fitment and is specified with aluminum construction and integrated cooler features to align with the original application requirements.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1998 | Dodge | Dakota | Sport | Extended Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1998 | Dodge | Dakota | SLT | Standard Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1998 | Dodge | Dakota | Sport | Standard Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1998 | Dodge | Dakota | Base | Extended Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1998 | Dodge | Dakota | SLT | Extended Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1998 | Dodge | Dakota | Base | Standard Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1997 | Dodge | Dakota | SLT | Standard Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1997 | Dodge | Dakota | Base | Extended Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1997 | Dodge | Dakota | Sport | Standard Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1997 | Dodge | Dakota | SLT | Extended Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1997 | Dodge | Dakota | Sport | Extended Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
| 1997 | Dodge | Dakota | Base | Standard Cab Pickup | Automatic | 3.9L | V6 | N/A | w/ Std Duty Cooling; TYC Radiator |
