Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

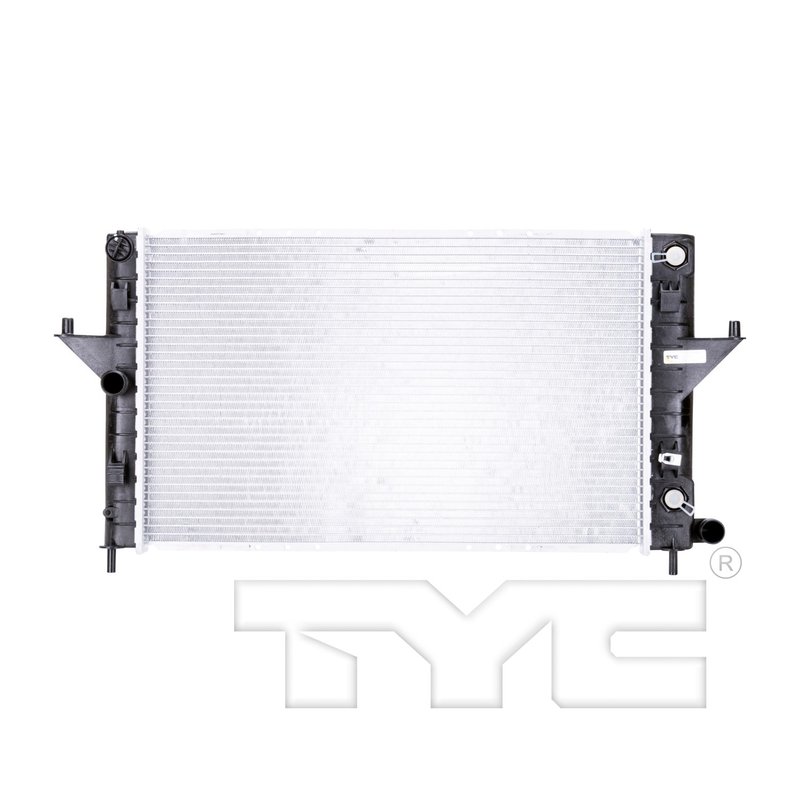

TYC 2191 Radiator - Primary
| Brand | TYC 2191 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.42x15.63 |
| Core Height (in) | 14.49 |
| Core Length (in) | 23.62 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.22 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.22 |
| Toc Distance (in) | 11.50 |
| Top Header | 2.42x15.63 |
| Total Fin Row Count | 37 |
| Total Tube Count | 36 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Saturn · 59 vehicles |
Aluminum core. Lightweight construction helps transfer heat efficiently.
Crossflow design. Promotes steady coolant flow through the radiator.
Transmission oil cooler included. Built with a concentric oil cooler for added cooling support.
Cross-references APDI 8012191, CSF 2543 and Delphi RA1145 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2
The TYC Radiator 2191 is a direct-fit cooling replacement for select Saturn compact cars and wagons from 1994-2002. Built with an aluminum core and a crossflow design, it includes a concentric transmission oil cooler for automatic-transmission applications.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included with concentric oil cooler design
- Single-row core with 36 tubes and 37 fin rows
- Hose clamp inlet and outlet connections, 1.22 in. diameter
- Fits Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 applications
- TYC Radiator 2191 cross-references Spectra Premium CU2191 for the same application
Product Details
TYC Radiator 2191 is engineered for Saturn cooling-system service where a replacement radiator must match the original layout and transmission cooler configuration. The aluminum core, 23.62 in. core length, 14.49 in. core height, and 0.63 in. core thickness support OE-style fitment in 1994-1995 Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 models, plus 1996-2002 Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 coverage. This part number is also listed under TYC Radiator 2191 for easy catalog matching.
What It Helps Address
- Overheating caused by a worn or leaking radiator
- Transmission fluid cooling concerns in automatic-equipped vehicles
- Coolant loss from cracked tanks or damaged core passages
- Restricted heat exchange from aged internal tubes and fins
- Fitment issues when replacing an original Saturn radiator
Installation Notes and Tips
Verify inlet and outlet hose diameter, transmission cooler routing, and mounting dimensions before installation. This radiator uses hose clamp connections and a concentric transmission oil cooler, so line routing should match the original vehicle setup. Confirm application details for your Saturn SC1, SC2, SL, SL1, SL2, SW1, or SW2 before final assembly.
Quality Assurance
TYC Radiator 2191 is built as a replacement cooling component for the listed Saturn applications and is cataloged against multiple interchange numbers for application matching.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Saturn | SC1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2002 | Saturn | SC2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2002 | Saturn | SL | — | 1.9L | L4 | N/A | TYC Radiator |
| 2002 | Saturn | SL1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2002 | Saturn | SL2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2001 | Saturn | SC1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2001 | Saturn | SC2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2001 | Saturn | SL | — | 1.9L | L4 | N/A | TYC Radiator |
| 2001 | Saturn | SL1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2001 | Saturn | SL2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2001 | Saturn | SW2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2000 | Saturn | SC1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2000 | Saturn | SC2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2000 | Saturn | SL | — | 1.9L | L4 | N/A | TYC Radiator |
| 2000 | Saturn | SL1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2000 | Saturn | SL2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 2000 | Saturn | SW2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1999 | Saturn | SC1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1999 | Saturn | SC2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1999 | Saturn | SL | — | 1.9L | L4 | N/A | TYC Radiator |
| 1999 | Saturn | SL1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1999 | Saturn | SL2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1999 | Saturn | SW1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1999 | Saturn | SW2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1998 | Saturn | SC1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1998 | Saturn | SC2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1998 | Saturn | SL | — | 1.9L | L4 | N/A | TYC Radiator |
| 1998 | Saturn | SL1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1998 | Saturn | SL2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1998 | Saturn | SW1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1998 | Saturn | SW2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1997 | Saturn | SC1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1997 | Saturn | SC2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1997 | Saturn | SL | — | 1.9L | L4 | N/A | TYC Radiator |
| 1997 | Saturn | SL1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1997 | Saturn | SL2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1997 | Saturn | SW1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1997 | Saturn | SW2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1996 | Saturn | SC1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1996 | Saturn | SC2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1996 | Saturn | SL | — | 1.9L | L4 | N/A | TYC Radiator |
| 1996 | Saturn | SL1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1996 | Saturn | SL2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1996 | Saturn | SW1 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1996 | Saturn | SW2 | — | 1.9L | L4 | N/A | TYC Radiator |
| 1995 | Saturn | SC1 | Coupe | 1.9L | L4 | Primary | TYC Radiator |
| 1995 | Saturn | SC2 | Coupe | 1.9L | L4 | Primary | TYC Radiator |
| 1995 | Saturn | SL | Sedan | 1.9L | L4 | Primary | TYC Radiator |
| 1995 | Saturn | SL1 | Sedan | 1.9L | L4 | Primary | TYC Radiator |
| 1995 | Saturn | SL2 | Sedan | 1.9L | L4 | Primary | TYC Radiator |
| 1995 | Saturn | SW1 | Wagon | 1.9L | L4 | Primary | TYC Radiator |
| 1995 | Saturn | SW2 | Wagon | 1.9L | L4 | Primary | TYC Radiator |
| 1994 | Saturn | SC1 | Coupe | 1.9L | L4 | Primary | TYC Radiator |
| 1994 | Saturn | SC2 | Coupe | 1.9L | L4 | Primary | TYC Radiator |
| 1994 | Saturn | SL | Sedan | 1.9L | L4 | Primary | TYC Radiator |
| 1994 | Saturn | SL1 | Sedan | 1.9L | L4 | Primary | TYC Radiator |
| 1994 | Saturn | SL2 | Sedan | 1.9L | L4 | Primary | TYC Radiator |
| 1994 | Saturn | SW1 | Wagon | 1.9L | L4 | Primary | TYC Radiator |
| 1994 | Saturn | SW2 | Wagon | 1.9L | L4 | Primary | TYC Radiator |
