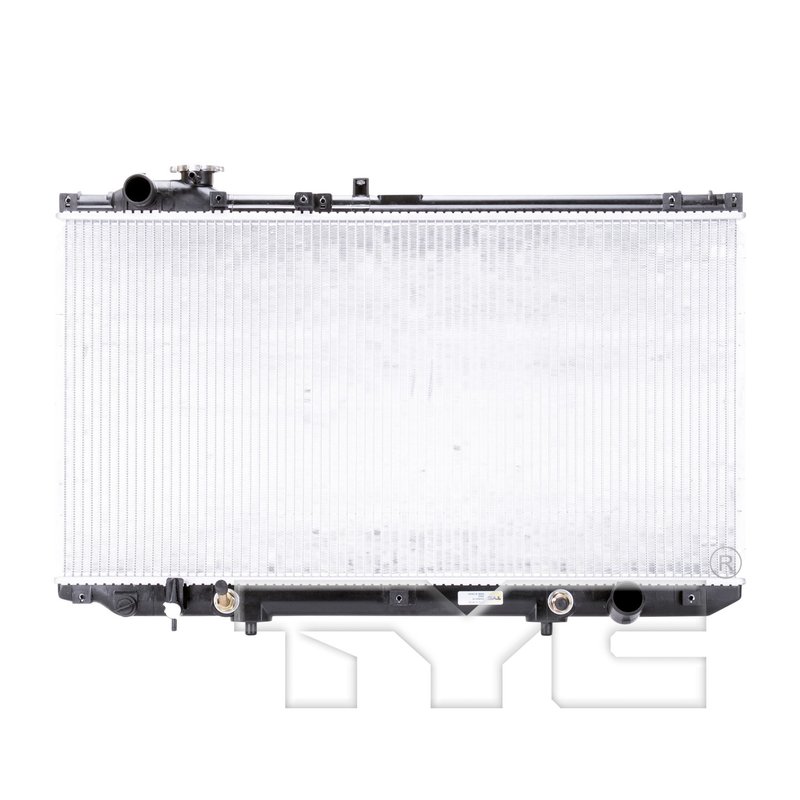

TYC 2222 Radiator
| Brand | TYC 2222 |
|---|---|
| Accessories Included | Pressure cap |
| Bottom Header | 2.01x30.61 |
| Core Height (in) | 29.84 |
| Core Length (in) | 15.75 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.01x30.61 |
| Total Fin Row Count | 76 |
| Total Tube Count | 75 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Lexus · 11 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Built with an integrated transmission oil cooler for added cooling support.
Pressure cap included. Adds a needed accessory right out of the box.
Cross-references APDI 8012222, CSF 2595 and DENSO 221-3121 for the same application. See all 10.
TYC Radiator for Lexus GS300 and GS400
Restore cooling performance with the TYC Radiator 2222, built for select Lexus GS300 and GS400 applications. This aluminum radiator includes a concentric transmission oil cooler and a pressure cap, making it a direct-fit cooling replacement for vehicles that need dependable engine temperature control and automatic transmission fluid cooling.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow design with one-row core layout
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Pressure cap included
- Core dimensions: 29.84 in. height, 15.75 in. length, 0.63 in. thickness
- Fits Lexus GS300 and Lexus GS400 applications listed below
Product Details
TYC Radiator 2222 is engineered around the listed fitments for 1998-2005 Lexus GS300 and 1998-2000 Lexus GS400 models. The aluminum core, downflow flow configuration, and integrated transmission oil cooler support stable coolant circulation and transmission fluid temperature management in vehicles equipped for this radiator style. The included pressure cap adds convenience for replacement service, while the hose clamp inlet and outlet connections match the specified OE-style setup. This part cross-references Toyota 16400-46570 for the same application.
What This Radiator Helps Address
- Overheating caused by a worn or leaking radiator
- Coolant loss from cracked tanks or damaged core passages
- Transmission fluid temperature issues tied to a failing cooler circuit
- Reduced cooling efficiency from clogged or corroded radiator internals
- Service replacement needs on Lexus GS300 and Lexus GS400 cooling systems
Installation Notes and Tips
Verify inlet and outlet diameters, core dimensions, and transmission cooler line routing before installation. Confirm the vehicle uses the listed downflow radiator configuration and concentric transmission oil cooler setup. Flush the cooling system, inspect hoses and clamps, and check for contamination before filling with the correct coolant mixture. After installation, bleed air from the system and inspect for leaks at all hose and cooler connections.
Quality Assurance
TYC Radiator 2222 is built to match the listed application requirements for Lexus GS300 and GS400 fitment. The part number 2222 is also referenced in OE-style replacement catalogs for this cooling system application, including Toyota 16400-46570.
- Fits 1998-2005 Lexus GS300, N/A
- Fits 1998-2000 Lexus GS400, N/A
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 2004 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 2003 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 2002 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 2001 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 2000 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 2000 | Lexus | GS400 | Automatic | 4.0L | V8 | N/A | TYC Radiator |
| 1999 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 1999 | Lexus | GS400 | Automatic | 4.0L | V8 | N/A | TYC Radiator |
| 1998 | Lexus | GS300 | Automatic | 3.0L | L6 | N/A | TYC Radiator |
| 1998 | Lexus | GS400 | Automatic | 4.0L | V8 | N/A | TYC Radiator |
