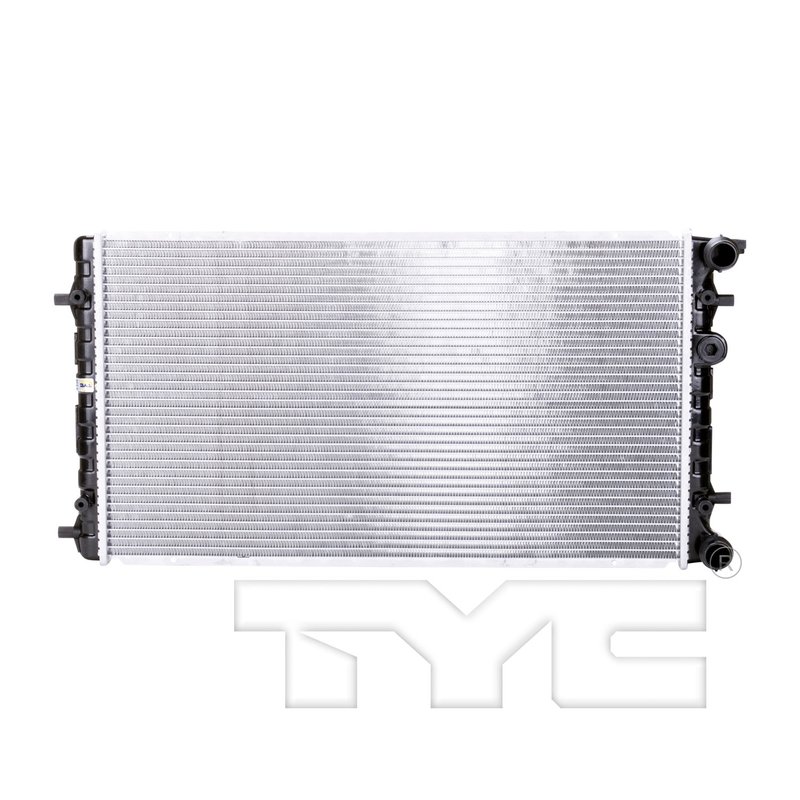

TYC 2241 Radiator - Primary

Overview of TYC Radiator 2241 for Volkswagen Beetle

The TYC Radiator 2241 is designed specifically for Volkswagen Beetle models, providing reliable engine cooling with durable aluminum construction. This radiator features a crossflow design and quick connect inlet and outlet connections for efficient heat dissipation and ease of installation.

• Core material: Aluminum for lightweight and corrosion resistance
• Core dimensions: 14.09 inches height, 25.51 inches length, 1.26 inches thickness
• Crossflow flow configuration for optimized coolant circulation
• Quick connect (spring lock) inlet and outlet connections, each 1.26 inches in diameter
• Single-row core with 35 tubes and 64 fins per 4 inches for effective heat exchange
• Top and bottom headers measuring 2.01 by 15.02 inches

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. Radiators in this line, including part number 2241, utilize aluminum cores and precise fin and tube configurations to ensure consistent engine temperature regulation for Volkswagen vehicles such as the Beetle.

Technical Description and Features

This radiator features a 1.26-inch thick aluminum core with a height of 14.09 inches and length of 25.51 inches, providing a robust surface area for heat dissipation. The crossflow design enhances coolant flow efficiency, while the 64 fins per 4 inches and 35 tubes arranged in a single row maximize thermal transfer. Both the inlet and outlet connections use quick connect spring lock fittings with a 1.26-inch diameter, facilitating secure and straightforward hose attachment. The top and bottom headers measure 2.01 by 15.02 inches, contributing to structural integrity and coolant distribution.

Compatible Applications and Common Issues Addressed

• Replacement radiator for Volkswagen Beetle cooling system maintenance
• Resolves overheating caused by damaged or clogged radiators
• Addresses coolant leaks from corroded or cracked radiator cores
• Improves engine temperature regulation for consistent performance
• Suitable for vehicles requiring a radiator with quick connect fittings

Installation Notes and Tips

When installing the TYC Radiator 2241, ensure the quick connect spring lock fittings are properly seated to prevent coolant leaks. Verify compatibility with your Volkswagen Beetle model year before installation. It is recommended to flush the cooling system and inspect hoses and clamps during replacement to maintain optimal cooling performance.

Quality Assurance and Warranty

TYC Radiator products are manufactured to meet industry standards for durability and performance. Part number 2241 is constructed with corrosion-resistant aluminum and designed for long service life. Please refer to TYC's warranty policy for specific coverage details.
