Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

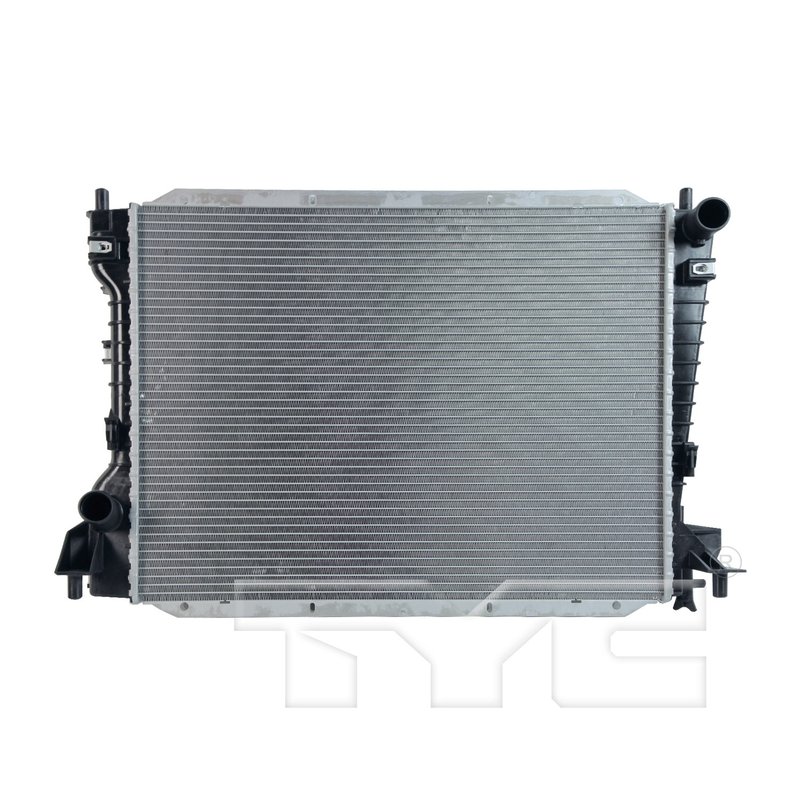

TYC 2256 Radiator
| Brand | TYC 2256 |
|---|---|
| Bottom Header | 2x18.65 |
| Core Height (in) | 18.11 |
| Core Length (in) | 24.13 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.50 |
| Top Header | 2x18.65 |
| Total Fin Row Count | 42 |
| Total Tube Count | 41 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Lincoln and Ford · 17 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Hose clamp connections. Simple inlet and outlet attachment for a secure fit.
Cross-references APDI 8012256, Ford 5W4Z 8005 AA and Ford 6W4Z 8005AA for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 2256 Radiator for Lincoln LS and Thunderbird
TYC Radiator 2256 is a direct-fit replacement radiator built with an aluminum core and crossflow design for the specified Lincoln and Ford applications. It is engineered for hose-clamp inlet and outlet connections and uses a single-row layout to match the listed cooling system requirements.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow configuration for the listed vehicle applications
- 1.50 in. inlet and outlet diameters with hose-clamp connections
- Single-row design with 24.13 in. core length and 18.11 in. core height
- No engine oil cooler included
- No transmission oil cooler included
- TYC Radiator 2256 cross-references Spectra Premium CU2256 for the same application
Product Details
This TYC radiator is built around a 26 x 2 tube width and height profile, with 41 total tubes and 42 total fin rows to support heat dissipation in the cooling system. The core measures 24.13 inches long, 18.11 inches high, and 1.02 inches thick, making it a fit-focused replacement for vehicles that use the listed dimensions and connection style. TYC 2256 is listed for 2000-2006 Lincoln LS and 2002-2005 Ford Thunderbird applications, and the fitment data should be matched to the vehicle’s cooling system configuration before installation.
What This Radiator Helps Address
- Overheating caused by a damaged or restricted radiator core
- Coolant leaks from cracked or corroded radiator assemblies
- Reduced cooling efficiency from worn internal tubes or fins
- Fitment issues when replacing the original Lincoln LS or Thunderbird radiator
- Cooling system service needs after radiator failure or contamination
Installation Notes and Tips
Verify core dimensions, inlet and outlet size, and hose-clamp connection style against the original unit before installation. Inspect radiator hoses, clamps, and coolant condition during replacement, and confirm that the cooling system is properly bled after installation. This radiator is listed for Fits 2000-2006 Lincoln LS, N/A and Fits 2002-2005 Ford Thunderbird, N/A.
Quality Assurance
TYC Radiator 2256 is built as an aftermarket replacement for the listed applications and is supported by interchange references including APDI 8012256, Partslink FO3010130, and Spectra Premium CU2256.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Lincoln | LS | 3.9L | V8 | N/A | TYC Radiator |
| 2005 | Ford | Thunderbird | 3.9L | V8 | N/A | TYC Radiator |
| 2005 | Lincoln | LS | 3.0L | V6 | N/A | TYC Radiator |
| 2005 | Lincoln | LS | 3.9L | V8 | N/A | TYC Radiator |
| 2004 | Ford | Thunderbird | 3.9L | V8 | N/A | TYC Radiator |
| 2004 | Lincoln | LS | 3.0L | V6 | N/A | TYC Radiator |
| 2004 | Lincoln | LS | 3.9L | V8 | N/A | TYC Radiator |
| 2003 | Ford | Thunderbird | 3.9L | V8 | N/A | TYC Radiator |
| 2003 | Lincoln | LS | 3.0L | V6 | N/A | TYC Radiator |
| 2003 | Lincoln | LS | 3.9L | V8 | N/A | TYC Radiator |
| 2002 | Ford | Thunderbird | 3.9L | V8 | N/A | TYC Radiator |
| 2002 | Lincoln | LS | 3.0L | V6 | N/A | TYC Radiator |
| 2002 | Lincoln | LS | 3.9L | V8 | N/A | TYC Radiator |
| 2001 | Lincoln | LS | 3.0L | V6 | N/A | TYC Radiator |
| 2001 | Lincoln | LS | 3.9L | V8 | N/A | TYC Radiator |
| 2000 | Lincoln | LS | 3.0L | V6 | N/A | TYC Radiator |
| 2000 | Lincoln | LS | 3.9L | V8 | N/A | TYC Radiator |
| No rows match your filter. | ||||||
