Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

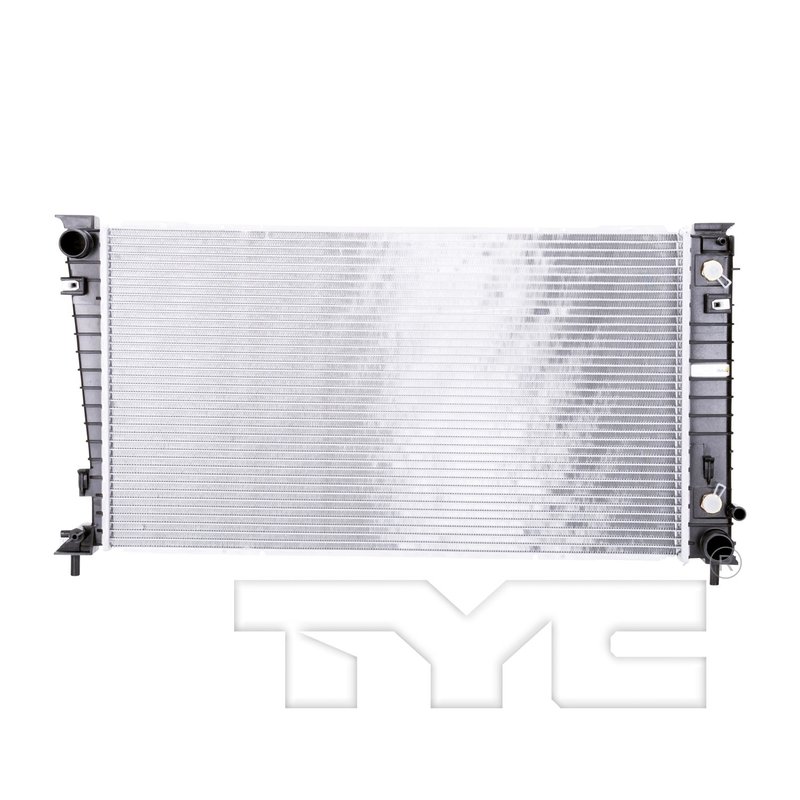

TYC 2258 Radiator
| Brand | TYC 2258 |
|---|---|
| Bottom Header | 3.14x17.29 |
| Core Height (in) | 16.81 |
| Core Length (in) | 29.92 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick Connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick Connect |
| Top Header | 1.97x17.28 |
| Total Fin Row Count | 39 |
| Total Tube Count | 38 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford and Mercury · 15 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Cross-references APDI 8012258, CSF 2996 and DENSO 221-9032 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford Freestar and Windstar
The TYC Radiator Part Number 2258 is a direct-fit cooling replacement for select Ford minivans, including the 1999-2003 Ford Windstar and 2004-2007 Ford Freestar. Built with an aluminum core and a crossflow design, it includes a transmission oil cooler to support vehicles equipped with automatic transmission cooling needs.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator design
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections
- 1.50 in inlet and outlet diameters
- Single-row core layout
- TYC Radiator Part Number 2258
Product Details
This TYC Radiator is built around a 16.81 in core height, 29.92 in core length, and 1.02 in core thickness, with a 26 x 2 tube width and height layout. The radiator uses aluminum core material, a crossflow flow configuration, and integrated transmission oil cooling with quick-connect TOC fittings. For buyers searching for a Ford Freestar radiator replacement or a Ford Windstar radiator replacement, TYC 2258 provides the core dimensions and connection style needed for the listed applications. This part cross-references Ford 6F2Z 8005 B for the same application.
Fitment
- Fits 2004-2007 Ford Freestar, N/A
- Fits 1999-2003 Ford Windstar, N/A
Common Issues This Part Can Address
- Leaking radiator tanks or seams
- Restricted coolant flow from an aging radiator core
- Transmission fluid temperature concerns tied to a failing cooler circuit
- Overheating caused by internal corrosion or clogged tubes
- Coolant loss from cracked or worn radiator connections
Installation Notes
Verify core dimensions, inlet and outlet diameter, and transmission cooler connection style before installation. Confirm hose clamp and quick-connect interfaces match the vehicle’s existing cooling system, and inspect hoses, clamps, and coolant condition during replacement. Flush the cooling system if contamination or debris is present before installing the new radiator.
Quality Assurance
TYC Radiator components are built for direct replacement use in the listed Ford Freestar and Ford Windstar applications. Confirm fitment by year, make, model, and connection style before installation.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | Freestar | Automatic | 3.9L | V6 | N/A | TYC Radiator |
| 2007 | Ford | Freestar | Automatic | 4.2L | V6 | N/A | TYC Radiator |
| 2006 | Ford | Freestar | Automatic | 4.2L | V6 | N/A | TYC Radiator |
| 2006 | Ford | Freestar | Automatic | 3.9L | V6 | N/A | TYC Radiator |
| 2005 | Ford | Freestar | Automatic | 3.9L | V6 | N/A | TYC Radiator |
| 2005 | Ford | Freestar | Automatic | 4.2L | V6 | N/A | TYC Radiator |
| 2004 | Ford | Freestar | Automatic | 3.9L | V6 | N/A | TYC Radiator |
| 2004 | Ford | Freestar | Automatic | 4.2L | V6 | N/A | TYC Radiator |
| 2003 | Ford | Windstar | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2002 | Ford | Windstar | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2001 | Ford | Windstar | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 2000 | Ford | Windstar | Automatic | 3.0L | V6 | N/A | TYC Radiator |
| 2000 | Ford | Windstar | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 1999 | Ford | Windstar | Automatic | 3.8L | V6 | N/A | TYC Radiator |
| 1999 | Ford | Windstar | Automatic | 3.0L | V6 | N/A | TYC Radiator |
