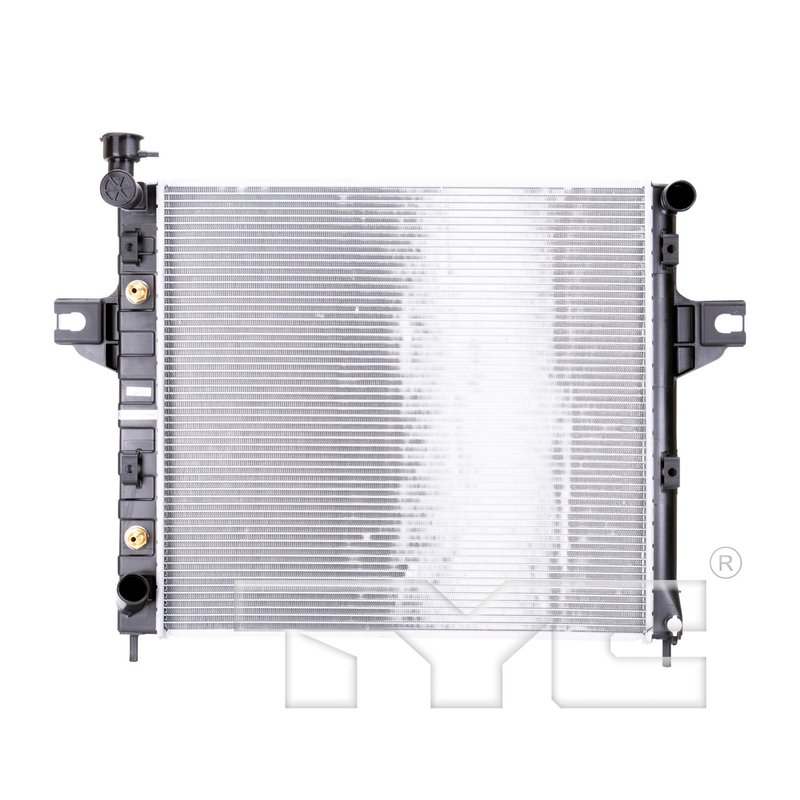

TYC 2262 Radiator
| Brand | TYC 2262 |
|---|---|
| Accessories Included | 2 TOC ADAPTORS, 11/16-16UNF, 1/2-20UNF |
| Bottom Header | 2.48x22.68 |
| Core Height (in) | 21.61 |
| Core Length (in) | 23.46 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 85 |
| Fin Wave Height (in) | 0.30 |
| Find Wave Pitch | 2.4 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 11/16-16UNF |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 11/16-16UNF |
| Toc Outlet Type | Adapter |
| Top Header | 2.48x22.68 |
| Total Fin Row Count | 58 |
| Total Tube Count | 57 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 11 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Jeep · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Engineered for steady coolant flow through the radiator.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid.
Cross-references APDI 8012262, Chrysler 52079428AD and CSF 2631 for the same application. See all 11.
TYC Radiator for Jeep Grand Cherokee
The TYC Radiator 2262 is a direct-fit cooling replacement for 1999-2004 Jeep Grand Cherokee models. Built with an aluminum core and a crossflow design, it includes a transmission oil cooler with plate-style construction to support automatic transmission cooling in the same assembly.
Key Features
- Fits 1999-2004 Jeep Grand Cherokee, N/A
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included with plate oil cooler design
- 1.50 in. hose clamp inlet and outlet connections
- Includes 2 TOC adaptors: 11/16-16UNF and 1/2-20UNF
- TYC Radiator 2262 for OE-style replacement applications
Product Details
TYC Radiator 2262 is engineered around the factory cooling layout for Jeep Grand Cherokee applications from 1999 through 2004. The aluminum core, single-row tube design, and crossflow flow configuration support consistent coolant circulation, while the integrated transmission oil cooler adds a separate fluid-cooling path for vehicles equipped with automatic transmission cooling. This part cross-references select OE and aftermarket numbers, including Chrysler 52079428AD and DENSO 221-9037, for the same application.
Common Cooling Issues This Radiator Addresses
- Cracked or leaking radiator tanks
- Restricted coolant flow from an aging core
- Transmission fluid temperature concerns tied to a failing cooler circuit
- Corrosion or wear in the original radiator assembly
- Overheating caused by reduced heat exchange efficiency
Installation Notes
Verify inlet and outlet hose diameter, transmission cooler adapter fitment, and core dimensions before installation. This radiator uses hose clamp inlet and outlet connections and includes transmission oil cooler adapters for the listed application. Confirm the vehicle’s cooling system is fully drained and flushed before replacing the radiator, and inspect hoses, clamps, and coolant condition during service.
Quality Assurance
TYC Radiator products are built as replacement cooling components for vehicle-specific applications, with fitment coverage for 1999-2004 Jeep Grand Cherokee models. Part number 2262 is listed with confirmed interchange references and application-specific dimensions for accurate replacement selection.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | Automatic | 4.0L | L6 | N/A | TYC Radiator |
| 2003 | Jeep | Grand Cherokee | Automatic | 4.0L | L6 | N/A | TYC Radiator |
| 2002 | Jeep | Grand Cherokee | Automatic | 4.0L | L6 | N/A | TYC Radiator |
| 2001 | Jeep | Grand Cherokee | Automatic | 4.0L | L6 | N/A | TYC Radiator |
| 2000 | Jeep | Grand Cherokee | Automatic | 4.0L | L6 | N/A | TYC Radiator |
| 1999 | Jeep | Grand Cherokee | Automatic | 4.0L | L6 | N/A | TYC Radiator |
