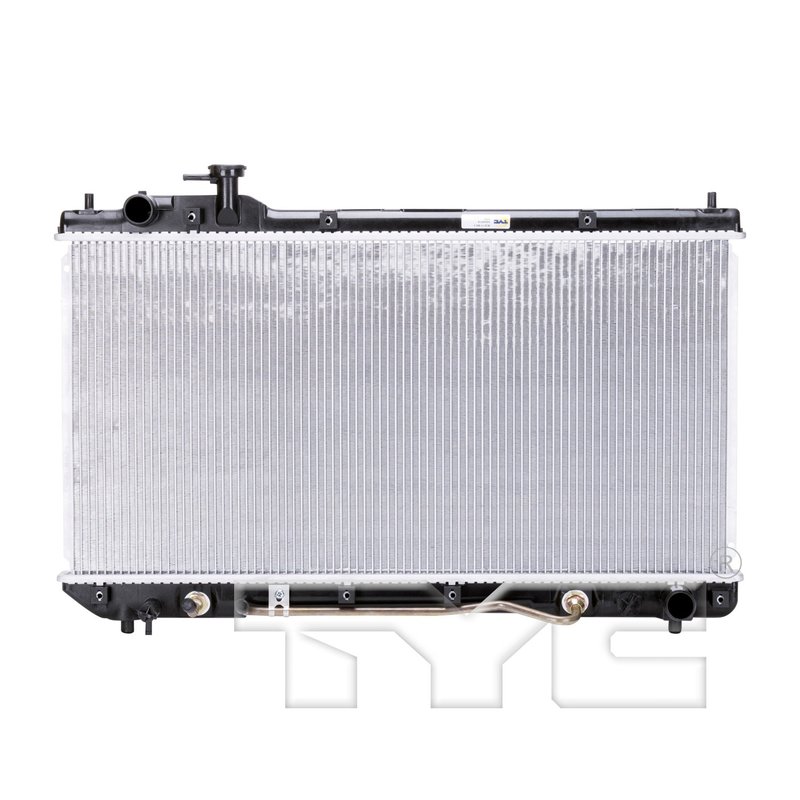

TYC 2292 Radiator
| Brand | TYC 2292 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.07x28.49 |
| Core Height (in) | 27.04 |
| Core Length (in) | 13.78 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 107 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 1.9 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.26 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.26 |
| Remarks | Also fit 2293 |
| Toc Distance (in) | 15.75 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.07x28.49 |
| Total Fin Row Count | 83 |
| Total Tube Count | 82 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Includes a transmission oil cooler for added cooling capacity.
Hose clamp connections. Simplifies installation with common inlet and outlet fittings.
Cross-references APDI 8012292, CSF 2592 and CSF 2624 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Toyota RAV4
The TYC Radiator 2292 is a direct-fit cooling replacement for select 1998-2000 Toyota RAV4 models. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core layout with 26 x 2 tube width and height
- Direct replacement for Toyota RAV4 radiator applications
- Cross-reference: Spectra Premium CU2292
Product Details
TYC Radiator 2292 is engineered for 1998-2000 Toyota RAV4 cooling system service and is also noted to fit 2293 applications. The radiator uses an aluminum core with a 27.04-inch core height, 13.78-inch core length, and 1.02-inch core thickness. It features 1.26-inch inlet and outlet diameters with hose clamp connections, plus a concentric transmission oil cooler with 0.39-inch tube fittings. For buyers searching for a 1998 Toyota RAV4 radiator, 1999 Toyota RAV4 radiator, or 2000 Toyota RAV4 radiator, this part number 2292 provides the specified fitment and cooling configuration.
Common Uses
- Replacing a leaking or corroded radiator
- Restoring coolant flow after internal blockage
- Addressing transmission cooler seepage at the radiator
- Correcting overheating caused by reduced heat exchange
- Replacing a damaged radiator on a Toyota RAV4 with automatic transmission cooling
Installation Notes
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler line connections before installation. Flush the cooling system, inspect hoses and clamps, and confirm the transmission cooler fittings are clean and properly seated. This radiator uses hose clamp connections at the inlet and outlet, so matching the existing plumbing is important for a secure installation. Confirm vehicle application against the part number 2292 and the listed Toyota RAV4 fitment before final assembly.
Quality Assurance
TYC Radiator components are built to match the listed application details and interchange references for service replacement use. This part cross-references Spectra Premium CU2292 for the same application.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Toyota | RAV4 | Automatic | 2.0L | L4 | N/A | Remarks: Also Fit 2293; TYC Radiator |
| 2000 | Toyota | RAV4 | Manual | 2.0L | L4 | N/A | Remarks: Also Fit 2293; TYC Radiator |
| 1999 | Toyota | RAV4 | Automatic | 2.0L | L4 | N/A | Remarks: Also Fit 2293; TYC Radiator |
| 1999 | Toyota | RAV4 | Manual | 2.0L | L4 | N/A | Remarks: Also Fit 2293; TYC Radiator |
| 1998 | Toyota | RAV4 | Automatic | 2.0L | L4 | N/A | Remarks: Also Fit 2293; TYC Radiator |
| 1998 | Toyota | RAV4 | Manual | 2.0L | L4 | N/A | Remarks: Also Fit 2293; TYC Radiator |
