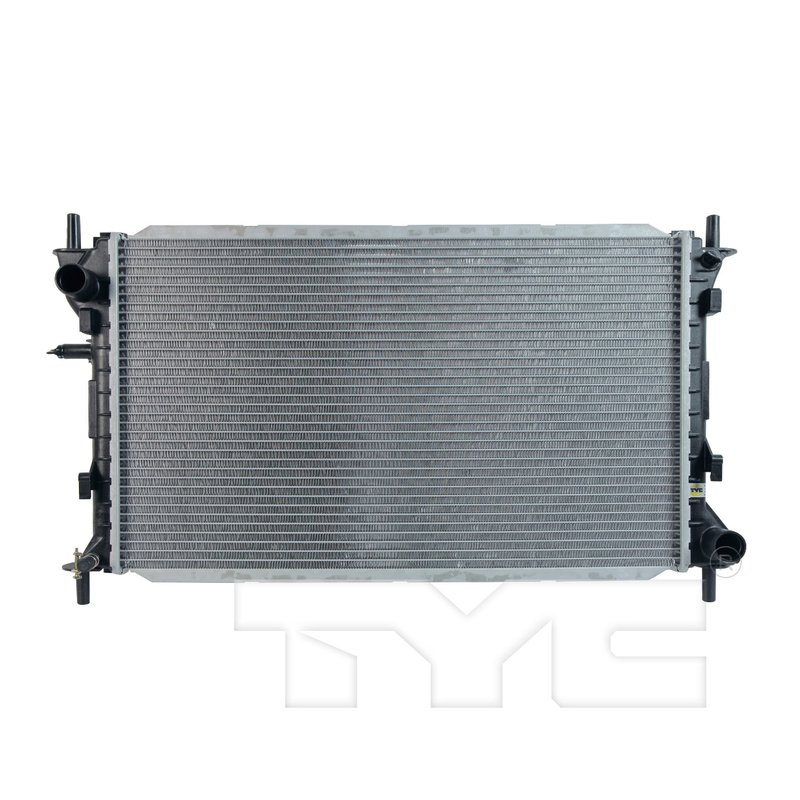

TYC 2296 Radiator
| Brand | TYC 2296 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.03x14.54 |
| Core Height (in) | 14.09 |
| Core Length (in) | 23.62 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.34 |
| Top Header | 2.03x14.54 |
| Total Fin Row Count | 36 |
| Total Tube Count | 35 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford · 5 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Hose clamp connections. Simple inlet and outlet attachment for a secure fit.
Cross-references APDI 8012296, CRS CUC2296 and DENSO 221-9073 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford Focus Cooling Repair
The TYC Radiator 2296 is a direct-fit aluminum radiator for 2000-2004 Ford Focus models with SOHC or DOHC engines. It uses a crossflow design with hose clamp inlet and outlet connections for a straightforward replacement in cooling system service.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow flow configuration
- Single-row design
- Inlet and outlet connections: 1.34 in. hose clamp
- Core dimensions: 23.62 in. length, 14.09 in. height, 1.02 in. thickness
- TYC Radiator 2296 for Ford Focus cooling system replacement
Product Details
TYC Radiator 2296 is built around an aluminum core with a 35-tube layout and 73 fins per 4 inches, supporting heat dissipation in everyday driving conditions. The crossflow configuration and matched header dimensions help maintain OE-style fitment for the 2000-2004 Ford Focus, while the hose clamp inlet and outlet connections simplify integration with the factory cooling hoses. This part cross-references Ford XS4Z 8005 A for the same application.
Common Cooling System Issues It Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted heat exchange
- Cracked tanks or weakened core seams
- Poor coolant circulation through an aging radiator
- Cooling performance loss in a high-mileage Ford Focus
Installation Notes and Tips
Verify hose diameter, mounting points, and transmission/oil cooler requirements before installation. This radiator does not include an engine oil cooler or transmission oil cooler. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation. Fits 2000-2004 Ford Focus, N/A.
Quality Assurance
TYC is a recognized aftermarket brand for replacement cooling components, and this radiator is built to match the listed application and dimensional specifications for the Ford Focus platform.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Ford | Focus | 2.0L | L4 | N/A | SOHC/DOHC; TYC Radiator |
| 2003 | Ford | Focus | 2.0L | L4 | N/A | SOHC/DOHC; TYC Radiator |
| 2002 | Ford | Focus | 2.0L | L4 | N/A | SOHC/DOHC; TYC Radiator |
| 2001 | Ford | Focus | 2.0L | L4 | N/A | SOHC/DOHC; TYC Radiator |
| 2000 | Ford | Focus | 2.0L | L4 | N/A | SOHC/DOHC; TYC Radiator |
