Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

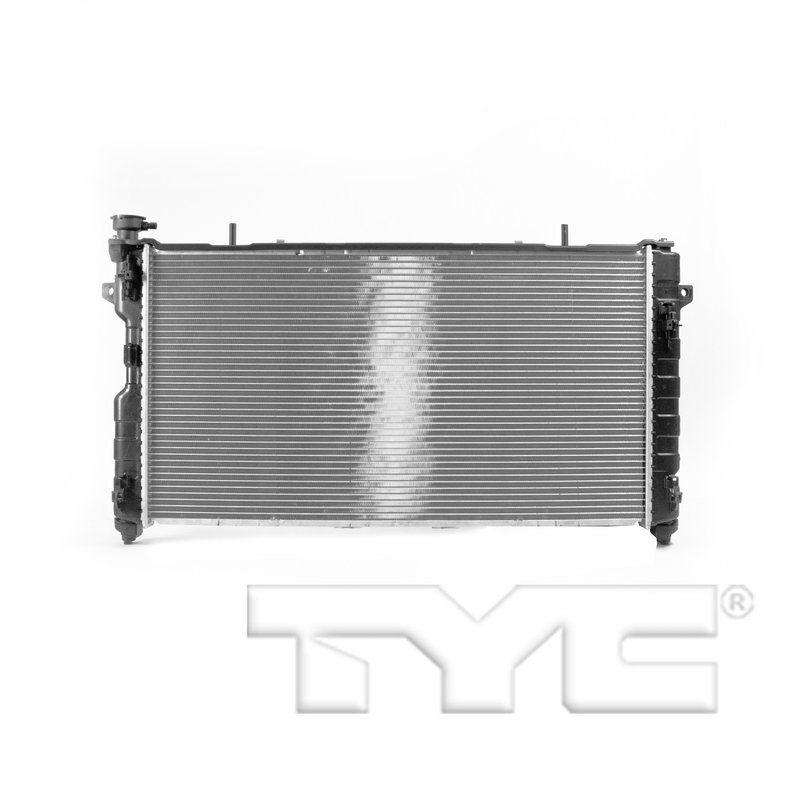

TYC 2311 Radiator
| Brand | TYC 2311 |
|---|---|
| Bottom Header | 2.5x17.19 |
| Core Height (in) | 16.06 |
| Core Length (in) | 30.31 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.50 |
| Top Header | 2.5x17.19 |
| Total Fin Row Count | 41 |
| Total Tube Count | 40 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Chrysler and Dodge · 24 vehicles |
Aluminum core. Lightweight construction helps shed heat efficiently.
Crossflow design. Promotes steady coolant movement through the radiator.
Hose clamp connections. Simple, secure hose attachment for a straightforward install.
Cross-references APDI 8012311, Chrysler 4809225AG and CSF 3110 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Chrysler and Dodge Cooling Repair
This TYC radiator, part number 2311, is a direct-fit cooling replacement for select Chrysler and Dodge minivans from 2001-2004. It uses an aluminum core and crossflow design to support consistent coolant flow in applications that rely on a hose-clamp inlet and outlet connection.
Key Features
- TYC Radiator line replacement for OE-style cooling service
- Aluminum core construction
- Crossflow flow configuration
- Single-row design with 40 total tubes
- Inlet and outlet connection type: hose clamp
- 1.50 in. inlet and outlet diameters
- Core dimensions: 16.06 in. height, 30.31 in. length, 1.02 in. thickness
- No engine oil cooler included
- No transmission oil cooler included
Product Details
The TYC Radiator 2311 is built for vehicles that need a replacement radiator with the same general layout and connection style as the original unit. Its aluminum core, crossflow configuration, and single-row tube design are matched to the cooling system requirements of 2001-2004 Chrysler Town & Country, 2001-2004 Chrysler Voyager, 2001-2004 Dodge Caravan, and 2001-2004 Dodge Grand Caravan. This part cross-references Chrysler 4809225AG and Spectra Premium CU2311 for the same application.
Compatible With 2001-2004 Chrysler Town & Country, N/A; 2001-2004 Chrysler Voyager, Primary; 2001-2004 Dodge Caravan, N/A; and 2001-2004 Dodge Grand Caravan, N/A. The TYC 2311 radiator is a practical choice when replacing a leaking, clogged, or damaged radiator in these minivan applications.
Common Cooling System Issues
- Coolant leaks from a cracked or corroded radiator core
- Overheating caused by restricted coolant flow
- Loss of cooling efficiency from damaged tubes or fins
- Failed radiator connections at the hose-clamp inlet or outlet
- Replacement need after impact damage or age-related wear
Installation Notes and Tips
Verify core dimensions, inlet and outlet diameter, and mounting layout before installation. Inspect hoses, clamps, and surrounding cooling components for wear, and flush the cooling system if contamination or debris is present. Confirm that the vehicle does not require an engine oil cooler or transmission oil cooler in the radiator assembly before ordering.
Quality Assurance
TYC manufactures replacement cooling components for service applications that require OE-style fit and function. Part number 2311 is built to match the listed vehicle applications and radiator specifications for straightforward replacement service.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2004 | Chrysler | Town & Country | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2004 | Chrysler | Town & Country | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2004 | Chrysler | Voyager | LX | Mini Passenger Van | 3.3L | V6 | Primary | TYC Radiator |
| 2004 | Dodge | Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2004 | Dodge | Grand Caravan | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2004 | Dodge | Grand Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2003 | Chrysler | Town & Country | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2003 | Chrysler | Town & Country | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2003 | Chrysler | Voyager | Base | Mini Passenger Van | 3.3L | V6 | Primary | TYC Radiator |
| 2003 | Dodge | Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2003 | Dodge | Grand Caravan | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2003 | Dodge | Grand Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2002 | Chrysler | Town & Country | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2002 | Chrysler | Town & Country | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2002 | Chrysler | Voyager | Base | Mini Passenger Van | 3.3L | V6 | Primary | TYC Radiator |
| 2002 | Dodge | Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2002 | Dodge | Grand Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2002 | Dodge | Grand Caravan | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2001 | Chrysler | Town & Country | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2001 | Chrysler | Town & Country | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2001 | Chrysler | Voyager | LX | Mini Passenger Van | 3.3L | V6 | Primary | TYC Radiator |
| 2001 | Dodge | Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
| 2001 | Dodge | Grand Caravan | — | — | 3.8L | V6 | N/A | TYC Radiator |
| 2001 | Dodge | Grand Caravan | — | — | 3.3L | V6 | N/A | TYC Radiator |
