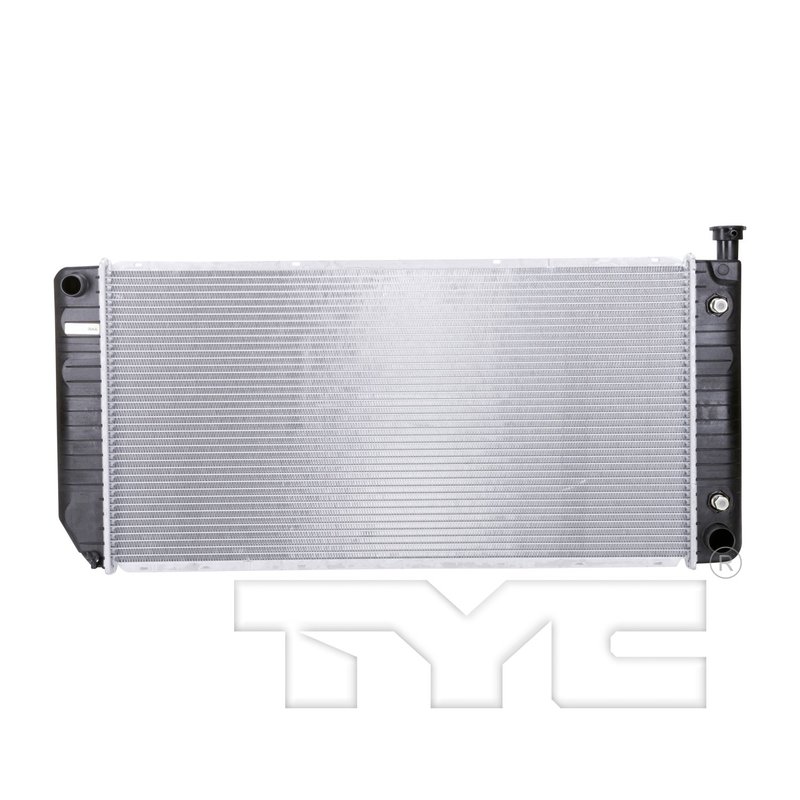

TYC 2317 Radiator

Overview of TYC Radiator 2317 for Cadillac, Chevrolet, GMC

The TYC Radiator 2317 is engineered to provide reliable cooling performance for select Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon models. Designed with durable aluminum core material and integrated transmission oil cooler, this radiator supports efficient engine operation under demanding conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 17.24 inches height, 34.02 inches length, and 1.02 inches thickness
• Single-row tube design with 39 tubes and 40 fin rows for balanced airflow
• Hose clamp inlet and outlet connections with diameters of 1.30 and 1.57 inches respectively
• Top and bottom headers sized at 3.16 by 18.5 inches

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering dependable cooling solutions tailored to specific vehicle applications. The TYC Radiator 2317 exemplifies this approach by integrating a plate oil cooler for transmission fluid, enhancing overall vehicle cooling system efficiency. This line emphasizes quality core materials and precise fitment to maintain OEM standards for Cadillac, Chevrolet, and GMC vehicles.

Technical Description and Specifications

This radiator features an aluminum core designed to efficiently transfer heat away from the engine coolant. The crossflow configuration promotes effective coolant flow across the core, improving thermal management. With a fin count of 51 every 4 inches and fin wave height of 0.35 inches, the radiator maximizes surface area for heat exchange. The integrated plate-type transmission oil cooler uses adapter inlet and outlet fittings sized 1/2-20UNF, supporting transmission fluid cooling without the need for a separate component. The radiator’s single-row tube design includes 39 tubes measuring 26 by 2 inches, contributing to balanced cooling performance. Hose clamp connections on both inlet and outlet ensure secure attachment to existing vehicle hoses.

Compatible Vehicles and Common Applications

• Replacement radiator for Cadillac Escalade models requiring part number 2317
• Cooling system upgrade or repair for Chevrolet Tahoe vehicles
• Suitable for GMC Yukon models needing a radiator with integrated transmission oil cooler
• Addresses overheating issues related to radiator core damage or clogging
• Resolves transmission fluid temperature concerns by providing dedicated cooling

Installation Notes and Tips

Ensure the radiator is compatible with your specific vehicle year and engine configuration before installation. Use appropriate hose clamps to secure inlet and outlet connections, verifying no leaks after installation. When replacing the radiator, inspect related cooling system components such as hoses and thermostat for wear. Properly bleed the cooling system to remove air pockets and maintain optimal coolant flow.

Quality Assurance and Warranty

TYC Radiator 2317 is manufactured to meet or exceed OEM specifications for fit, form, and function. The aluminum core construction and integrated transmission oil cooler are designed for durability and consistent performance. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship.
