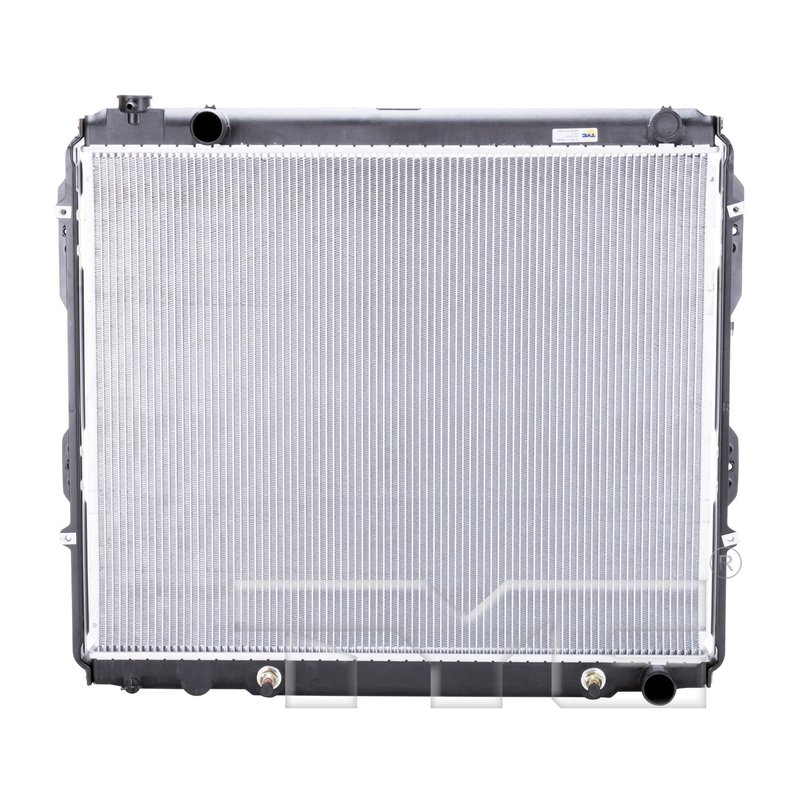

TYC 2321 Radiator
OE Quality 60-Day Returns
TYC
 TYC Radiator

TYC 2321 Radiator

Brand TYC 2321
Core Material Aluminum
Transmission Oil Cooler Included Yes
Transmission Oil Cooler Type Concentric oil cooler
Engine Oil Cooler Included No
Bottom Header 2.31x28.37
Core Height (in) 27.37
Core Length (in) 22.64
Core Thickness (in) 1.42
Fin Count (every 4") 78
Fin Wave Height (in) 0.25
Find Wave Pitch 2.6
Flow Configuration Downflow
Inlet Connection Type Hose clamp
Inlet Diameter (in) 1.50
No. Of Rows 1
Outlet Connection Type Hose clamp
Outlet Diameter (in) 1.50
Toc Distance (in) 14.76
Toc Inlet Diameter (in) 0.39
Toc Inlet Type Tube fitting
Toc Outlet Diameter (in) 0.39
Toc Outlet Type Tube fitting
Top Header 2.31x28.37
Total Fin Row Count 84
Total Tube Count 83
Tube Count (every 4") 12
Tube Width X Height 16x2
Product line TYC Radiator
Fits Toyota · 21 vehicles

Aluminum core. Lightweight construction helps promote efficient heat transfer.

Transmission oil cooler included. Adds integrated fluid cooling in one radiator assembly.

Downflow design. Supports straightforward coolant flow through the core.

Cross-references APDI 8012321, CSF 2731 and CSF 2831 for the same application. See all 14.

$164.56Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $164.56
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

TYC Radiator for Toyota Tundra

The TYC Radiator 2321 is a direct-fit cooling replacement for 2000-2006 Toyota Tundra applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one unit.

Key Features

  • Aluminum core construction for efficient heat transfer
  • Downflow radiator design
  • Transmission oil cooler included with concentric oil cooler type
  • Hose clamp inlet and outlet connections
  • 1.50 in. inlet and outlet diameters
  • Single-row core design with 27.37 in. core height, 22.64 in. core length, and 1.42 in. core thickness
  • Fits Toyota Tundra models from 2000 through 2006

Product Details

TYC 2321 is engineered for Toyota Tundra cooling system service where radiator replacement is needed and transmission fluid routing is part of the original setup. The aluminum core, 83 total tubes, and 84 total fin rows support heat dissipation, while the concentric transmission oil cooler integrates the fluid-cooling function into the radiator assembly. This part cross-references Spectra Premium CU2321 for the same application.

Common Repair Applications

  • Radiator leakage or coolant loss
  • Overheating during stop-and-go or towing use
  • Transmission fluid temperature concerns tied to the radiator cooler circuit
  • Corrosion or damage to the original Toyota Tundra radiator
  • Restricted cooling performance from an aging core

Installation Notes

Verify hose connection size, cooler line routing, and core dimensions before installation. This radiator uses hose clamp inlet and outlet connections with 1.50 in. ports, and the transmission cooler uses tube fitting connections. Confirm the vehicle’s cooling system is drained, flushed, and refilled with the correct coolant after replacement. Fits 2000-2006 Toyota Tundra, N/A.

Quality Assurance

TYC Radiator components are built to match the listed application and specifications for service replacement use. Confirm part number 2321 against the original radiator and cooler layout before installation to ensure proper fitment on your Toyota Tundra.

Related reading

This part fits 21 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelBody TypeLitersCylindersPositionNotes
2006ToyotaTundraLimitedExtended Cab Pickup4.7LV8N/ATYC Radiator
2006ToyotaTundraBaseStandard Cab Pickup4.7LV8N/ATYC Radiator
2006ToyotaTundraSR5Extended Cab Pickup4.7LV8N/ATYC Radiator
2005ToyotaTundraSR5Extended Cab Pickup4.7LV8N/ATYC Radiator
2005ToyotaTundraBaseStandard Cab Pickup4.7LV8N/ATYC Radiator
2005ToyotaTundraLimitedExtended Cab Pickup4.7LV8N/ATYC Radiator
2004ToyotaTundraSR5Extended Cab Pickup4.7LV8N/ATYC Radiator
2004ToyotaTundraLimitedExtended Cab Pickup4.7LV8N/ATYC Radiator
2004ToyotaTundraSR5Standard Cab Pickup4.7LV8N/ATYC Radiator
2003ToyotaTundraSR5Extended Cab Pickup4.7LV8N/ATYC Radiator
2003ToyotaTundraSR5Standard Cab Pickup4.7LV8N/ATYC Radiator
2003ToyotaTundraLimitedExtended Cab Pickup4.7LV8N/ATYC Radiator
2002ToyotaTundraSR5Standard Cab Pickup4.7LV8N/ATYC Radiator
2002ToyotaTundraSR5Extended Cab Pickup4.7LV8N/ATYC Radiator
2002ToyotaTundraLimitedExtended Cab Pickup4.7LV8N/ATYC Radiator
2001ToyotaTundraLimitedExtended Cab Pickup4.7LV8N/ATYC Radiator
2001ToyotaTundraSR5Standard Cab Pickup4.7LV8N/ATYC Radiator
2001ToyotaTundraSR5Extended Cab Pickup4.7LV8N/ATYC Radiator
2000ToyotaTundraSR5Standard Cab Pickup4.7LV8N/ATYC Radiator
2000ToyotaTundraSR5Extended Cab Pickup4.7LV8N/ATYC Radiator
2000ToyotaTundraLimitedExtended Cab Pickup4.7LV8N/ATYC Radiator
Directly replaces or cross-references 14 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
APDI — 8012321CSF — 2731CSF — 2831DENSO — 221-0517Partslink — TO3010187Partslink — TO3010299Silla Cooling — 7299Spectra Premium — CU2321Toyota — 16400-0F020Toyota — 16410-AZ018TYC — TY37075AVista Pro — 431485Vista Pro — 432440Visteon — 9724
