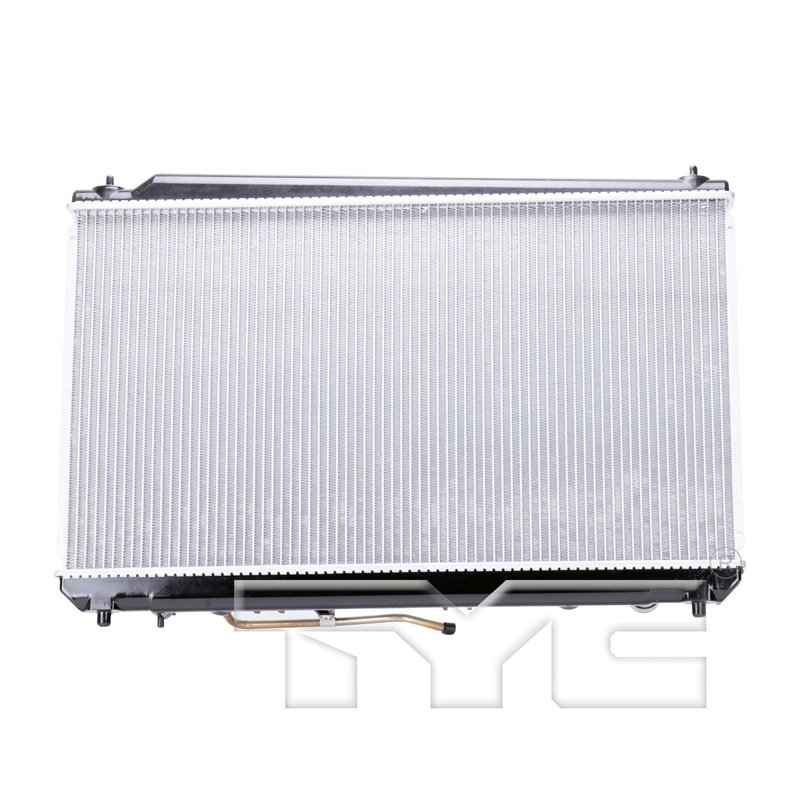

TYC 2324 Radiator
| Brand | TYC 2324 |
|---|---|
| Bottom Header | 2.01x29.13 |
| Core Height (in) | 28.27 |
| Core Length (in) | 15.75 |
| Core Material | Aluminum |
| Core Thickness (in) | 0.63 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.01x29.13 |
| Total Fin Row Count | 72 |
| Total Tube Count | 71 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 5 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler. Includes a transmission oil cooler integrated into the radiator.
Downflow design. Engineered for straightforward coolant flow through the core.
Cross-references APDI 8012324, CSF 2816 and DENSO 221-0513 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Toyota Avalon
TYC Radiator part number 2324 is a direct-fit cooling system replacement for 2000-2004 Toyota Avalon models. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support automatic transmission cooling in the same radiator assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with concentric oil cooler design
- Hose clamp inlet and outlet connections
- Single-row core layout with 71 tubes and 72 fin rows
- Fits Toyota Avalon applications listed for 2000, 2001, 2002, 2003, and 2004
Product Details
This TYC Radiator 2324 is built around the listed OE-style dimensions, including a 28.27-inch core height, 15.75-inch core length, and 0.63-inch core thickness. The radiator uses 1.38-inch inlet and outlet diameters and a tube-fitting transmission oil cooler connection with 0.39-inch inlet and outlet diameters. For buyers searching for a 2000-2004 Toyota Avalon radiator or a Toyota Avalon radiator with transmission cooler, this part matches the specified vehicle fitment and cooling layout.
This part cross-references Toyota 16400-0A170 and 16410-YZZAP for the same application.
Common Issues This Radiator Can Address
- Engine overheating caused by a leaking or restricted radiator
- Transmission fluid temperature concerns tied to a failing integrated cooler
- Coolant loss from cracked tanks, damaged tubes, or worn seams
- Reduced cooling performance from clogged fins or internal blockage
- Fitment problems when replacing the original Toyota Avalon radiator
Installation Notes
Verify hose clamp connection sizes, cooler line routing, and overall core dimensions before installation. Flush the cooling system and inspect hoses, clamps, and the thermostat before installing the replacement radiator. Confirm automatic transmission cooler line compatibility on 2000-2004 Toyota Avalon applications prior to final assembly.
Quality Assurance
TYC Radiator components are built to match the listed application details and dimensional requirements for a direct replacement approach. Part number 2324 is specified for 2000-2004 Toyota Avalon models with the noted radiator and transmission cooler configuration.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A17; TYC Radiator |
| 2003 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A17; TYC Radiator |
| 2002 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A17; TYC Radiator |
| 2001 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A17; TYC Radiator |
| 2000 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A17; TYC Radiator |
