Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

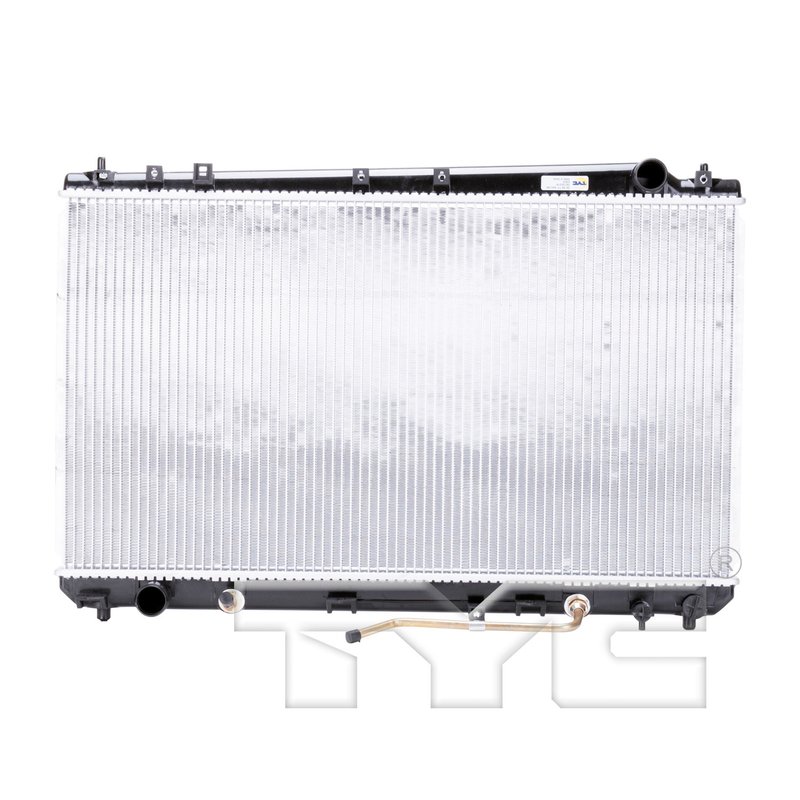

TYC 2325 Radiator
| Brand | TYC 2325 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.01x29.13 |
| Core Height (in) | 28.27 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.01x29.13 |
| Total Fin Row Count | 72 |
| Total Tube Count | 71 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 5 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for automatic transmission fluid.
Downflow design. Engineered for straightforward coolant flow through the radiator.
Cross-references APDI 8012325, CSF 2732 and DENSO 221-0512 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Toyota Avalon
The TYC Radiator 2325 is a direct-fit cooling replacement for select 2000-2004 Toyota Avalon models. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler to support engine cooling and automatic transmission fluid temperature control in one assembly.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow radiator design
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Single-row core layout with 1.02 in. core thickness
- Fits 2000-2004 Toyota Avalon, N/A
- TYC Radiator 2325 for OE-style replacement fitment
Product Details
TYC Radiator 2325 is engineered for the 2000-2004 Toyota Avalon and matches the application with a core height of 28.27 in., core length of 15.75 in., and inlet and outlet diameters of 1.38 in. The radiator uses an aluminum core, a downflow flow configuration, and a concentric transmission oil cooler with tube-fitting connections. This part cross-references DENSO 221-0512 and Spectra Premium CU2325 for the same application.
What This Radiator Helps Address
- Engine overheating caused by a worn or leaking radiator
- Transmission fluid temperature issues related to a failing cooler circuit
- Coolant loss from cracked tanks, corroded tubes, or damaged seams
- Reduced cooling performance from restricted airflow through the core
- Fitment concerns when replacing the original Toyota Avalon radiator
Installation Notes and Tips
Fits 2000-2004 Toyota Avalon, N/A. Verify hose routing, inlet and outlet sizes, and transmission cooler line connections before installation. Flush the cooling system, inspect hoses and clamps, and confirm the radiator mounts and header dimensions match the original unit. This part is listed for Toyota Avalon applications marked 0A18.
Quality Assurance
TYC Radiator 2325 is built as a replacement radiator for the specified Toyota Avalon applications and is listed with OE interchange references including Toyota 16400-0A180 and 16410-YZZAN.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A18; TYC Radiator |
| 2003 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A18; TYC Radiator |
| 2002 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A18; TYC Radiator |
| 2001 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A18; TYC Radiator |
| 2000 | Toyota | Avalon | Automatic | 3.0L | V6 | N/A | Marked 0A18; TYC Radiator |
| No rows match your filter. | |||||||
