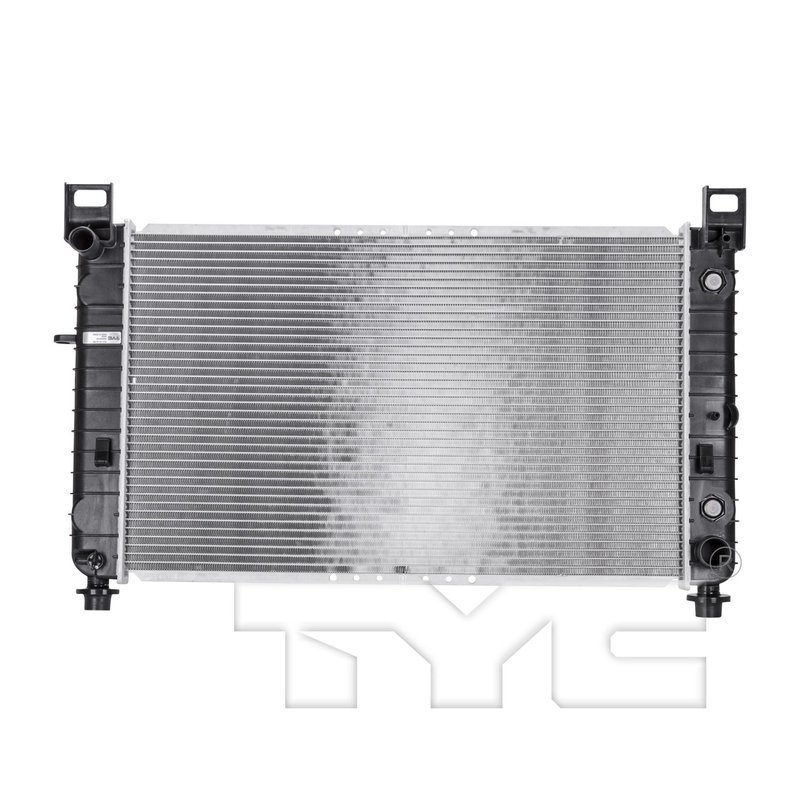

TYC 2334 Radiator - Front
Overview of TYC Radiator 2334 for GM Trucks and SUVs
The TYC Radiator part number 2334 is engineered for reliable cooling performance in select Cadillac, Chevrolet, and GMC vehicles. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine and transmission temperature management for models like the Chevrolet Silverado 1500 and GMC Sierra 2500.
- Durable aluminum core construction
- Includes plate-type transmission oil cooler
- Core dimensions: 28.27" length x 17.24" height x 1.02" thickness
- Crossflow design with 39 tubes and 68 fins per 4 inches
- Hose clamp inlet (1.30" diameter) and outlet (1.57" diameter)
- Includes 2 transmission oil cooler adapters and 1 hose clamp
TYC Radiator Product Line Details
The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. This product line emphasizes durable materials and precise fitment for specific vehicle applications. The TYC Radiator 2334 exemplifies this approach by combining a robust aluminum core with an integrated plate oil cooler, tailored for heavy-duty use in full-size trucks and SUVs.
Technical Specifications and Features
This radiator features a single-row core with a crossflow configuration, measuring 28.27 inches in length, 17.24 inches in height, and 1.02 inches in thickness. The aluminum core includes 39 tubes arranged in 10 tubes per 4 inches and 68 fins per 4 inches, optimizing heat dissipation. The fin wave height is 0.35 inches with a wave pitch of 3, enhancing airflow efficiency. Both the top and bottom headers measure 2.43 by 18.73 inches. The radiator also incorporates a plate-type transmission oil cooler with a 11.50-inch distance between cooler connections, supporting transmission fluid cooling without an engine oil cooler.
Compatible Vehicles and Applications
- Cadillac Escalade
- Chevrolet Silverado 1500 and 2500
- Chevrolet Suburban 1500
- GMC Sierra 1500 and 2500
- GMC Yukon and Yukon XL 1500
- Chevrolet Tahoe
This radiator is designed specifically for these models, ensuring proper fit and function when replacing the original cooling system component.
Common Issues Addressed by TYC Radiator 2334
- Overheating due to radiator core damage or clogging
- Transmission fluid overheating from inefficient cooling
- Leaks or corrosion in the radiator core or headers
- Reduced cooling performance from worn or damaged fins
- Compatibility issues with OEM transmission oil cooler connections
Installation Notes and Tips
Before installation, verify core size compatibility as this radiator measures approximately 28.5 inches in core length without the transmission oil cooler. The radiator uses hose clamp connections for both inlet and outlet, with diameters of 1.30 inches and 1.57 inches respectively. Included accessories such as two transmission oil cooler adapters (5/8-18UNF x 21) and one blue hose clamp facilitate proper connection. Ensure the cooling system is properly flushed and free of debris prior to installation to maximize radiator performance.
Quality Assurance and Warranty
TYC Radiator products are manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated plate oil cooler are designed for long service life under normal operating conditions. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
| Brand | TYC |
| Part Number | 2334 |
| Position | TYC Radiator, Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Accessories Included | 2 x toc adapters (5/8-18unf x21), 1 x toc hose clamp (blue) |
| Bottom Header | 2.43x18.73 |
| Core Height (in) | 17.24 |
| Core Length (in) | 28.27 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 68 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.30 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.57 |
| Remarks | W/o eoc measure core size prior to ordering (28.5 inch core) |
| Toc Distance (in) | 11.50 |
| Top Header | 2.43x18.73 |
| Total Fin Row Count | 40 |
| Total Tube Count | 39 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
This part fits 80 vehicles. Search below:
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Chevrolet | Suburban 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2006 | GMC | Sierra 1500 | Automatic | 4.8L | V8 | Front | w/ 28-1/4 inch Core Width; TYC Radiator | |
| 2006 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | w/ 28-1/4 inch Core Width; TYC Radiator | |
| 2006 | GMC | Yukon XL 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2005 | Cadillac | Escalade | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2005 | Chevrolet | Suburban 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2005 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | w/ 28-1/4 inch Core Width; TYC Radiator | |
| 2005 | GMC | Sierra 1500 | Automatic | 4.8L | V8 | Front | w/ 28-1/4 inch Core Width; TYC Radiator | |
| 2005 | GMC | Yukon XL 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | Cadillac | Escalade | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | Chevrolet | Silverado 1500 | Automatic | 4.8L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2004 | Chevrolet | Silverado 1500 | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | Chevrolet | Silverado 2500 | Automatic | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2004 | Chevrolet | Suburban 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | Chevrolet | Tahoe | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | Chevrolet | Tahoe | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | w/ 28-1/4 inch Core Width; TYC Radiator | |
| 2004 | GMC | Sierra 2500 | SLE | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |||
| 2004 | GMC | Sierra 2500 | WT | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |||
| 2004 | GMC | Sierra 2500 | SLT | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |||
| 2004 | GMC | Yukon | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | GMC | Yukon | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2004 | GMC | Yukon XL 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | Cadillac | Escalade | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | Chevrolet | Silverado 1500 | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | Chevrolet | Silverado 1500 | Automatic | 4.8L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2003 | Chevrolet | Silverado 2500 | Automatic | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2003 | Chevrolet | Suburban 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | Chevrolet | Tahoe | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | Chevrolet | Tahoe | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | GMC | Sierra 1500 | Automatic | 4.8L | V8 | Front | w/o EOC; TYC Radiator | |
| 2003 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | w/ 28-1/4 inch Core Width; TYC Radiator | |
| 2003 | GMC | Yukon | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | GMC | Yukon | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2003 | GMC | Yukon XL 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | Cadillac | Escalade | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | Chevrolet | Silverado 1500 | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | Chevrolet | Silverado 1500 | Automatic | 4.8L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2002 | Chevrolet | Silverado 2500 | Automatic | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2002 | Chevrolet | Suburban 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | Chevrolet | Tahoe | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | Chevrolet | Tahoe | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | w/ 28-1/4 inch Core Width; TYC Radiator | |
| 2002 | GMC | Sierra 1500 | Automatic | 4.8L | V8 | Front | w/o EOC; TYC Radiator | |
| 2002 | GMC | Yukon | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | GMC | Yukon | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2002 | GMC | Yukon XL 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2001 | Chevrolet | Silverado 1500 | Automatic | 4.8L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2001 | Chevrolet | Silverado 1500 | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2001 | Chevrolet | Silverado 2500 | Automatic | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2001 | Chevrolet | Suburban 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2001 | Chevrolet | Tahoe | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2001 | Chevrolet | Tahoe | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2001 | GMC | Sierra 1500 | Automatic | 4.8L | V8 | Front | TYC Radiator | |
| 2001 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | TYC Radiator | |
| 2001 | GMC | Yukon | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2001 | GMC | Yukon | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2001 | GMC | Yukon XL 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2000 | Chevrolet | Silverado 1500 | Automatic | 4.8L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2000 | Chevrolet | Silverado 1500 | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2000 | Chevrolet | Silverado 2500 | Automatic | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2000 | Chevrolet | Suburban 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2000 | Chevrolet | Tahoe | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2000 | Chevrolet | Tahoe | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2000 | GMC | Sierra 1500 | Automatic | 4.8L | V8 | Front | TYC Radiator | |
| 2000 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | TYC Radiator | |
| 2000 | GMC | Sierra 2500 | SLT | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2000 | GMC | Sierra 2500 | SL | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2000 | GMC | Sierra 2500 | SLE | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 2000 | GMC | Yukon | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2000 | GMC | Yukon | 4.8L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 2000 | GMC | Yukon XL 1500 | 5.3L | V8 | N/A | w/o Rear A/C; w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 1999 | Chevrolet | Silverado 1500 | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | ||
| 1999 | Chevrolet | Silverado 1500 | Automatic | 4.8L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 1999 | Chevrolet | Silverado 2500 | Automatic | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 1999 | GMC | Sierra 1500 | Automatic | 5.3L | V8 | Front | TYC Radiator | |
| 1999 | GMC | Sierra 1500 | Automatic | 4.8L | V8 | Front | TYC Radiator | |
| 1999 | GMC | Sierra 2500 | SL | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 1999 | GMC | Sierra 2500 | SLT | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator | |
| 1999 | GMC | Sierra 2500 | SLE | 5.3L | V8 | N/A | w/ 28-1/2 inch Core Width; TYC Radiator |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
