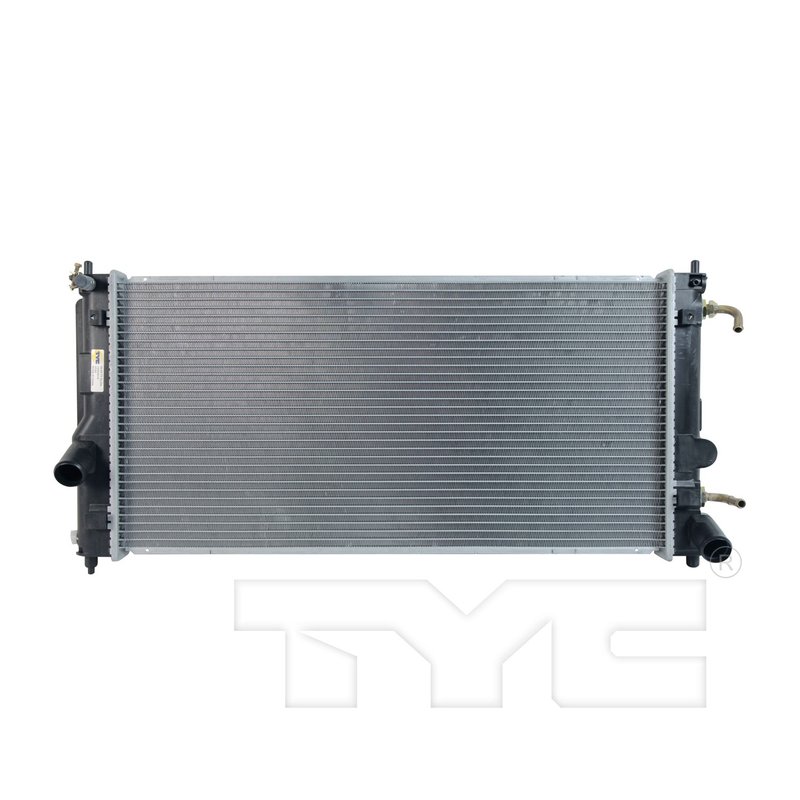

TYC 2335 Radiator

Overview of TYC Radiator 2335 for Toyota Celica

The TYC Radiator 2335 is engineered specifically for Toyota Celica models, providing reliable cooling performance. Constructed with an aluminum core and featuring a concentric transmission oil cooler, this radiator supports efficient engine temperature management.

• Core material: durable aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for integrated cooling
• Core dimensions: 12.52 inches height, 25.59 inches length, 0.63 inches thickness
• Crossflow design with 31 tubes and 73 fins per 4 inches for optimized airflow
• Hose clamp inlet and outlet connections with 1.34-inch diameter
• Single-row tube configuration with 32 total fin rows

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. The TYC Radiator 2335 integrates advanced features such as a concentric transmission oil cooler, enhancing the cooling system's efficiency for Toyota Celica vehicles. This product line emphasizes durability and precise fitment to maintain vehicle performance and reliability.

Technical Specifications and Features

This radiator features a crossflow flow configuration that promotes efficient coolant circulation across the aluminum core. The core consists of 31 tubes arranged in a single row, measuring 16 by 2 inches each, and is supported by 73 fins every 4 inches with a fin wave height of 0.31 inches and a pitch of 2.8 inches. Both the top and bottom headers measure 2.03 by 13.65 inches, ensuring structural integrity. The radiator includes a concentric transmission oil cooler with tube fittings sized at 0.39 inches for both inlet and outlet, facilitating integrated transmission fluid cooling. Hose clamp connections with 1.34-inch diameters on both inlet and outlet ports provide secure attachment points for coolant hoses.

Applications and Problem Solving

• Compatible with Toyota Celica models requiring radiator replacement
• Addresses overheating issues caused by inefficient or damaged radiators
• Resolves transmission fluid temperature regulation problems with integrated oil cooler
• Prevents coolant leaks and maintains proper engine temperature
• Supports restoration of cooling system performance after radiator core damage

Installation Notes and Tips

Ensure all coolant and transmission fluid lines are properly drained before removal. Verify hose clamp sizes and connection types match the vehicle’s specifications. Handle the aluminum core carefully to avoid damage to fins and tubes during installation. Confirm the concentric transmission oil cooler fittings are securely connected to prevent leaks. It is recommended to inspect and replace any worn hoses or clamps during installation for optimal performance.

Quality Assurance and Warranty

The TYC Radiator 2335 is manufactured to meet stringent quality standards, ensuring durability and reliable performance for Toyota Celica vehicles. While specific warranty details are not provided, TYC products typically adhere to industry standards for replacement radiators, offering confidence in material and workmanship.
