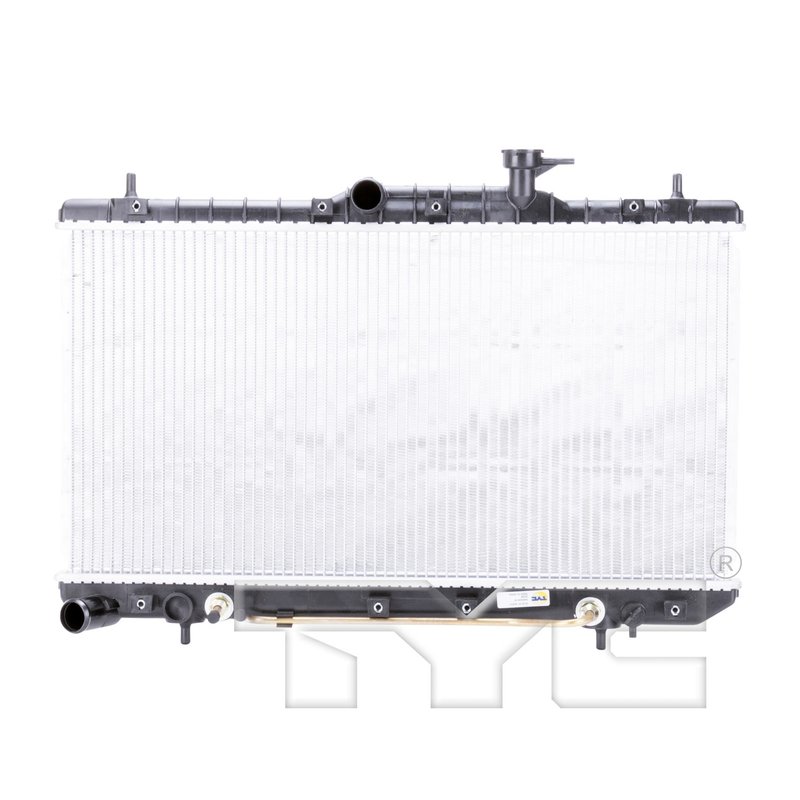

TYC 2338 Radiator

Overview of the TYC Radiator 2338 for Hyundai Accent

The TYC Radiator 2338 is engineered to provide reliable cooling performance for Hyundai Accent vehicles. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature regulation and transmission fluid cooling.

• Core material constructed from durable aluminum for effective heat dissipation
• Includes a concentric transmission oil cooler for enhanced transmission fluid cooling
• Downflow core design with dimensions: 25.12 inches height, 13.19 inches length, and 0.63 inches thickness
• Single-row tube configuration with 63 tubes and 64 fin rows for optimized airflow
• Hose clamp inlet and outlet connections with 1.30-inch diameter for secure fitment

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components that meet or exceed OEM specifications. This line emphasizes durable materials and precise fitment, ensuring compatibility with specific vehicle models such as the Hyundai Accent. The TYC Radiator 2338 exemplifies this approach by integrating a concentric transmission oil cooler within a robust aluminum core design.

Technical Description and Specifications

This radiator features a downflow flow configuration, which directs coolant downward through the core for efficient heat exchange. The aluminum core measures 25.12 inches in height, 13.19 inches in length, and 0.63 inches in thickness, providing a balance of cooling surface area and compact size. The core includes 63 tubes arranged in a single row, paired with 64 fin rows spaced every 4 inches to maximize airflow and heat dissipation. The fin wave height is 0.31 inches with a pitch of 3.2 inches, contributing to effective thermal management.

Inlet and outlet connections utilize hose clamps with a diameter of 1.30 inches, ensuring secure attachment to the vehicle's cooling system. The radiator also incorporates a concentric transmission oil cooler with tube fittings of 0.31 inches diameter for both inlet and outlet, supporting transmission fluid temperature control without the need for a separate cooler.

Applications and Problem Resolution

• Replaces faulty or leaking radiator in Hyundai Accent models
• Addresses overheating issues caused by inefficient heat dissipation
• Resolves transmission fluid overheating through integrated oil cooler
• Eliminates coolant leaks from damaged or corroded radiator cores
• Improves overall engine cooling system reliability and performance

Installation Notes and Tips

Ensure compatibility with Hyundai Accent model year before installation. Use appropriate hose clamps for inlet and outlet connections sized at 1.30 inches. Verify that the transmission oil cooler fittings align correctly with existing transmission lines. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal coolant flow.

Quality Assurance and Warranty

The TYC Radiator 2338 is manufactured to meet industry standards for durability and performance. Constructed with an aluminum core and integrated transmission oil cooler, it undergoes quality control to ensure reliable operation. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
