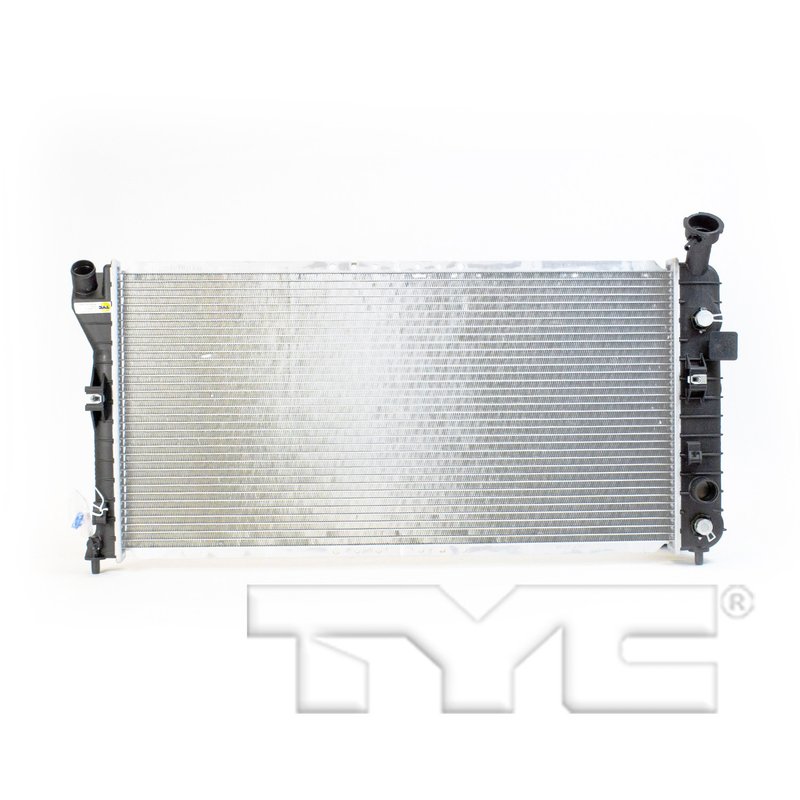

TYC 2343 Radiator

Overview of the TYC Radiator 2343 for Buick and Chevrolet Models

The TYC Radiator part number 2343 is engineered to provide reliable cooling performance for select Buick and Chevrolet vehicles. Designed specifically for models such as the Buick Century, Regal, and Chevrolet Impala and Monte Carlo, this radiator ensures efficient engine temperature management and transmission oil cooling.

• Core constructed from durable aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for integrated cooling
• Equipped with brass quick disconnect fittings and sensor plug for easy installation
• Crossflow design with 1-row tube configuration for optimized coolant flow
• Hose clamp inlet and outlet connections with 1.30-inch diameter
• Core dimensions: 15.08 inches height, 30.51 inches length, 0.63 inches thickness
• Fin count of 73 every 4 inches and total fin rows of 35 for enhanced cooling efficiency

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. This product line emphasizes durable materials such as aluminum cores and includes necessary accessories like quick disconnects and sensor plugs to facilitate installation. The TYC Radiator 2343 is part of this line, offering a balance of performance and compatibility for specific Buick and Chevrolet models.

Technical Description and Features

This radiator features a crossflow core design with a single row of tubes measuring 16 by 2 inches, allowing for efficient coolant circulation. The aluminum core material supports rapid heat transfer, while the 73 fins per 4 inches and 35 total fin rows increase surface area for better cooling. The integrated plate-type transmission oil cooler uses quick connect fittings with a 0.37-inch diameter inlet and outlet, ensuring effective transmission fluid temperature control. Both inlet and outlet connections utilize hose clamps with a 1.30-inch diameter, compatible with factory hoses. Included accessories such as brass quick disconnects and a sensor plug (pi-1139) simplify installation and sensor integration.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Buick Century, Regal, Chevrolet Impala, and Monte Carlo
• Resolves overheating caused by inefficient heat dissipation
• Addresses transmission fluid overheating with integrated oil cooler
• Fixes coolant leaks due to worn or corroded radiator cores
• Improves engine cooling system reliability and performance

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use included brass quick disconnect fittings for transmission oil cooler connections
• Check hose clamp sizes (1.30 inches) for inlet and outlet connections
• Verify sensor plug compatibility with vehicle sensor harness
• Flush cooling system prior to installation to prevent contamination

Quality Assurance and Warranty

The TYC Radiator 2343 is manufactured to meet industry standards for durability and performance. The aluminum core construction and included accessories support long-term reliability. While specific warranty details are not provided, TYC products typically come with a limited warranty covering defects in materials and workmanship. It is recommended to consult the product documentation or manufacturer for exact warranty terms.
