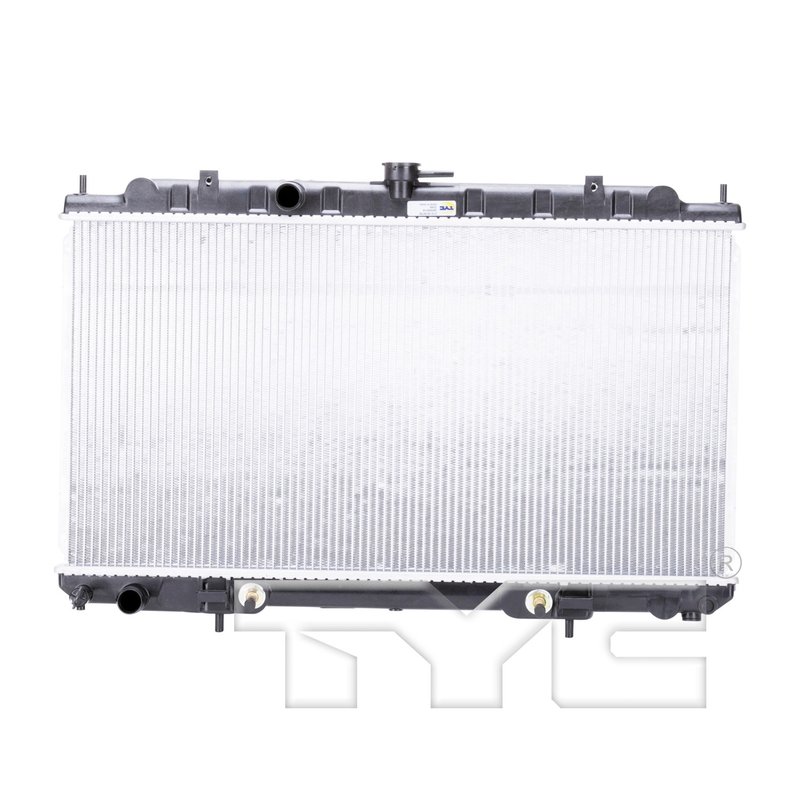

TYC 2346 Radiator
| Brand | TYC 2346 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.96x28.21 |
| Core Height (in) | 27.04 |
| Core Length (in) | 14.17 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.10 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.10 |
| Toc Distance (in) | 11.81 |
| Top Header | 1.96x28.21 |
| Total Fin Row Count | 83 |
| Total Tube Count | 82 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Nissan · 15 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler included. Adds transmission fluid cooling in one integrated unit.
Hose clamp connections. Simplifies hose attachment for a straightforward install.
Cross-references APDI 8012346, CSF 2697 and CSF 2908 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Nissan Sentra
The TYC Radiator 2346 is a direct-fit cooling replacement for 2000-2006 Nissan Sentra applications. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections
- Core dimensions: 27.04 in. height, 14.17 in. length, 0.63 in. thickness
- Fits Nissan Sentra models from 2000 through 2006
- TYC Radiator 2346 cross-references Spectra Premium CU2346 and DENSO 221-3405 for the same application
Detailed Description
TYC 2346 is a radiator assembly for Nissan Sentra cooling system service, engineered around the listed OE-style dimensions and connection points. The aluminum core, single-row layout, and integrated transmission oil cooler support factory-style replacement needs on 2000-2006 Nissan Sentra vehicles. This part number is also referenced in the aftermarket under TYC Radiator 2346, making it easier to match against common interchange listings during radiator replacement.
Compatible With 2000-2006 Nissan Sentra, N/A. The radiator uses 1.10 in. inlet and outlet diameters with hose clamp connections, and the listed top and bottom header dimensions help confirm fitment during comparison to the original unit. For buyers searching for a Nissan Sentra radiator replacement, TYC 2346 provides the key cooling-system specifications needed for a proper match.
Common Problems This Part Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted or inefficient heat exchange
- Transmission fluid cooling concerns when the radiator cooler is part of the circuit
- Physical damage to the core, tanks, or header areas
- Fitment issues when replacing an aging Nissan Sentra radiator
Installation Notes and Tips
Verify core dimensions, inlet and outlet diameter, and transmission cooler style against the original radiator before installation. Confirm that the vehicle uses the listed hose clamp connection style and compare the existing cooler routing to the concentric oil cooler layout. After installation, refill the cooling system with the correct coolant, bleed air from the system, and inspect for leaks at all hose and cooler connections.
Quality Assurance
TYC manufactures replacement cooling components with OE-style fitment targets and application-specific specifications. This radiator is listed with confirmed fitment for 2000-2006 Nissan Sentra models and includes the transmission oil cooler configuration noted in the product data.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | Base | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2006 | Nissan | Sentra | S | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2005 | Nissan | Sentra | S | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2005 | Nissan | Sentra | Base | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2004 | Nissan | Sentra | S | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2004 | Nissan | Sentra | Base | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2003 | Nissan | Sentra | GXE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2003 | Nissan | Sentra | XE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2002 | Nissan | Sentra | CA | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2002 | Nissan | Sentra | GXE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2002 | Nissan | Sentra | XE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2001 | Nissan | Sentra | GXE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2001 | Nissan | Sentra | XE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2000 | Nissan | Sentra | GXE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
| 2000 | Nissan | Sentra | XE | Sedan | Automatic | 1.8L | L4 | N/A | TYC Radiator |
