Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

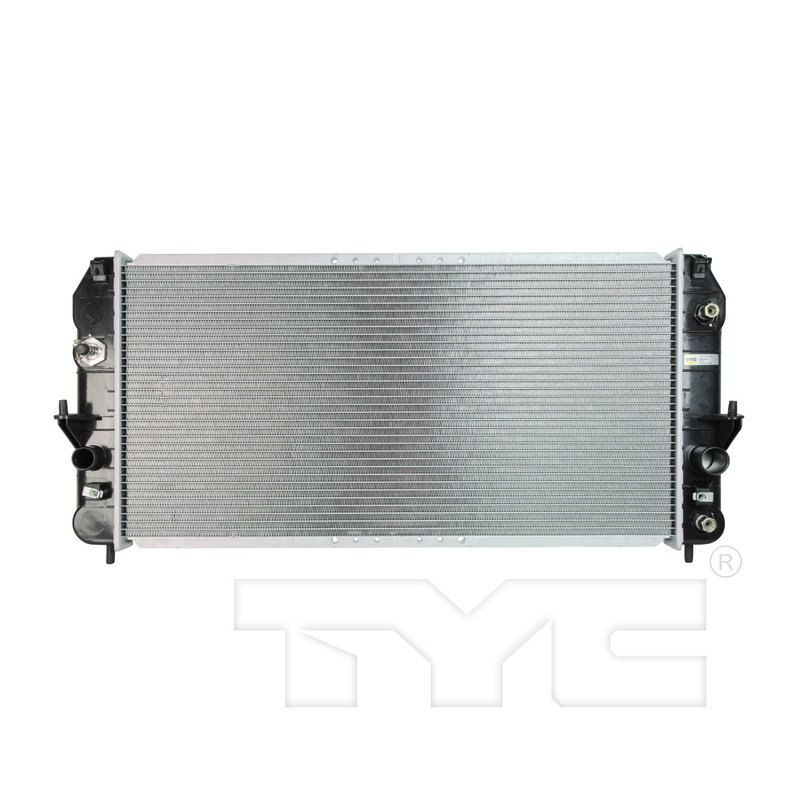

TYC 2352 Radiator - Primary
| Brand | TYC 2352 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.42x16.59 |
| Core Height (in) | 15.08 |
| Core Length (in) | 30.51 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 56 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.6 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.30 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.57 |
| Toc Distance (in) | 11.50 |
| Toc Inlet Diameter (in) | 1/2-20unf |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 1/2-20unf |
| Toc Outlet Type | Adapter |
| Top Header | 2.42x16.59 |
| Total Fin Row Count | 35 |
| Total Tube Count | 34 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Cadillac and Pontiac · 8 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid.
Cross-references APDI 8012491, Cadillac 89018716 and Partslink GM3010457 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator 2352 Overview
TYC Radiator 2352 is an aluminum replacement radiator with an integrated transmission oil cooler for vehicles that need stable engine temperature control and automatic transmission fluid cooling. It is built for direct-fit service on select Cadillac DeVille and Pontiac Bonneville applications, including 2001-2005 Cadillac DeVille with Extra Duty Cooling and 2004-2005 Pontiac Bonneville.
The TYC Radiator line focuses on OE-style cooling system replacement parts, and this unit follows that approach with a crossflow design, hose clamp inlet and outlet connections, and a single-row core layout. Part number 2352 is also listed for 2000 Cadillac DeVille Primary models without Extra Duty Cooling.
Key Features
- Aluminum core construction for cooling system service
- Integrated transmission oil cooler with plate-style cooler design
- Crossflow flow configuration
- Single-row core design
- Hose clamp inlet and outlet connections
- Core dimensions: 30.51 in. length, 15.08 in. height, 1.02 in. thickness
- Transmission oil cooler adapter connections: 1/2-20UNF inlet and outlet
Detailed Description
This TYC Radiator 2352 is engineered as a direct replacement radiator for select Cadillac and Pontiac cooling systems. The aluminum core, 34-tube layout, and 35 total fin rows support heat transfer across the radiator core, while the built-in plate transmission oil cooler adds fluid cooling capability for automatic transmission applications. The radiator uses a crossflow configuration with hose clamp connections at the inlet and outlet, making it a practical OE-style replacement for service work on Cadillac DeVille and Pontiac Bonneville models.
Compatible With 2001-2005 Cadillac DeVille, w/ Extra Duty Cooling; 2004-2005 Pontiac Bonneville; and 2000 Cadillac DeVille, Primary, w/o Extra Duty Cooling. This part cross-references Spectra Premium CU2352 for the same application.
What It Helps Address
- Engine overheating caused by a worn or leaking radiator
- Transmission fluid temperature rise from a failing cooler circuit
- Coolant loss from cracked tanks or damaged core passages
- Reduced cooling efficiency from clogged or corroded radiator tubes
- Fitment issues when replacing the original Cadillac DeVille or Pontiac Bonneville radiator
Installation Notes
Verify radiator dimensions, inlet and outlet sizes, and transmission cooler connection style before installation. Confirm whether the vehicle is equipped with Extra Duty Cooling or the Primary cooling configuration, since fitment differs by application. Inspect hoses, clamps, and cooler lines for wear before reassembly, and flush the cooling system if contamination is present.
Quality Assurance
TYC Radiator 2352 is built as an OE-style replacement cooling component with application-specific fitment for select Cadillac DeVille and Pontiac Bonneville models. The aluminum construction and integrated transmission oil cooler support dependable radiator service in the listed applications.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2005 | Cadillac | DeVille | DTS | Sedan | 4.6L | V8 | N/A | w/ Extra Duty Cooling; TYC Radiator |
| 2005 | Pontiac | Bonneville | GXP | Sedan | 4.6L | V8 | N/A | TYC Radiator |
| 2004 | Cadillac | DeVille | DTS | Sedan | 4.6L | V8 | N/A | w/ Extra Duty Cooling; TYC Radiator |
| 2004 | Pontiac | Bonneville | GXP | Sedan | 4.6L | V8 | N/A | TYC Radiator |
| 2003 | Cadillac | DeVille | DTS | Sedan | 4.6L | V8 | N/A | w/ Extra Duty Cooling; TYC Radiator |
| 2002 | Cadillac | DeVille | DTS | Sedan | 4.6L | V8 | N/A | w/ Extra Duty Cooling; TYC Radiator |
| 2001 | Cadillac | DeVille | DTS | Sedan | 4.6L | V8 | N/A | w/ Extra Duty Cooling; TYC Radiator |
| 2000 | Cadillac | DeVille | DTS | Sedan | 4.6L | V8 | Primary | w/o Extra Duty Cooling; TYC Radiator |
