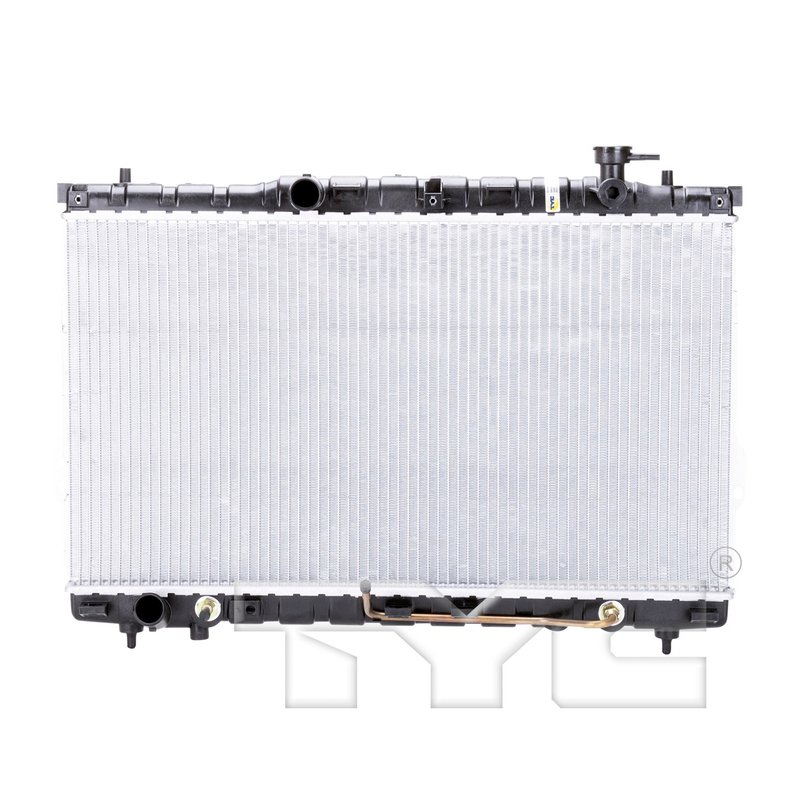

TYC 2389 Radiator

Overview of the TYC Radiator for Hyundai Santa Fe

The TYC Radiator part number 2389 is designed specifically for Hyundai Santa Fe models, providing reliable engine cooling with integrated transmission oil cooling. Constructed with durable aluminum, this radiator supports efficient heat dissipation and vehicle performance.

• Core material: Aluminum for effective heat transfer
• Includes concentric transmission oil cooler
• Downflow core design with 1 row of tubes
• Core dimensions: 28.5 inches height, 15.75 inches length, 0.63 inches thickness
• Inlet and outlet hose clamp connections with 1.38-inch diameter
• Fin count: 73 fins every 4 inches, total 66 fin rows
• Compatible with Hyundai Santa Fe models

Detailed Features and Specifications

This TYC Radiator (part number 2389) features a downflow flow configuration that optimizes coolant circulation through a single row of 65 tubes, each measuring 16 by 2 inches. The aluminum core enhances thermal conductivity, while the 73 fins per 4 inches and 0.35-inch fin wave height improve heat dissipation. Both the top and bottom headers measure 1.99 by 28.78 inches, ensuring structural integrity and fitment precision.

Additionally, this radiator includes a concentric transmission oil cooler with tube fittings sized at 0.31 inches for both inlet and outlet, supporting transmission fluid temperature regulation. The radiator does not include an engine oil cooler. Hose clamp inlet and outlet connections with 1.38-inch diameters facilitate secure and straightforward installation.

TYC Radiator Product Line Information

The TYC Radiator product line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. Radiators in this line, including part number 2389, are designed with attention to core construction, flow configuration, and integrated transmission oil cooling to support vehicle reliability and performance, particularly for Hyundai Santa Fe applications.

Common Applications and Problem Resolution

• Replaces leaking or damaged radiator cores
• Addresses overheating issues due to inefficient cooling
• Restores proper transmission fluid temperature control with built-in oil cooler
• Solves coolant leaks from worn hose clamp connections
• Improves engine cooling system efficiency in Hyundai Santa Fe vehicles

Installation Notes and Tips

Ensure compatibility with your specific Hyundai Santa Fe model before installation. Use appropriate tools to secure hose clamp connections at the 1.38-inch inlet and outlet ports. Verify that the concentric transmission oil cooler fittings are properly connected using tube fittings sized at 0.31 inches. Inspect all seals and hoses for wear during installation to prevent leaks.

Quality Assurance and Warranty

TYC Radiator part number 2389 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are tested for reliability. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
