Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

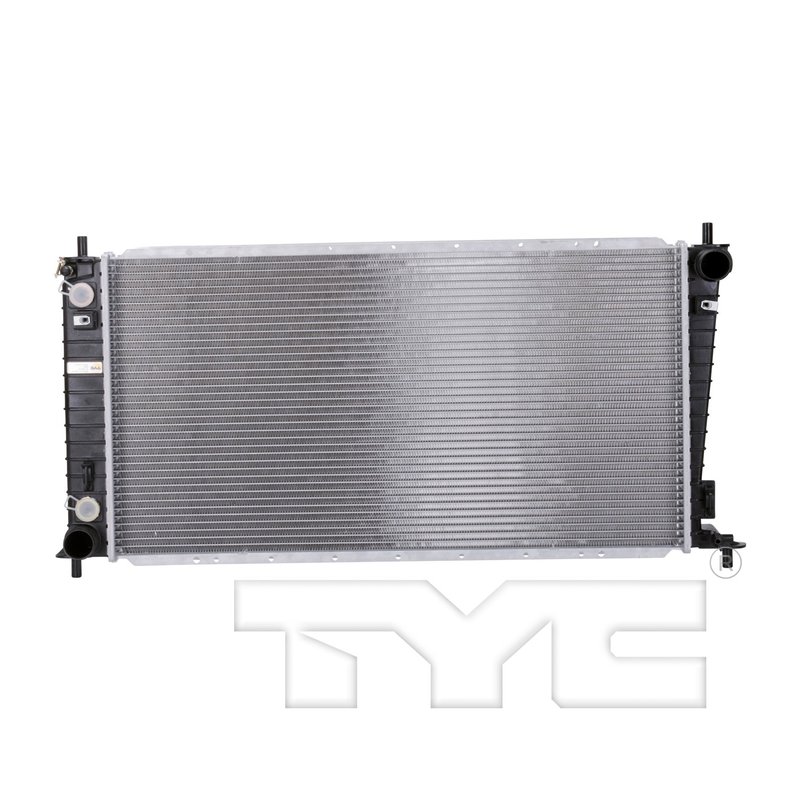

TYC 2401 Radiator - Front
| Brand | TYC 2401 |
|---|---|
| Position | Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 3.14x17.29 |
| Core Height (in) | 16.81 |
| Core Length (in) | 31.89 |
| Core Thickness (in) | 1.26 |
| Fin Count (every 4") | 53 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.77 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.77 |
| Toc Distance (in) | 12.01 |
| Top Header | 3.14x17.29 |
| Total Fin Row Count | 39 |
| Total Tube Count | 38 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Ford and Lincoln · 12 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid.
Cross-references APDI 8012257, CSF 2084 and DENSO 221-9374 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford F-150 Applications
The TYC Radiator Part Number 2401 is a direct-fit cooling system replacement built with an aluminum core and a crossflow design. It includes a transmission oil cooler with a plate-style cooler layout, making it a practical choice for Ford F-150 and Ford F-150 Heritage front radiator service.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow flow configuration
- Transmission oil cooler included with plate oil cooler design
- Single-row core layout
- Hose clamp inlet and outlet connections
- Core dimensions: 31.89 in. length, 16.81 in. height, 1.26 in. thickness
- Inlet and outlet diameter: 1.77 in.
- TYC Radiator Part Number 2401 for application matching
Product Details
TYC Radiator Part Number 2401 is engineered for front-mounted cooling applications on the 1999-2003 Ford F-150, 2004 Ford F-150 Heritage, and 2002 Lincoln Blackwood. The aluminum core and crossflow layout support coolant circulation through a compact radiator package, while the integrated transmission oil cooler adds fluid cooling capability for vehicles equipped with automatic transmission cooling through the radiator. This TYC Radiator is listed with a 38-tube core, 39 total fin rows, and hose clamp inlet and outlet connections for fitment-specific replacement work. This part cross-references Ford YL3Z 8005 GA for the same application.
Common Problems This Radiator Addresses
- Overheating caused by a leaking or restricted radiator
- Transmission fluid temperature concerns when the radiator cooler circuit is compromised
- Coolant loss from cracked tanks or damaged core sections
- Poor heat rejection from a clogged or corroded factory radiator
- Cooling system service needs on Ford F-150 and Ford F-150 Heritage front applications
Installation Notes and Tips
Verify the vehicle uses the listed front-position radiator configuration before installation. Confirm hose clamp inlet and outlet sizing, transmission cooler connection style, and core dimensions against the original unit. For best results, inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination or debris is present. Fitment includes 1999-2003 Ford F-150, front; 2004 Ford F-150 Heritage, front; and 2002 Lincoln Blackwood.
Quality Assurance
TYC Radiator components are built to match application-specific cooling requirements and interchange with several OE and aftermarket references, including APDI 8012257, CSF 2084, DENSO 221-9374, Spectra Premium CU2257, and Ford YL3Z 8005 GA. Part Number 2401 is specified for the listed vehicle applications and cooling-system configuration.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Ford | F-150 Heritage | 4.6L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; Light Duty; Crossflow; TYC Radiator |
| 2003 | Ford | F-150 | 4.6L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; Light Duty; Crossflow; TYC Radiator |
| 2003 | Ford | F-150 | 5.4L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; Light Duty; Crossflow; TYC Radiator |
| 2002 | Ford | F-150 | 5.4L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; 4 Row Equivalent; Light Duty; Crossflow; TYC Radiator |
| 2002 | Ford | F-150 | 4.6L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; Light Duty; Crossflow; TYC Radiator |
| 2002 | Lincoln | Blackwood | 5.4L | V8 | N/A | TYC Radiator |
| 2001 | Ford | F-150 | 4.6L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; Light Duty; Crossflow; TYC Radiator |
| 2001 | Ford | F-150 | 5.4L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; 4 Row Equivalent; Light Duty; Crossflow; TYC Radiator |
| 2000 | Ford | F-150 | 5.4L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; 4 Row Equivalent; Light Duty; Crossflow; TYC Radiator |
| 2000 | Ford | F-150 | 4.6L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; Light Duty; Crossflow; TYC Radiator |
| 1999 | Ford | F-150 | 5.4L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; 4 Row Equivalent; Light Duty; Crossflow; TYC Radiator |
| 1999 | Ford | F-150 | 4.6L | V8 | Front | w/ 3/8 Inverted Flange Fittings; 1-3/8 inch Thick Core; Light Duty; Crossflow; TYC Radiator |
