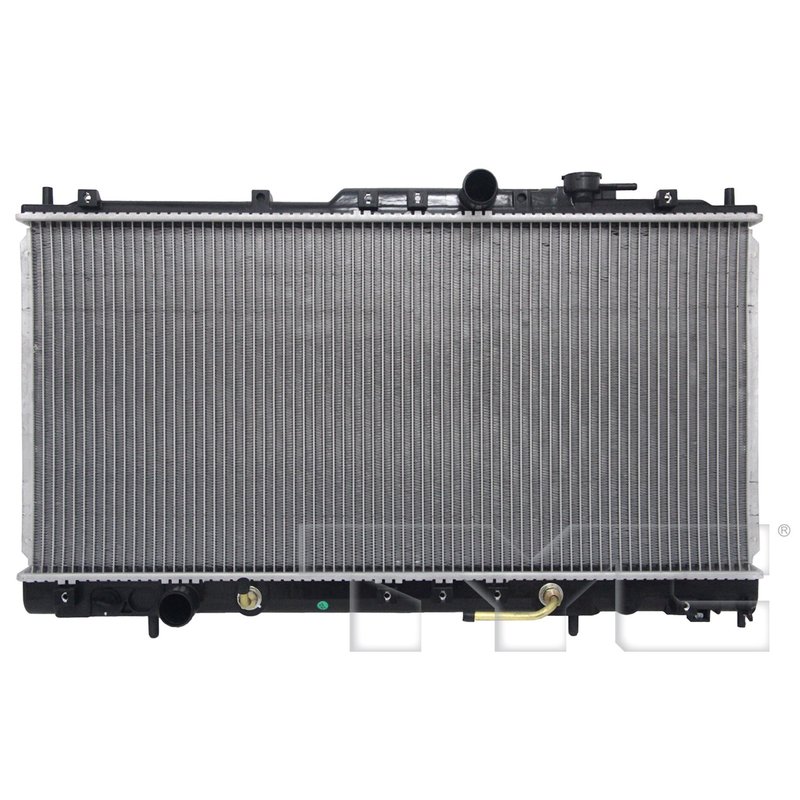

TYC 2406 Radiator
| Brand | TYC 2406 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Core Height (in) | 28.27 |
| Core Length (in) | 13.78 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 72 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Inlet Type | Hose clamp |
| Toc Outlet Diameter (in) | 0.31496099999999999 |
| Toc Outlet Type | Hose clamp |
| Total Tube Count | 71 |
| Tube Width X Height | 16x71 |
| Fits | Mitsubishi · 1 vehicle |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Supports steady coolant flow through a single-row radiator.
Cross-references MI3010191 and MR373101 for the same application. See all 2.
TYC 2406 Radiator for 2000 Mitsubishi Eclipse
TYC 2406 is a direct-fit radiator for the 2000 Mitsubishi Eclipse, built with an aluminum core and a downflow design. It includes a transmission oil cooler and uses hose clamp inlet and outlet connections for a straightforward replacement on the specified application.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with plate oil cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 28.27 in. height, 13.78 in. length, 0.63 in. thickness
- Single-row core with 71 total tubes
- Fits 2000 Mitsubishi Eclipse, N/A, to 01/2000
Detailed Description
This TYC radiator, part number 2406, is built for the 2000 Mitsubishi Eclipse and follows the original downflow layout used in the vehicle’s cooling system. The aluminum core measures 28.27 inches tall, 13.78 inches long, and 0.63 inches thick, with a single-row construction and integrated plate-style transmission oil cooler. The inlet and outlet both use 1.38-inch hose clamp connections, supporting a direct replacement for the listed Eclipse application. This part cross-references Monroe Shocks & Struts (e.g., MI3010191, MR373101) for the same application.
Common Problems This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator
- Overheating caused by restricted coolant flow
- Transmission fluid temperature issues related to a failing cooler circuit
- Poor heat dissipation from a worn or clogged core
- Fitment issues when replacing the original 2000 Mitsubishi Eclipse radiator
Installation Notes and Tips
Verify the vehicle build date before installation, since this radiator is listed for the 2000 Mitsubishi Eclipse to 01/2000. Confirm inlet and outlet hose sizes, transmission cooler line routing, and mounting alignment before removing the original unit. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation.
Quality Assurance
TYC manufactures replacement cooling components with application-specific dimensions and connection types to support proper fitment on the listed vehicle. Part number 2406 is specified for the 2000 Mitsubishi Eclipse, helping ensure the radiator matches the required cooling and transmission oil cooler configuration.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|---|
| 2000 | Mitsubishi | Eclipse | GS | Hatchback | Automatic | 2.4L | L4 | To 01/2000 |
