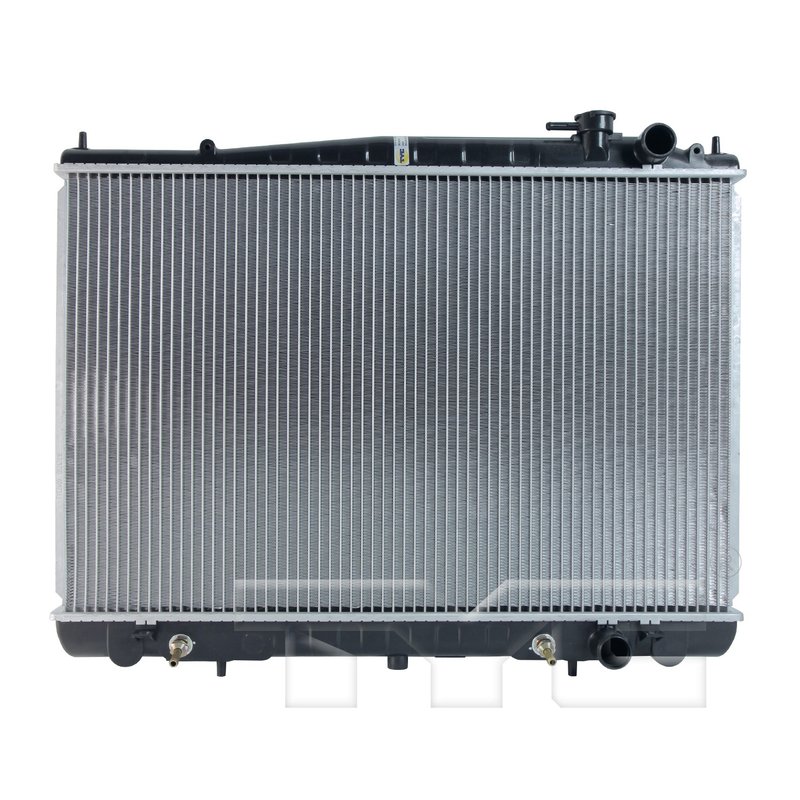

TYC 2409 Radiator
| Brand | TYC 2409 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.39x28.21 |
| Core Height (in) | 27.2 |
| Core Length (in) | 17.72 |
| Core Thickness (in) | 1.26 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.39x28.21 |
| Total Fin Row Count | 63 |
| Total Tube Count | 62 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 32x2 |
| Product line | TYC Radiator |
| Fits | Nissan · 7 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Supports steady coolant flow through the radiator.
Cross-references APDI 8012409, CSF 2982 and DENSO 221-9173 for the same application. See all 10.
TYC 2409 Radiator for Frontier and Xterra
TYC Radiator 2409 is a direct-fit aluminum radiator for select Nissan trucks and SUVs. It includes a concentric transmission oil cooler and uses downflow flow configuration with hose clamp inlet and outlet connections for straightforward OE-style replacement.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow design with one-row core layout
- Transmission oil cooler included with concentric oil cooler design
- Hose clamp inlet and outlet connections
- Core dimensions: 27.2 in height, 17.72 in length, 1.26 in thickness
- Fits Nissan Frontier and Nissan Xterra applications listed below
Product Details
This TYC Radiator 2409 is built around an aluminum core with 62 total tubes and 63 total fin rows to support cooling performance in the engine bay. The radiator includes a transmission oil cooler with tube fitting inlet and outlet ports, making it a practical replacement for vehicles that route automatic transmission fluid through the radiator. For shoppers searching for a Nissan Frontier radiator or Nissan Xterra radiator, this part number 2409 matches the listed OE-style applications.
Compatible With: Fits 2001-2004 Nissan Frontier, N/A. Fits 2002-2004 Nissan Xterra, N/A. This part cross-references DENSO 221-9173 and Spectra Premium CU2409 for the same application.
Common Problems This Radiator Can Address
- Coolant leaks from a damaged or corroded radiator core
- Overheating caused by restricted coolant flow
- Transmission fluid cooling concerns when the radiator-mounted cooler is failing
- Cracked hose connection points at the inlet or outlet
- Reduced cooling efficiency from age-related wear
Installation Notes
Verify core dimensions, inlet and outlet diameters, and transmission cooler line connections before installation. Drain coolant and transmission fluid as needed, then transfer any required vehicle-specific components from the original radiator if applicable. After installation, refill with the correct fluids and check for leaks, proper fan operation, and stable operating temperature.
Quality Assurance
TYC manufactures replacement cooling components for OE-style fitment and application-specific replacement needs. Part number 2409 is built to match the listed Nissan Frontier and Nissan Xterra applications with the specified radiator and transmission cooler configuration.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Nissan | Frontier | Automatic | 3.3L | V6 | N/A | TYC Radiator |
| 2004 | Nissan | Xterra | Automatic | 3.3L | V6 | N/A | TYC Radiator |
| 2003 | Nissan | Frontier | Automatic | 3.3L | V6 | N/A | TYC Radiator |
| 2003 | Nissan | Xterra | Automatic | 3.3L | V6 | N/A | TYC Radiator |
| 2002 | Nissan | Frontier | Automatic | 3.3L | V6 | N/A | TYC Radiator |
| 2002 | Nissan | Xterra | Automatic | 3.3L | V6 | N/A | TYC Radiator |
| 2001 | Nissan | Frontier | Automatic | 3.3L | V6 | N/A | TYC Radiator |
