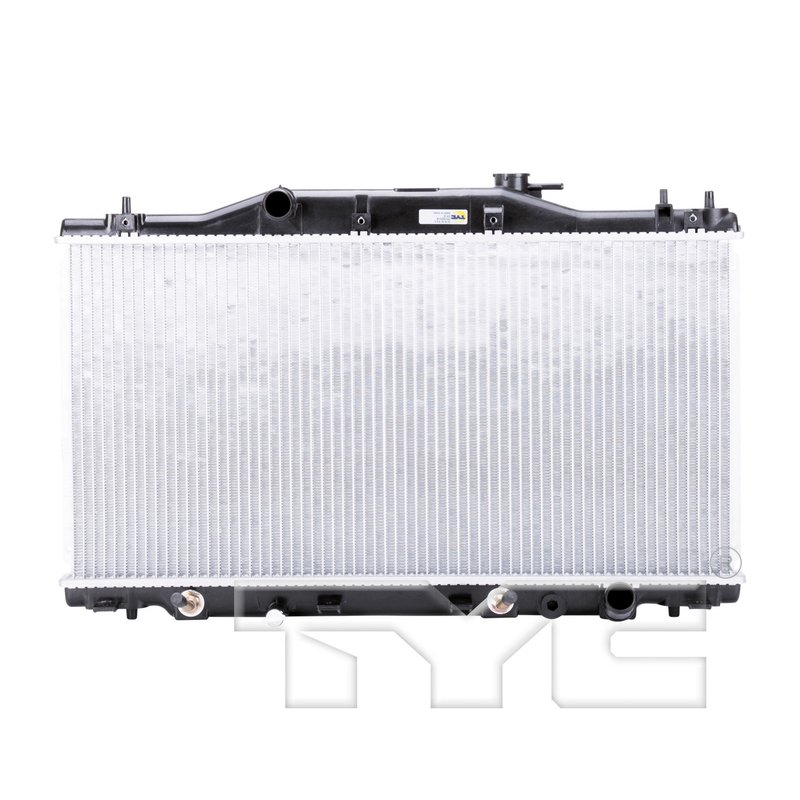

TYC 2412 Radiator

Overview of the TYC Radiator 2412 for Acura RSX

The TYC Radiator 2412 is engineered specifically for the Acura RSX, providing reliable cooling performance with integrated transmission oil cooling. Designed with durable aluminum core material, this radiator supports efficient heat dissipation and vehicle operation under various driving conditions.

• Core material constructed from aluminum for effective heat transfer
• Includes a concentric transmission oil cooler for enhanced transmission temperature management
• Downflow core design with dimensions: 27.2 inches height, 13.78 inches length, and 0.63 inches thickness
• Single-row tube configuration with 62 tubes and 68 fins per 4 inches for optimized airflow
• Hose clamp inlet and outlet connections with 1.26-inch diameter for secure fitment
• Compatible with Acura RSX models requiring part number 2412

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering dependable cooling solutions tailored to specific vehicle applications. This line integrates features such as aluminum cores and built-in transmission oil coolers to meet the thermal management needs of modern engines and transmissions. The TYC Radiator 2412 exemplifies this approach by combining core durability with functional design elements suited for the Acura RSX.

Technical Specifications and Features

This radiator features a downflow flow configuration that promotes efficient coolant circulation through the engine cooling system. The core consists of a single row of 62 tubes, each measuring 16 by 2 mm, supported by 68 fins every 4 inches to maximize heat exchange. The fin wave height is 0.35 inches with a wave pitch of 3, contributing to effective airflow and cooling capacity. Both the top and bottom headers measure 2.01 by 28.37 inches, ensuring structural integrity and proper coolant distribution.

Additionally, the radiator includes a concentric transmission oil cooler with tube fitting inlet and outlet diameters of 0.39 inches, facilitating integrated transmission fluid cooling without the need for separate components. The inlet and outlet connections use hose clamps with 1.26-inch diameters, providing secure and leak-resistant attachment points.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Acura RSX models
• Addresses overheating issues caused by inefficient coolant flow
• Improves transmission fluid temperature control with built-in oil cooler
• Resolves coolant leaks from damaged or corroded radiator cores
• Supports engine cooling system maintenance and restoration

Installation Notes and Tips

Ensure compatibility with Acura RSX models before installation by verifying part number 2412. Use appropriate hose clamps for inlet and outlet connections to prevent leaks. Inspect surrounding cooling system components during installation to maintain overall system integrity. Properly bleed the cooling system after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

The TYC Radiator 2412 is manufactured to meet OEM specifications for fit, form, and function. Constructed with an aluminum core and integrated transmission oil cooler, it undergoes quality control processes to ensure durability and reliability. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
