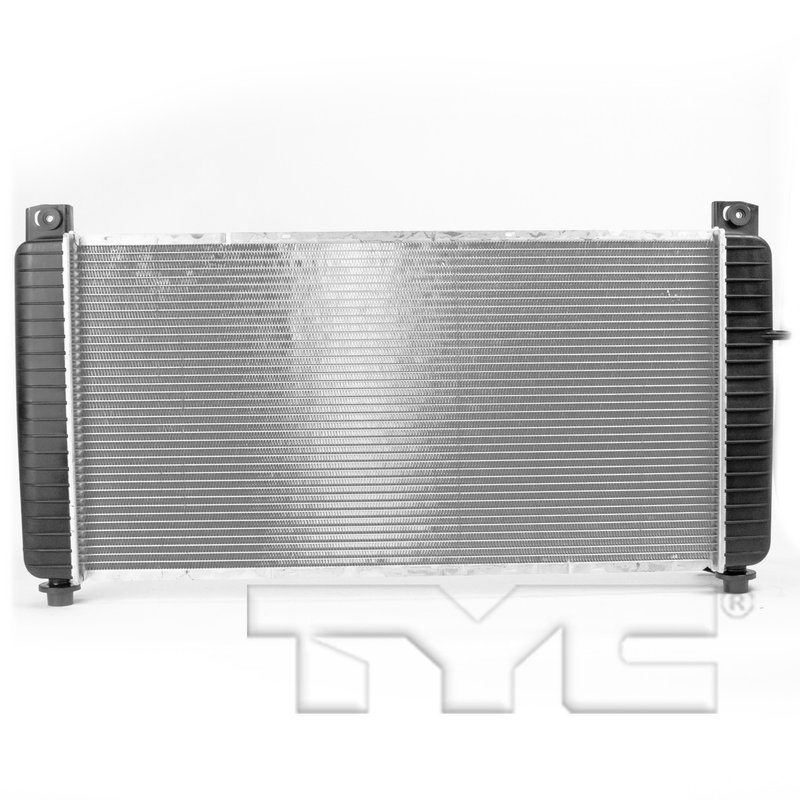

TYC 2423 Radiator - Front or Primary

Overview of TYC Radiator 2423 for GM Trucks and SUVs

The TYC Radiator 2423 is engineered to provide reliable cooling performance for select Cadillac, Chevrolet, and GMC trucks and SUVs. Designed with a durable aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management under demanding conditions.

• Core material constructed from aluminum for effective heat dissipation
• Includes a plate-type transmission oil cooler for enhanced transmission cooling
• Crossflow flow configuration for optimized coolant circulation
• Core dimensions: 17.24 inches height, 34.02 inches length, and 1.02 inches thickness
• Hose clamp inlet and outlet connections with diameters of 1.30 and 1.57 inches respectively
• Compatible with multiple GM models including Chevrolet Silverado, GMC Sierra, Cadillac Escalade, and more
• Part number 2423 ensures precise fitment and performance

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. Radiators in this line, including part number 2423, feature robust aluminum cores and integrated transmission oil coolers where applicable, designed to maintain optimal engine and transmission temperatures. This product line supports a range of GM vehicles, providing reliable thermal management solutions tailored to specific model requirements.

Technical Specifications and Features

This radiator features a single-row core with 39 tubes and 40 total fin rows, each fin spaced with a wave pitch of 4 inches and a wave height of 0.35 inches, contributing to efficient heat exchange. The bottom and top headers measure 3.16 by 18.5 inches, supporting structural integrity and coolant flow. The transmission oil cooler inlet and outlet utilize quick connect fittings with 0.37-inch diameters, facilitating secure and leak-free connections. The radiator’s crossflow design promotes uniform coolant distribution, enhancing overall cooling efficiency.

Applications and Problem Resolution

• Replaces faulty or leaking radiators in Cadillac Escalade and Escalade EXT models
• Addresses overheating issues in Chevrolet Silverado 1500 and 2500 series trucks
• Restores proper transmission cooling in GMC Sierra 3500 and Yukon XL vehicles
• Solves coolant flow restrictions caused by damaged or clogged radiator cores
• Improves engine temperature regulation for enhanced vehicle performance and longevity

Installation Notes and Tips

Installation requires removal of the existing radiator and proper connection of hose clamps for inlet and outlet ports. Ensure the transmission oil cooler quick connect fittings are securely attached to prevent leaks. Verify compatibility with your specific vehicle model and engine configuration before installation. It is recommended to inspect and replace coolant hoses and clamps as needed during installation to maintain system integrity.

Quality Assurance and Warranty

TYC Radiator 2423 is manufactured to meet industry standards for durability and performance. The aluminum core construction resists corrosion and wear, contributing to long service life. While specific warranty details are not provided, TYC products typically adhere to quality control processes to ensure reliable operation in compatible Cadillac, Chevrolet, and GMC vehicles.
