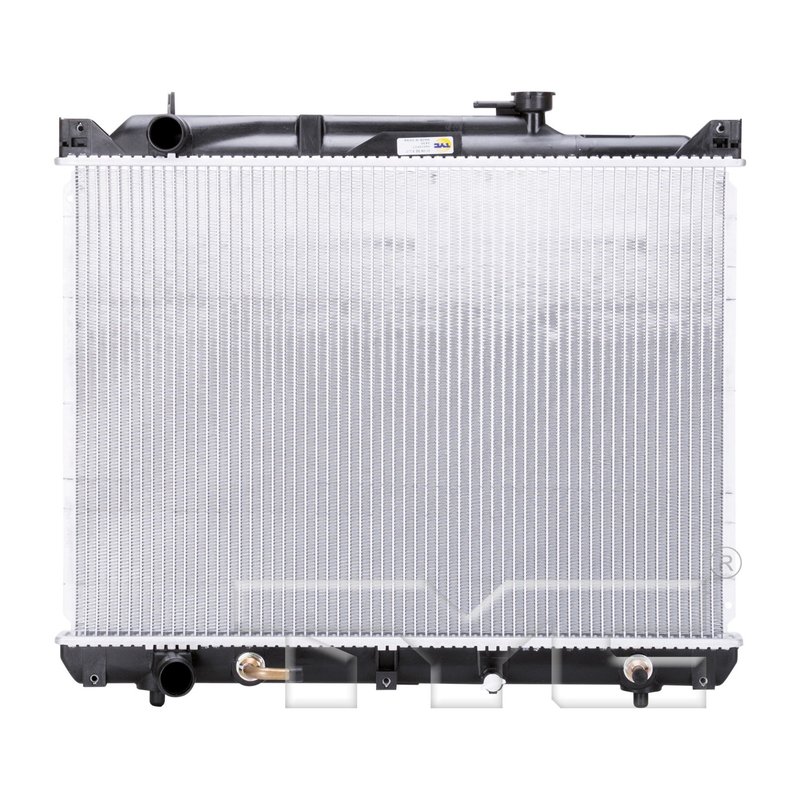

TYC 2430 Radiator - Front

Overview of TYC Radiator 2430 for Suzuki Grand Vitara and XL-7

The TYC Radiator part number 2430 is engineered for reliable cooling performance in Suzuki Grand Vitara and XL-7 models. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material: durable aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for enhanced transmission cooling
• Core dimensions: 23.15 inches height, 16.73 inches length, 1.02 inches thickness
• Downflow configuration with 68 fins per 4 inches and 59 total fin rows
• Hose clamp inlet and outlet connections, each with 1.34-inch diameter
• Single-row tube design with 58 total tubes and 10 tubes per 4 inches
• Top and bottom headers sized 2.02 by 24.54 inches

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. This product line emphasizes durable materials and precise fitment, ensuring compatibility with specific vehicle models such as the Suzuki Grand Vitara and XL-7. The inclusion of a concentric transmission oil cooler in this radiator enhances its functionality for vehicles requiring integrated transmission fluid cooling.

Technical Description and Features

This TYC Radiator 2430 features an aluminum core that provides efficient heat transfer and corrosion resistance. The downflow flow configuration optimizes coolant movement through the radiator, while the 68 fins per 4 inches and 59 total fin rows increase surface area for improved cooling. The radiator includes a concentric transmission oil cooler with tube fittings for inlet and outlet, each measuring 0.39 inches in diameter, supporting transmission fluid temperature regulation. Hose clamp connections on both inlet and outlet ports, each 1.34 inches in diameter, facilitate secure hose attachment. The radiator’s single-row tube design with 58 tubes ensures effective coolant flow and heat exchange.

Common Applications and Problem Solving

• Replaces faulty or leaking radiators in Suzuki Grand Vitara and XL-7 models
• Addresses overheating issues caused by inefficient cooling systems
• Resolves transmission fluid overheating with integrated oil cooler
• Improves engine performance by maintaining optimal operating temperatures
• Prevents coolant leaks and pressure loss due to worn or damaged radiators

Installation Notes and Tips

Ensure compatibility with Suzuki Grand Vitara and XL-7 models before installation. Use appropriate hose clamps for inlet and outlet connections sized at 1.34 inches. Verify the concentric transmission oil cooler fittings are properly connected using tube fittings sized at 0.39 inches. Follow vehicle manufacturer guidelines for coolant system bleeding and pressure testing after installation.

Quality Assurance and Warranty

TYC Radiator 2430 is manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and long service life. While specific warranty details are not provided, TYC products typically adhere to quality control processes to ensure reliable operation in compatible Suzuki Grand Vitara and XL-7 vehicles.
