Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

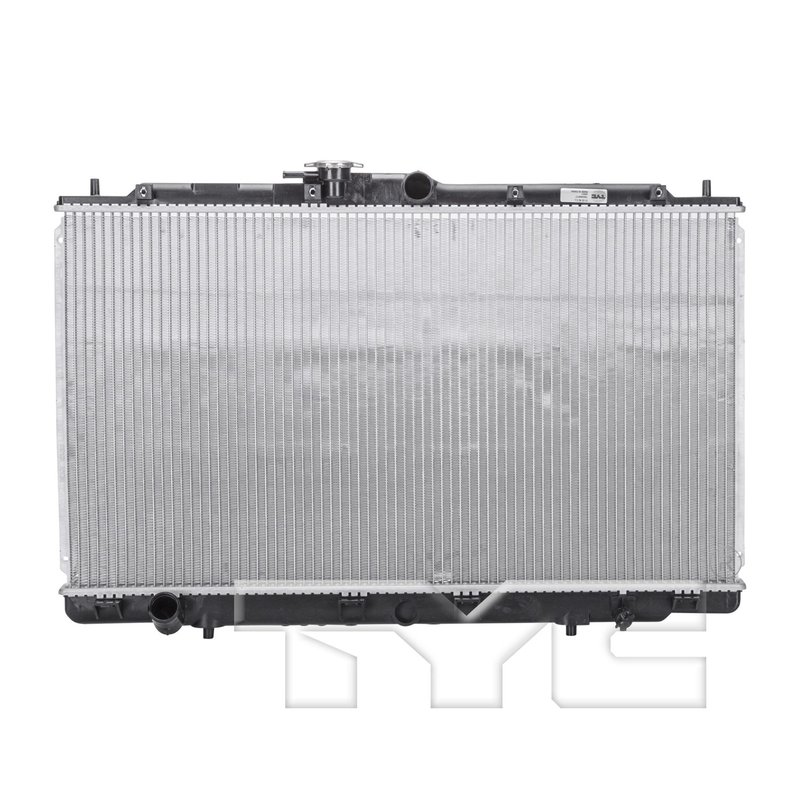

TYC 2431 Radiator
| Brand | TYC 2431 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.01x29.13 |
| Core Height (in) | 28.27 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.30 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.30 |
| Top Header | 1.4x29.13 |
| Total Fin Row Count | 72 |
| Total Tube Count | 71 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Acura · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Downflow design. Supports steady coolant flow through the radiator.
Hose clamp connections. Simple inlet and outlet attachment for a secure fit.
Cross-references Acura 19010-PJE-A51, APDI 8012431 and CSF 2764 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Acura CL and TL
The TYC Radiator 2431 is a direct-fit cooling replacement for select 2002-2003 Acura CL and Acura TL applications. Built with an aluminum core and downflow flow configuration, it is engineered to match the vehicle’s original radiator layout for dependable engine cooling.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow design for the specified Acura cooling system layout
- Hose clamp inlet and outlet connections
- 1.30 in. inlet and outlet diameters
- Single-row core design with 28.27 in. core height, 15.75 in. core length, and 0.63 in. core thickness
- No engine oil cooler included
- No transmission oil cooler included
Product Details
TYC Radiator 2431 is built for 2002-2003 Acura CL and 2002-2003 Acura TL models. The aluminum core, 71 total tubes, and fin density are specified to support heat dissipation in the factory-style cooling system. With hose clamp inlet and outlet connections and a downflow configuration, this radiator is suited to OE-style replacement needs where correct fitment and cooling performance matter.
This part cross-references APDI 8012431 and Spectra Premium CU2431 for the same application.
What It Helps Address
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked or corroded radiator components
- Poor heat rejection from a damaged core
- Cooling system service needs on Acura CL and Acura TL models
- Replacement of a radiator with worn hose-clamp connections
Installation Notes and Tips
Verify the inlet and outlet diameters, header dimensions, and downflow layout before installation. Inspect hoses, clamps, and coolant condition during replacement, and flush the cooling system if contamination or debris is present. Confirm fitment for 2002-2003 Acura CL and 2002-2003 Acura TL before ordering.
Quality Assurance
TYC is a recognized aftermarket brand for replacement cooling components. This radiator is built to match the listed application details for Acura CL and Acura TL fitment, including the specified core dimensions and connection style.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2003 | Acura | CL | Base | Coupe | 3.2L | V6 | N/A | TYC Radiator |
| 2003 | Acura | TL | Type-S | Sedan | 3.2L | V6 | N/A | TYC Radiator |
| 2002 | Acura | CL | Base | Coupe | 3.2L | V6 | N/A | TYC Radiator |
| 2002 | Acura | TL | Type-S | Sedan | 3.2L | V6 | N/A | TYC Radiator |
| No rows match your filter. | ||||||||
