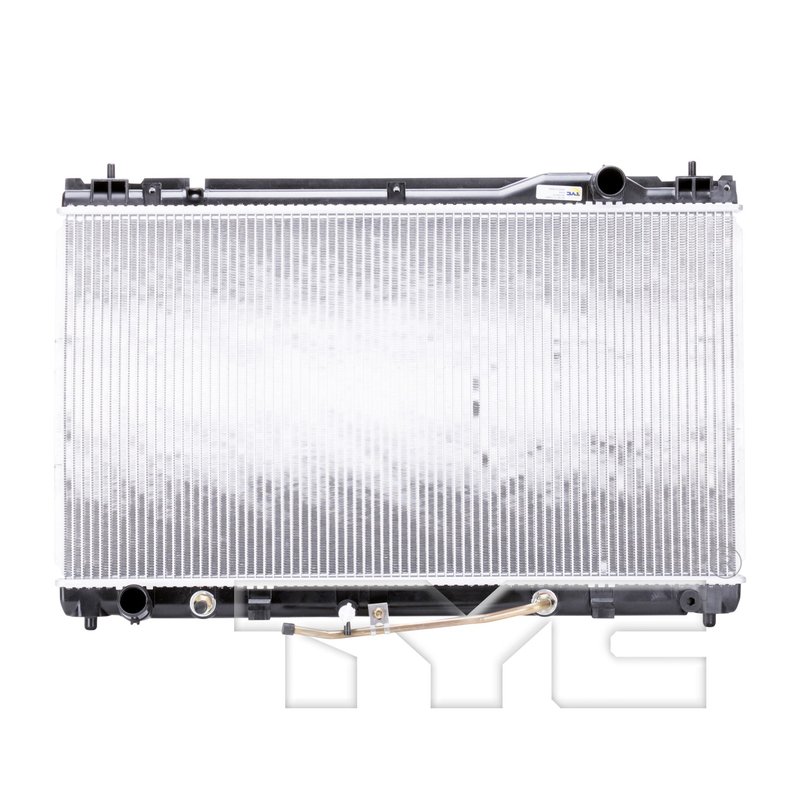

TYC 2434 Radiator - Front

Overview of the TYC Radiator 2434 for Toyota Camry

The TYC Radiator 2434 is engineered specifically for Toyota Camry models, providing reliable cooling performance. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine temperature management and transmission fluid cooling.

• Core material constructed from durable aluminum for effective heat dissipation
• Includes a concentric transmission oil cooler for enhanced transmission fluid cooling
• Downflow core design with 1.02-inch thickness and 29.06-inch height
• Hose clamp inlet and outlet connections with 1.34-inch diameter
• Single-row tube configuration with 73 fins per 4 inches for optimized airflow

Detailed Features and Specifications

The TYC Radiator 2434 features a 29.06-inch core height and 15.75-inch core length, with a thickness of 1.02 inches. Its aluminum core ensures efficient heat transfer, while the downflow flow configuration supports consistent coolant circulation. The radiator includes a concentric transmission oil cooler with tube fitting inlet and outlet diameters of 0.39 inches, enhancing transmission cooling without the need for a separate engine oil cooler. Both the inlet and outlet connections use hose clamps with a 1.34-inch diameter, facilitating secure hose attachment. The radiator’s fin count is 73 per 4 inches, with a total of 74 fin rows and 73 tubes, contributing to effective heat exchange. The top and bottom headers measure 2.04 by 29.9 inches, providing structural integrity and fitment accuracy.

TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling components designed to meet or exceed OEM specifications. This line emphasizes durable materials such as aluminum cores and integrated transmission oil coolers, as seen in part number 2434. The TYC Radiator series is tailored to provide precise fitment and efficient cooling performance for specific vehicle applications, including the Toyota Camry.

Applications and Problem Solving

• Replaces faulty or leaking radiators in Toyota Camry vehicles
• Addresses overheating issues caused by inefficient heat dissipation
• Improves transmission fluid cooling with the integrated concentric oil cooler
• Resolves coolant flow restrictions due to damaged or clogged radiator cores
• Supports engine temperature regulation to prevent engine damage

Installation Notes and Tips

Ensure compatibility with your Toyota Camry model before installation. The radiator uses hose clamp connections for both inlet and outlet hoses, which should be securely fastened to prevent leaks. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow. Handle the aluminum core carefully to avoid damage during installation.

Quality Assurance and Warranty

TYC Radiator 2434 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are designed for long-term reliability. Please refer to TYC’s warranty policy for specific coverage details related to this radiator.
