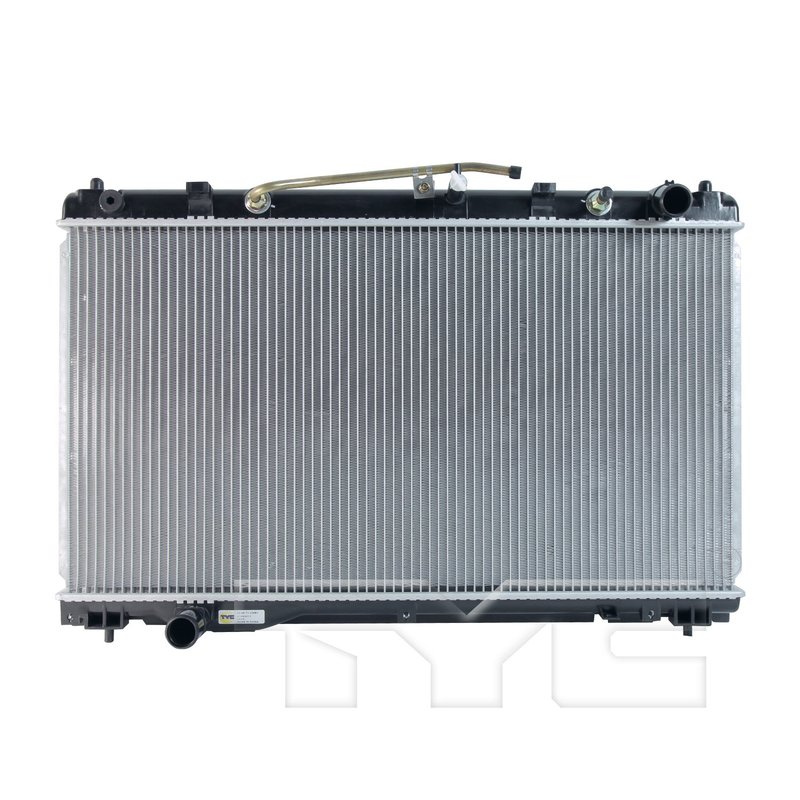

TYC 2435 Radiator - Front
| Brand | TYC 2435 |
|---|---|
| Position | Front |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.04x29.9 |
| Core Height (in) | 29.06 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.34 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.34 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.04x29.9 |
| Total Fin Row Count | 74 |
| Total Tube Count | 73 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Lexus and Toyota · 14 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Adds integrated cooling for the transmission fluid circuit.
Downflow design. Engineered for straightforward coolant flow through the radiator.
Cross-references APDI 8012434, CSF 2788 and DENSO 221-0503 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 2435 Radiator for Toyota and Lexus
TYC Radiator 2435 is an aluminum downflow radiator with an integrated concentric transmission oil cooler. It is built for direct replacement service on select Toyota Camry, Toyota Solara, Lexus ES330, and Lexus ES300 applications, including 2002-2003 Toyota Camry front fitments with a 5/8 inch core depth note.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow design with one-row core layout
- Transmission oil cooler included with concentric oil cooler type
- Hose clamp inlet and outlet connections, 1.34 in. diameter
- Core dimensions: 29.06 in. height, 15.75 in. length, 0.63 in. thickness
- OE-style fitment for Toyota Camry, Toyota Solara, Lexus ES330, and Lexus ES300 applications
- Cross-reference: This part cross-references Spectra Premium CU2435 for the same application.
Product Details
TYC 2435 is a radiator assembly designed around the listed OE-style dimensions and cooling layout. The aluminum core, downflow flow configuration, and integrated transmission oil cooler support factory-style cooling system service on select Toyota and Lexus vehicles. This radiator is listed for 2002-2003 Toyota Camry front applications with a radiator core depth note, plus 2002-2003 Lexus ES300, 2004-2006 Toyota Camry, 2004-2006 Lexus ES330, and 2005-2008 Toyota Solara coverage. The TYC Radiator line focuses on direct-fit cooling components for replacement work, and part number 2435 aligns with multiple interchange references including Toyota 16410-YZZAD and TYC TY37064A.
What It Helps Address
- Engine overheating caused by a failing radiator core
- Transmission fluid temperature control issues when the cooler circuit is part of the radiator
- Coolant leaks from aged or corroded radiator assemblies
- Poor heat dissipation from damaged fins or restricted tubes
- Replacement needs after impact damage or long-term wear
Installation Notes
Verify radiator dimensions, inlet and outlet hose clamp connections, and transmission cooler line fitment before installation. Confirm the vehicle application and note that 2002-2003 Toyota Camry coverage is listed for the front position with compatibility to a radiator that has a 5/8 inch core depth. Transfer and reconnect all cooling system components according to factory service procedures, then refill and bleed the system to remove air pockets.
Quality Assurance
TYC Radiator 2435 is built to match the listed application requirements and OE-style cooling specifications for the covered Toyota and Lexus vehicles. The part number 2435 is supported by multiple aftermarket and OE cross-references, which helps confirm application alignment during replacement selection.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Toyota | Solara | — | 3.3L | V6 | N/A | TYC Radiator |
| 2007 | Toyota | Solara | — | 3.3L | V6 | N/A | TYC Radiator |
| 2006 | Lexus | ES330 | — | 3.3L | V6 | N/A | TYC Radiator |
| 2006 | Toyota | Camry | Automatic | 3.0L | V6 | N/A | TYC Radiator |
| 2006 | Toyota | Solara | — | 3.3L | V6 | N/A | TYC Radiator |
| 2005 | Lexus | ES330 | — | 3.3L | V6 | N/A | TYC Radiator |
| 2005 | Toyota | Camry | Automatic | 3.0L | V6 | N/A | TYC Radiator |
| 2005 | Toyota | Solara | — | 3.3L | V6 | N/A | TYC Radiator |
| 2004 | Lexus | ES330 | — | 3.3L | V6 | N/A | TYC Radiator |
| 2004 | Toyota | Camry | Automatic | 3.0L | V6 | N/A | TYC Radiator |
| 2003 | Lexus | ES300 | — | 3.0L | V6 | N/A | TYC Radiator |
| 2003 | Toyota | Camry | — | 3.0L | V6 | Front | Fitment Note: Compatible with a radiator that has a 5/8 inch core depth.; TYC Radiator |
| 2002 | Lexus | ES300 | — | 3.0L | V6 | N/A | TYC Radiator |
| 2002 | Toyota | Camry | — | 3.0L | V6 | Front | Fitment Note: Compatible with a radiator that has a 5/8 inch core depth.; TYC Radiator |
