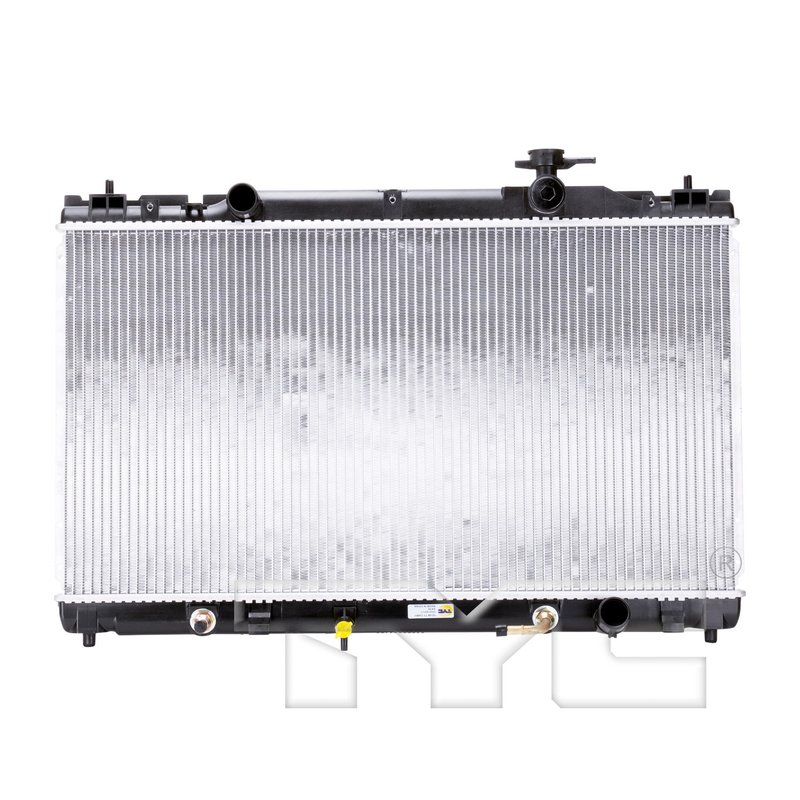

TYC 2436 Radiator - Front

Overview of the TYC Radiator 2436 for Toyota Camry

The TYC Radiator part number 2436 is designed specifically for Toyota Camry models, providing reliable cooling performance. This radiator features an aluminum core and includes a concentric transmission oil cooler to support efficient engine operation.

• Core material: durable aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for integrated cooling
• Core dimensions: 29.06 inches height, 15.75 inches length, 1.02 inches thickness
• Downflow configuration with 1 row of tubes and 74 total fin rows
• Inlet and outlet hose clamp connections with 1.38-inch diameter
• Compatible with Toyota Camry models requiring part number 2436

TYC Radiator Product Line Details

The TYC Radiator line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This product line emphasizes durable aluminum cores and integrated transmission oil coolers, such as the concentric oil cooler included in part 2436. These radiators are designed to maintain optimal engine temperatures and support transmission cooling in compatible vehicles like the Toyota Camry.

Technical Specifications and Features

This radiator features a 2.04x29.9 inch top and bottom header and a core thickness of 1.02 inches, providing a robust cooling surface. The downflow flow configuration ensures efficient coolant circulation through a single row of 73 tubes, each measuring 26 by 2 inches. The fin count is 68 per 4 inches with a fin wave height of 0.31 inches and a wave pitch of 3, enhancing heat exchange. The transmission oil cooler inlet and outlet use tube fittings with 0.39-inch diameters, supporting integrated transmission fluid cooling.

Common Applications and Problem Solving

• Replaces faulty or leaking radiators in Toyota Camry vehicles
• Addresses overheating issues caused by inefficient cooling
• Restores proper transmission fluid temperature control with built-in oil cooler
• Solves coolant leaks from damaged or corroded radiator cores
• Improves engine performance by maintaining optimal operating temperatures

Installation Notes and Tips

Installation requires proper handling of hose clamp connections with 1.38-inch inlet and outlet diameters. Ensure all coolant and transmission fluid lines are securely attached to prevent leaks. The downflow design should be oriented correctly to maintain proper coolant flow. It is recommended to inspect related cooling system components during installation for optimal performance.

Quality Assurance and Warranty

The TYC Radiator 2436 is manufactured to meet OEM standards for fit, form, and function. The aluminum core construction provides corrosion resistance and durability. This radiator includes a concentric transmission oil cooler to support integrated cooling needs. Warranty coverage details should be confirmed with the product documentation or supplier.
