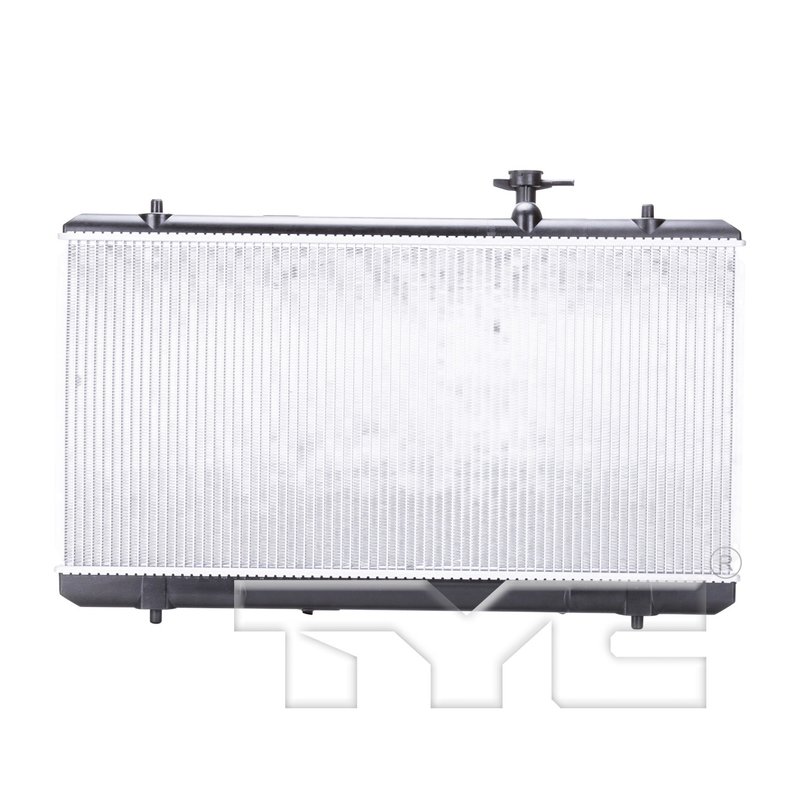

TYC 2451 Radiator - Primary

Overview of the TYC Radiator 2451

The TYC Radiator 2451 is engineered to provide reliable cooling performance for vehicles requiring a durable aluminum core radiator. Designed with a concentric transmission oil cooler, this radiator supports efficient heat dissipation and transmission fluid cooling in one integrated unit.

• Core material constructed from aluminum for effective heat transfer
• Includes a concentric transmission oil cooler for integrated transmission cooling
• Downflow flow configuration for optimized coolant circulation
• Core dimensions: 28.27 inches height, 13.78 inches length, and 1.02 inches thickness
• Single-row tube design with 71 total tubes and 72 fin rows for enhanced cooling
• Hose clamp inlet and outlet connections with 1.34-inch diameter
• Top and bottom headers measuring 2.01 by 29.13 inches

Detailed Product Features and Specifications

The TYC Radiator 2451 features an aluminum core that ensures efficient heat dissipation, critical for maintaining optimal engine temperatures. Its downflow configuration allows coolant to flow from the top to the bottom, supporting consistent cooling performance. The radiator includes a concentric transmission oil cooler with tube fittings sized at 0.39 inches for both inlet and outlet, enabling integrated transmission fluid cooling without the need for a separate cooler.

The core is designed with a single row of tubes, totaling 71 tubes and 72 fin rows, with a fin count of 64 every 4 inches and fin wave height of 0.31 inches. These specifications contribute to effective airflow and heat exchange. The inlet and outlet connections use hose clamps with a diameter of 1.34 inches, compatible with standard cooling system hoses.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling solutions with precision-engineered components. Radiators in this line, including part number 2451, are designed to meet or exceed OEM specifications, featuring durable aluminum cores and integrated transmission oil coolers where applicable. This ensures compatibility and performance for vehicles requiring efficient engine and transmission cooling.

Common Applications and Problem Solving

• Replaces faulty or leaking radiators to restore proper engine cooling
• Addresses overheating issues caused by inefficient heat dissipation
• Solves transmission fluid overheating with the integrated concentric oil cooler
• Eliminates coolant leaks from damaged or corroded radiator cores
• Supports vehicles requiring a downflow radiator configuration with specific core dimensions

Installation Notes and Tips

When installing the TYC Radiator 2451, ensure all hose clamps are securely fastened to the 1.34-inch inlet and outlet connections to prevent leaks. Verify compatibility with your vehicle’s cooling system, especially the downflow configuration and transmission oil cooler fittings. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow.

Quality Assurance and Warranty

TYC Radiator 2451 is manufactured to meet industry standards for durability and performance. The aluminum core construction provides corrosion resistance and longevity. While specific warranty details are not provided here, TYC products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
