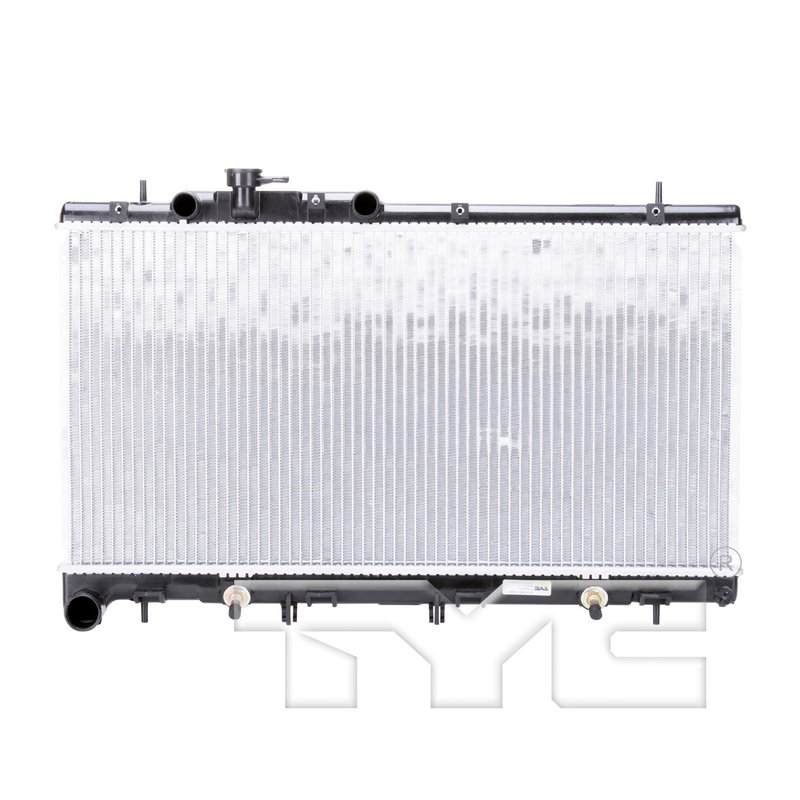

TYC 2465 Radiator
| Brand | TYC 2465 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.03x28.37 |
| Core Height (in) | 27.2 |
| Core Length (in) | 13.78 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.14 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.50 |
| Toc Distance (in) | 14.76 |
| Top Header | 2.03x28.37 |
| Total Fin Row Count | 63 |
| Total Tube Count | 62 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Subaru · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler included. Adds transmission fluid cooling in one integrated unit.
Downflow design. Supports steady coolant flow through the radiator.
Cross-references APDI 8012465, CSF 2206 and DENSO 221-3608 for the same application. See all 9.
TYC Radiator for Subaru Outback
The TYC Radiator 2465 is a direct-fit cooling replacement for 2001-2004 Subaru Outback models. Built with an aluminum core and an integrated concentric transmission oil cooler, it addresses engine cooling and automatic transmission fluid cooling in one unit.
For Subaru Outback owners searching for a radiator replacement for 2001-2004 Subaru Outback, TYC 2465 provides the core dimensions and hose-clamp connections needed for a straightforward service replacement.
Key Features
- Aluminum core construction
- Downflow flow configuration
- Integrated transmission oil cooler with concentric oil cooler design
- No engine oil cooler included
- Hose clamp inlet and outlet connections
- Core dimensions: 27.2 in height, 13.78 in length, 1.02 in thickness
- Single-row design with 62 total tubes
Product Details
TYC Radiator 2465 is built for the 2001-2004 Subaru Outback and matches the application with a downflow layout, 1.14 in inlet diameter, and 1.50 in outlet diameter. The aluminum core and concentric transmission oil cooler support heat transfer for the cooling system while maintaining the OE-style radiator format expected in this vehicle platform. This part cross-references Subaru 45111AE06A for the same application.
Common Issues This Radiator Can Address
- Cracked or leaking radiator tanks
- Restricted coolant flow from internal corrosion or debris
- Transmission fluid temperature concerns tied to a failed cooler circuit
- Overheating caused by reduced radiator efficiency
- Coolant loss from damaged hose connections or aged radiator seams
Installation Notes and Tips
Verify hose diameter, mounting layout, and transmission cooler line routing before installation. Flush the cooling system and inspect the thermostat, radiator cap, hoses, and clamps during replacement. Confirm the vehicle uses the correct automatic transmission cooler connection style before final assembly. Fits 2001-2004 Subaru Outback, N/A.
Quality Assurance
TYC Radiator components are built to match the listed application details for fitment-focused replacement service. Confirm part number 2465 against the vehicle’s original radiator specifications before installation.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Subaru | Outback | Automatic | 3.0L | H6 | N/A | TYC Radiator |
| 2003 | Subaru | Outback | Automatic | 3.0L | H6 | N/A | TYC Radiator |
| 2002 | Subaru | Outback | Automatic | 3.0L | H6 | N/A | TYC Radiator |
| 2001 | Subaru | Outback | Automatic | 3.0L | H6 | N/A | TYC Radiator |
