Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

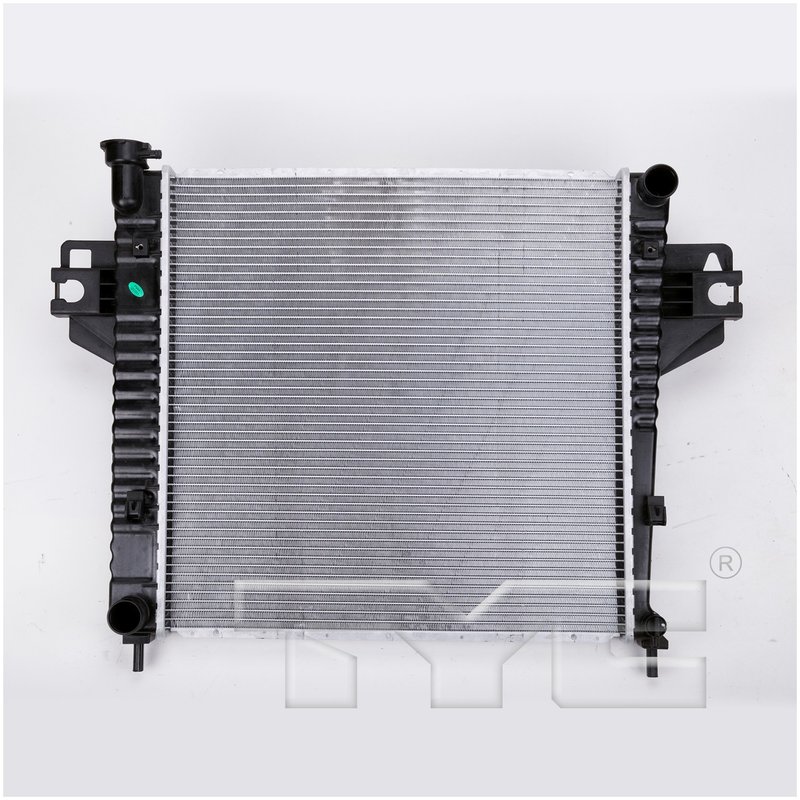

TYC 2482 Radiator
| Brand | TYC 2482 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.55x20.98 |
| Core Height (in) | 20 |
| Core Length (in) | 20 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.50 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.81 |
| Top Header | 2.55x20.98 |
| Total Fin Row Count | 51 |
| Total Tube Count | 50 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Jeep · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Crossflow design. Supports even coolant flow through the radiator core.
Hose clamp connections. Simplifies attachment for a secure cooling-system fit.
Cross-references APDI 8012482, Chrysler 52080123AC and CSF 2972 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for 2002-2005 Jeep Liberty
Restore cooling performance with the TYC Radiator 2482, a direct-fit aluminum radiator for the 2002-2005 Jeep Liberty. This crossflow design is built for hose clamp inlet and outlet connections and matches the listed OE-style dimensions for straightforward replacement service.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator design
- Core dimensions: 20 in. height, 20 in. length, 1.02 in. thickness
- Inlet diameter: 1.50 in.; outlet diameter: 1.81 in.
- Single-row core layout with 50 total tubes
- Hose clamp inlet and outlet connection types
- No engine oil cooler included
- No transmission oil cooler included
Product Details
TYC Radiator 2482 is engineered around the listed fitment for the Jeep Liberty and uses an aluminum core with a crossflow layout to support consistent coolant flow through the radiator assembly. The core and header dimensions, tube count, and fin density are specified to match the application requirements for 2002-2005 Jeep Liberty cooling system service. This part cross-references Chrysler 52080123AC for the same application.
Common Cooling System Issues
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked tanks or damaged core passages
- Reduced heat rejection from clogged fins or internal buildup
- Temperature fluctuation during stop-and-go driving
- Cooling system service needs on a 2002-2005 Jeep Liberty
Installation Notes
Verify inlet and outlet hose sizes before installation and confirm the radiator matches the vehicle’s cooling system layout. Inspect hoses, clamps, and coolant condition during replacement, and flush the system if contamination or debris is present. Confirm clearance around the core support and fan shroud before final assembly. Fits 2002-2005 Jeep Liberty, N/A.
Quality Assurance
TYC Radiator 2482 is listed with OE-style interchange references including APDI 8012482, DENSO 221-9381, Spectra Premium CU2482, and Partslink CH3010270, supporting application matching for the specified Jeep Liberty fitment.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Jeep | Liberty | Automatic | 2.4L | L4 | N/A | TYC Radiator |
| 2004 | Jeep | Liberty | Automatic | 2.4L | L4 | N/A | TYC Radiator |
| 2003 | Jeep | Liberty | Automatic | 2.4L | L4 | N/A | TYC Radiator |
| 2002 | Jeep | Liberty | Automatic | 2.4L | L4 | N/A | TYC Radiator |
