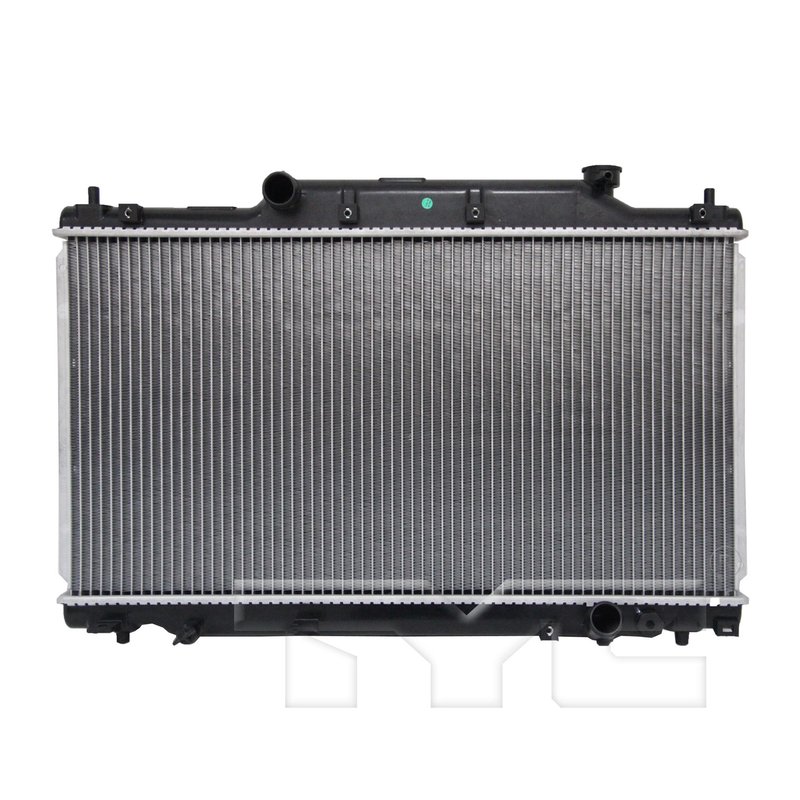

TYC 2574 Radiator

Overview of the TYC Radiator 2574 for Honda Civic

The TYC Radiator part number 2574 is designed specifically for Honda Civic models, providing reliable engine cooling performance. Constructed with an aluminum core, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Material: Durable aluminum for effective heat transfer
• Core Dimensions: 25.91 inches height, 13.78 inches length, 1.02 inches thickness
• Flow Configuration: Downflow design for consistent coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1.30-inch diameter
• Fin Count: 73 fins every 4 inches with a fin wave height of 0.31 inches
• Tube Count: 65 tubes total, 10 tubes every 4 inches, sized 26x2 inches
• Headers: Top and bottom headers measuring 2.01x26.87 inches
• Single row core construction for streamlined cooling

TYC Radiator Product Line Details

The TYC Radiator product line focuses on delivering quality cooling components engineered to meet or exceed OEM specifications. This line emphasizes durable materials and precise fitment, ensuring compatibility with specific vehicle models such as the Honda Civic. The TYC Radiator 2574 exemplifies this approach by combining aluminum core construction with a downflow design to optimize engine cooling efficiency.

Technical Description and Features

This radiator features a single-row aluminum core with a thickness of 1.02 inches, providing a balance between cooling capacity and compact size. The downflow flow configuration directs coolant from the top to the bottom, enhancing heat exchange efficiency. The fin design includes 73 fins every 4 inches with a wave height of 0.31 inches and a pitch of 2.8, which improves airflow and heat dissipation. Both the inlet and outlet connections use hose clamps with a 1.30-inch diameter, facilitating secure and leak-free hose attachment. The top and bottom headers measure 2.01 by 26.87 inches, supporting structural integrity and coolant distribution across the core.

Compatible Applications and Common Issues Addressed

• Replacement for worn or leaking radiators in Honda Civic vehicles
• Resolves engine overheating caused by inefficient cooling
• Addresses coolant leaks from damaged or corroded radiator cores
• Improves cooling system performance after radiator core clogging
• Suitable for restoring factory cooling capacity in Civic models

Installation Notes and Tips

When installing the TYC Radiator 2574, ensure the vehicle is fully cooled before removal of the old radiator. Verify that all hose connections match the 1.30-inch diameter inlet and outlet ports and use appropriate hose clamps for secure attachment. Check for proper alignment of the top and bottom headers to avoid stress on the radiator core. Bleed the cooling system after installation to remove air pockets and confirm leak-free operation before driving.

Quality Assurance and Warranty

TYC Radiator products are manufactured to meet industry standards for durability and performance. The aluminum core construction resists corrosion and supports long service life. While specific warranty details are not provided here, TYC typically offers coverage against manufacturing defects. It is recommended to consult the product documentation or supplier for exact warranty terms related to part number 2574.
