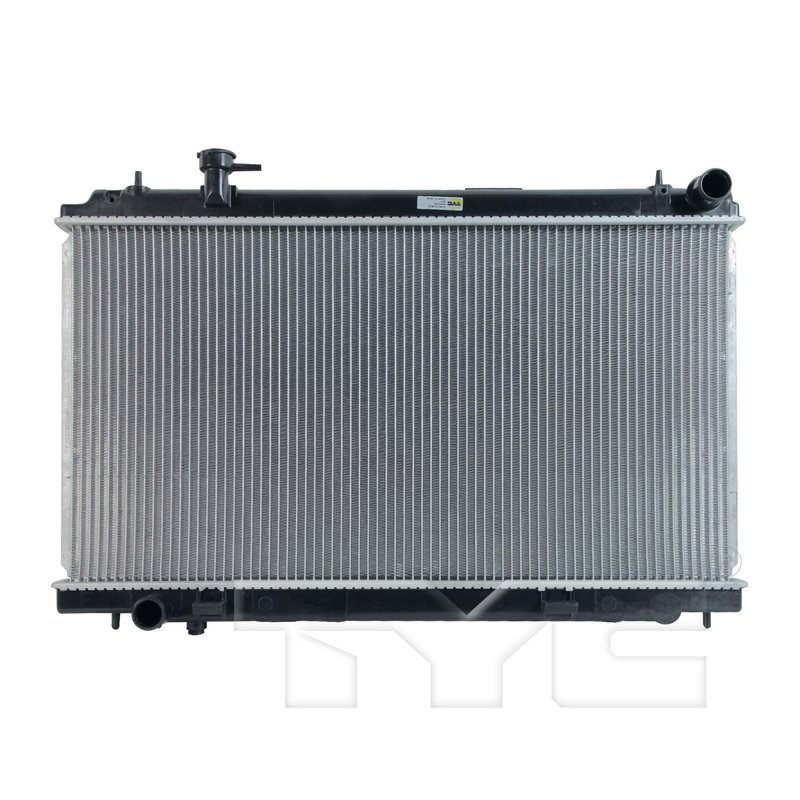

TYC 2577 Radiator
| Brand | TYC 2577 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | No |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.99x29.94 |
| Core Height (in) | 28.66 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Top Header | 1.99x29.94 |
| Total Fin Row Count | 73 |
| Total Tube Count | 72 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Nissan · 4 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Downflow design. Engineered for steady coolant circulation through the radiator.
Hose clamp connections. Simple inlet and outlet attachment for a secure fit.
Cross-references APDI 8012576, CSF 2995 and Nissan 21410-CD010 for the same application. See all 6.
TYC Radiator for 2003-2006 Nissan 350Z
The TYC Radiator 2577 is a direct-fit cooling system replacement for the 2003-2006 Nissan 350Z. Built with an aluminum core and downflow flow configuration, it is engineered for vehicles that need consistent coolant circulation and stable operating temperatures.
TYC Radiator 2577 is part of the TYC Radiator line, a product range focused on replacement cooling components with OE-style fitment details. For shoppers searching for a 2003 Nissan 350Z radiator, 2004-2006 Nissan 350Z cooling replacement, or TYC 2577 radiator fitment, this unit matches the listed application.
- Aluminum core construction for efficient heat transfer
- Downflow design for the specified Nissan 350Z application
- Hose clamp inlet and outlet connections
- 1.38 in. inlet and outlet diameters
- Single-row core design with 28.66 in. core height, 15.75 in. core length, and 0.63 in. core thickness
- No engine oil cooler included
- No transmission oil cooler included
Detailed Product Overview
This radiator is built around a 16 x 2 tube width and height layout, with 72 total tubes, 73 total fin rows, and a fin count of 64 every 4 inches. The top and bottom headers measure 1.99 x 29.94, and the core uses aluminum construction to support heat dissipation in the cooling system. TYC Radiator 2577 cross-references APDI 8012576 and Spectra Premium CU2576 for the same application.
Common Cooling System Issues Addressed
- Overheating caused by a leaking or restricted radiator
- Coolant loss from cracked or corroded radiator components
- Reduced cooling performance from an aging core
- Temperature instability during daily driving or stop-and-go traffic
- Replacement needs after radiator damage on a Nissan 350Z
Installation Notes and Tips
Verify hose diameter, mounting layout, and connection style before installation. Confirm that the vehicle is a 2003-2006 Nissan 350Z and compare the existing radiator dimensions and port locations to the listed specifications. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after installation.
Quality Assurance
TYC Radiator 2577 is built as a replacement radiator for the listed Nissan 350Z applications and is identified by OE interchange reference 21410-CD010. Use the fitment details and dimensional specifications to confirm application match before purchase.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Nissan | 350Z | Manual | 3.5L | V6 | N/A | TYC Radiator |
| 2005 | Nissan | 350Z | Manual | 3.5L | V6 | N/A | TYC Radiator |
| 2004 | Nissan | 350Z | Manual | 3.5L | V6 | N/A | TYC Radiator |
| 2003 | Nissan | 350Z | Manual | 3.5L | V6 | N/A | TYC Radiator |
