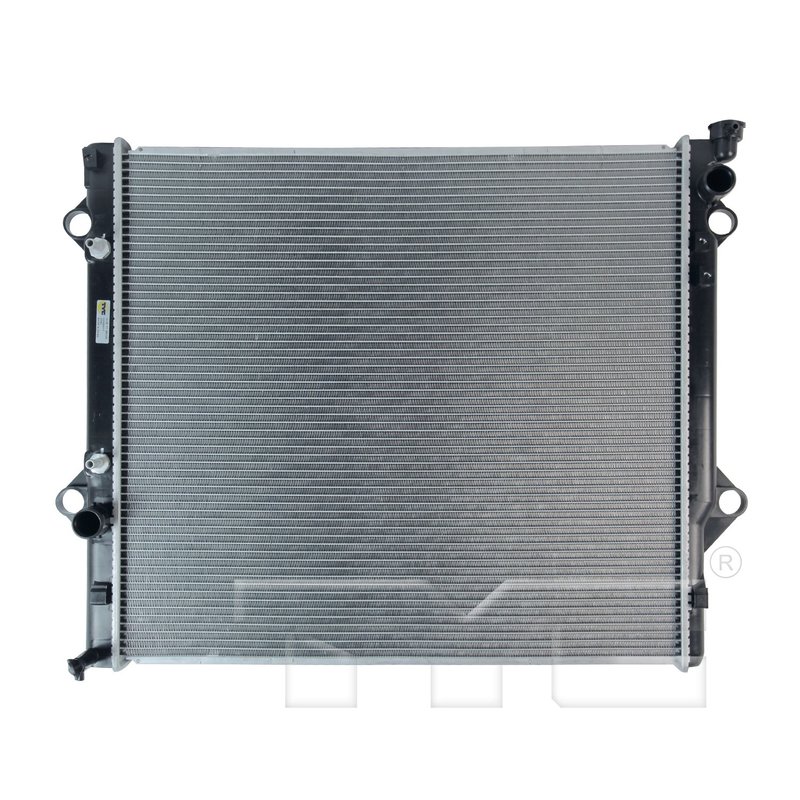

TYC 2580 Radiator - Primary
| Brand | TYC 2580 |
|---|---|
| Position | Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 2.02x24.54 |
| Core Height (in) | 23.11 |
| Core Length (in) | 25.59 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.30 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 9.84 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 2.02x24.54 |
| Total Fin Row Count | 62 |
| Total Tube Count | 61 |
| Tube Count (every 4") | 11 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Toyota · 9 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Built with an integrated plate oil cooler for added cooling support.
Crossflow design. Helps coolant move evenly through the radiator.
Cross-references APDI 8012580, CSF 2010 and CSF 3150 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Toyota 4Runner and FJ Cruiser
The TYC Radiator 2580 is a direct-fit cooling replacement for select Toyota applications, including the 2003-2009 Toyota 4Runner and 2007-2008 Toyota FJ Cruiser. Built with an aluminum core and a crossflow design, it supports engine cooling while also including a transmission oil cooler for automatic-transmission vehicles.
Key Features
- TYC Radiator 2580 for select Toyota 4Runner and Toyota FJ Cruiser fitment
- Aluminum core construction for efficient heat transfer
- Crossflow layout with one-row core design
- Transmission oil cooler included with plate oil cooler type
- Hose clamp inlet and outlet connections, 1.38 in. diameter
- Core dimensions: 23.11 in. height, 25.59 in. length, 1.02 in. thickness
- OE cross-reference applications include Toyota 16400-31351 and 16400-31461
Product Details
This TYC Radiator 2580 is built around a single-row aluminum core with 61 total tubes and a crossflow flow configuration to manage coolant temperature in demanding driving conditions. The integrated transmission oil cooler uses a plate-style design with tube-fitting connections, making it a practical replacement for vehicles that route automatic transmission fluid through the radiator. For shoppers searching for a radiator for 2003-2009 Toyota 4Runner or a radiator for 2007-2008 Toyota FJ Cruiser, this unit matches the listed fitment and cooling layout.
This part cross-references Toyota OE numbers 16400-31351 and 16400-31461 for the same application.
What It Helps Address
- Overheating caused by a worn or leaking radiator
- Coolant loss from cracked tanks or damaged core passages
- Transmission fluid temperature control through the built-in cooler
- Reduced cooling efficiency from clogged or corroded radiator internals
- Replacement needs after age-related deterioration in the original cooling system
Installation Notes and Tips
Verify inlet and outlet hose diameter, cooler line routing, and mounting dimensions before installation. Flush the cooling system and inspect hoses, clamps, and the thermostat when replacing the radiator. Because this unit includes a transmission oil cooler, confirm that the cooler line connections match the vehicle’s factory setup before filling and bleeding the system.
Quality Assurance
TYC is a recognized aftermarket brand for replacement cooling components, and this radiator is built to match the listed application details for direct replacement use.
Compatible With: Fits 2003-2008 Toyota 4Runner, N/A; Fits 2009 Toyota 4Runner, Primary; Fits 2007-2008 Toyota FJ Cruiser, N/A.
| Year | Make | Model | Submodel | Body Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2009 | Toyota | 4Runner | Limited | Sport Utility | — | 4.0L | V6 | Primary | TYC Radiator |
| 2008 | Toyota | 4Runner | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2008 | Toyota | FJ Cruiser | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2007 | Toyota | 4Runner | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2007 | Toyota | FJ Cruiser | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2006 | Toyota | 4Runner | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2005 | Toyota | 4Runner | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2004 | Toyota | 4Runner | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
| 2003 | Toyota | 4Runner | — | — | Automatic | 4.0L | V6 | N/A | TYC Radiator |
