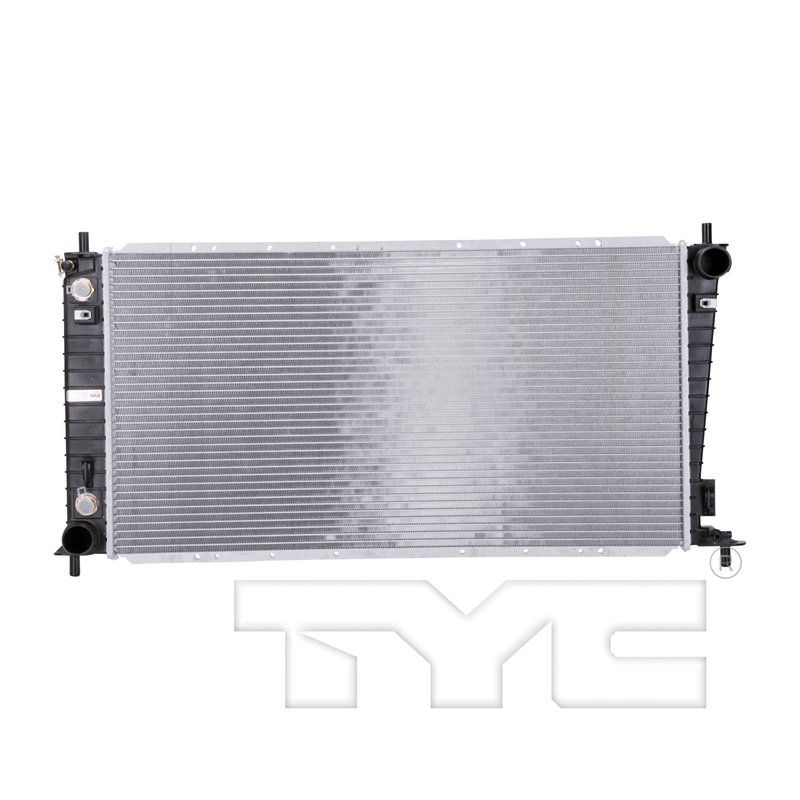

TYC 2596 Radiator - Front or Primary
| Brand | TYC 2596 |
|---|---|
| Position | Front and Primary |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 3.14x17.29 |
| Core Height (in) | 16.81 |
| Core Length (in) | 31.89 |
| Core Thickness (in) | 1.02 |
| Fin Count (every 4") | 64 |
| Fin Wave Height (in) | 0.35 |
| Find Wave Pitch | 3.2 |
| Flow Configuration | Crossflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.77 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.77 |
| Toc Distance (in) | 12.01 |
| Toc Inlet Diameter (in) | 0.37 |
| Toc Inlet Type | Quick connect |
| Toc Outlet Diameter (in) | 0.37 |
| Toc Outlet Type | Quick connect |
| Top Header | 1.97x17.28 |
| Total Fin Row Count | 39 |
| Total Tube Count | 38 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Ford and Lincoln · 11 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Integrated plate oil cooler. Adds transmission fluid cooling in one radiator assembly.
Crossflow design. Supports steady coolant flow for consistent thermal management.
Cross-references APDI 8012596, CRS CUC2596 and CryoMAX 2596 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Ford F-150 and Blackwood
The TYC Radiator 2596 is a direct-fit cooling replacement built with an aluminum core and a crossflow design. It includes a transmission oil cooler with plate-style construction and quick-connect fittings for the cooler lines, making it a practical choice for Ford F-150 and Lincoln Blackwood applications that require this configuration.
Key Features
- Aluminum core construction for efficient heat transfer
- Crossflow radiator layout
- Transmission oil cooler included with plate oil cooler design
- Hose clamp inlet and outlet connections
- 1-row core design with 1.02 in. core thickness
- Core dimensions: 31.89 in. length, 16.81 in. height
- Quick-connect transmission cooler inlet and outlet fittings
- TYC Radiator 2596 for OE-style replacement needs
Product Details
TYC Radiator 2596 is built around a single-row aluminum core with a crossflow flow configuration to support engine cooling and transmission fluid cooling in the same assembly. The radiator uses 1.77 in. hose clamp inlet and outlet connections, while the integrated transmission oil cooler uses quick-connect fittings. This part cross-references Ford YL3Z 8005 GA and Spectra Premium CU2596 for the same application. It is a fitment-based replacement for 2000-2004 Ford F-150, 2004 Ford F-150 Heritage, and 2002 Lincoln Blackwood, including front and primary positions listed in the application data.
Common Cooling Issues Addressed
- Overheating caused by a worn or leaking radiator
- Transmission fluid temperature concerns when the cooler circuit is compromised
- Coolant loss from damaged core tubes, tanks, or headers
- Poor heat dissipation from a restricted or aging radiator assembly
- Fitment problems when replacing a radiator with the wrong cooler connection style
Installation Notes and Tips
Verify the vehicle’s radiator configuration before installation, including core depth, transmission cooler connection type, and inlet and outlet sizing. This radiator is listed for Ford F-150 models with quick-connect cooler fittings and for light-duty applications noted in the fitment data. Confirm hose routing, mounting points, and cooler line style against the original unit before final assembly. For best results, inspect related cooling system components such as hoses, clamps, and coolant condition during replacement.
Quality Assurance
TYC Radiator 2596 is built to match the listed application requirements for Ford F-150 and Lincoln Blackwood cooling system replacement. The aluminum core, integrated transmission oil cooler, and OE-style connection layout support accurate fitment for the specified vehicles.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2004 | Ford | F-150 | — | — | 4.6L | V8 | Front | w/ 1 inch Core Depth; w/ Quick Connect; Light Duty; Crossflow; TYC Radiator |
| 2004 | Ford | F-150 | — | — | 4.2L | V6 | Front | w/ 1 inch Core Depth; w/ Quick Connect; Light Duty; Crossflow; TYC Radiator |
| 2004 | Ford | F-150 Heritage | — | — | 4.2L | V6 | Front | w/ 1 inch Core Depth; w/ Quick Connect; Light Duty; Crossflow; TYC Radiator |
| 2004 | Ford | F-150 Heritage | — | — | 4.6L | V8 | Front | w/ 1 inch Core Depth; w/ Quick Connect; Light Duty; Crossflow; TYC Radiator |
| 2003 | Ford | F-150 | — | — | 5.4L | V8 | Front | w/ 1 inch Core Depth; w/ Quick Connect; Light Duty; Crossflow; TYC Radiator |
| 2003 | Ford | F-150 | — | — | 4.2L | V6 | N/A | w/ 1 inch Core Depth; w/ Quick Connect; Light Duty; Crossflow; TYC Radiator |
| 2003 | Ford | F-150 | — | — | 4.6L | V8 | Front | w/ 1 inch Core Depth; w/ Quick Connect; Light Duty; Crossflow; TYC Radiator |
| 2002 | Ford | F-150 | XLT | Crew Cab Pickup | 4.6L | V8 | Primary | w/ Quick Connect; TYC Radiator |
| 2002 | Lincoln | Blackwood | — | Crew Cab Pickup | 5.4L | V8 | Primary | w/ Quick Connect; TYC Radiator |
| 2001 | Ford | F-150 | XL | Extended Cab Pickup | 4.6L | V8 | Primary | w/ Quick Connect; TYC Radiator |
| 2000 | Ford | F-150 | Base | Standard Cab Pickup | 4.6L | V8 | Primary | w/ Quick Connect; TYC Radiator |
