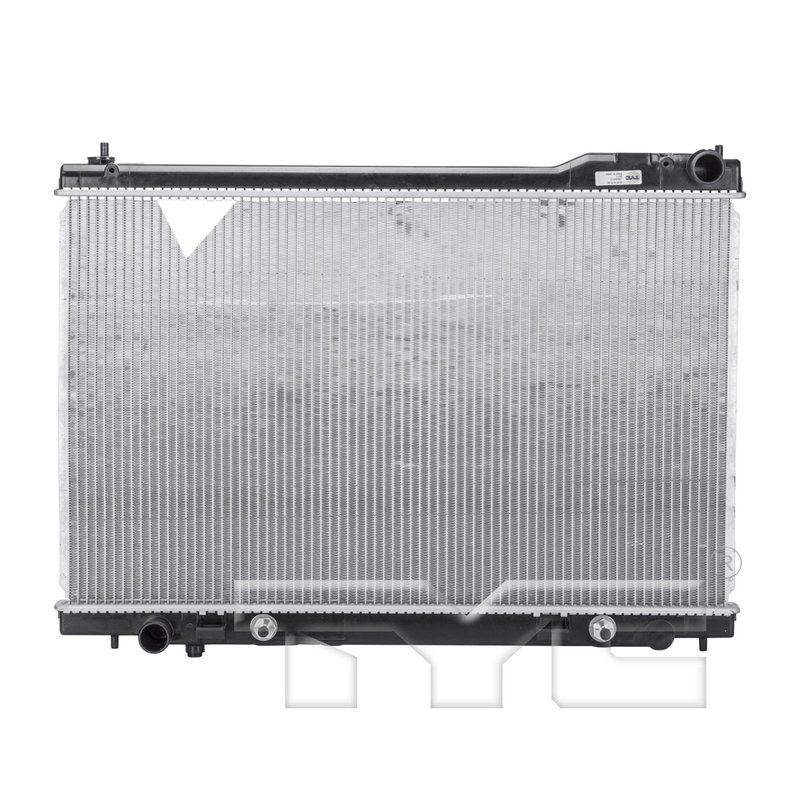

TYC 2671 Radiator
| Brand | TYC 2671 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.99x29.94 |
| Core Height (in) | 28.66 |
| Core Length (in) | 17.72 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.40 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.40 |
| Toc Distance (in) | 14.76 |
| Toc Inlet Diameter (in) | 0.31 |
| Toc Inlet Type | Tube fitting |
| Toc Outlet Diameter (in) | 0.31 |
| Toc Outlet Type | Tube fitting |
| Top Header | 1.99x29.94 |
| Total Fin Row Count | 73 |
| Total Tube Count | 72 |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | INFINITI · 6 vehicles |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Transmission oil cooler included. Built with an integrated plate oil cooler for added cooling support.
Downflow design. Single-row layout helps keep coolant moving through the radiator.
Cross-references APDI 8012671, CSF 2980 and DENSO 221-3424 for the same application. See all 9.
TYC Radiator for Infiniti FX45
The TYC Radiator 2671 is a direct-fit cooling replacement for the 2003-2008 INFINITI FX45. Built with an aluminum core and a downflow design, it includes a transmission oil cooler with a plate-style cooler layout for vehicles that use integrated automatic transmission cooling.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included
- Plate oil cooler type
- Hose clamp inlet and outlet connections
- 1.40 in inlet and outlet diameters
- Single-row core design
- TYC Radiator 2671 cross-references OE-style replacement numbers for the same application
Product Details
TYC Radiator 2671 is engineered for the 2003-2008 INFINITI FX45 and follows the original cooling layout for this application. The aluminum core measures 28.66 inches in height, 17.72 inches in length, and 0.63 inches in thickness, with a 16 x 2 tube width and height and a total tube count of 72. The integrated transmission oil cooler uses tube-fitting connections and supports vehicles equipped with automatic transmission fluid cooling through the radiator assembly. This part is a practical replacement choice when servicing an INFINITI FX45 radiator, especially where OE-style fit and integrated cooler routing are required.
What It Helps Address
- Overheating caused by a leaking or restricted radiator
- Loss of coolant from cracked tanks or damaged core sections
- Automatic transmission cooling issues tied to a failed radiator cooler circuit
- Reduced heat dissipation from a clogged or corroded cooling assembly
- Cooling system service needs on a 2003-2008 INFINITI FX45
Installation Notes and Tips
Verify hose clamp connection sizes, cooler line routing, and mounting dimensions before installation. Flush the cooling system and inspect hoses, clamps, and the thermostat before installing the new radiator. Confirm that the transmission cooler connections match the vehicle’s original setup on the INFINITI FX45. Use fresh coolant and bleed the system according to factory service procedures after installation.
Quality Assurance
TYC Radiator 2671 is built as an OE-style replacement radiator for the listed application and is backed by TYC’s product engineering standards.
| Year | Make | Model | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2008 | INFINITI | FX45 | Automatic | 4.5L | V8 | TYC Radiator |
| 2007 | INFINITI | FX45 | Automatic | 4.5L | V8 | TYC Radiator |
| 2006 | INFINITI | FX45 | Automatic | 4.5L | V8 | TYC Radiator |
| 2005 | INFINITI | FX45 | Automatic | 4.5L | V8 | TYC Radiator |
| 2004 | INFINITI | FX45 | Automatic | 4.5L | V8 | TYC Radiator |
| 2003 | INFINITI | FX45 | Automatic | 4.5L | V8 | TYC Radiator |
