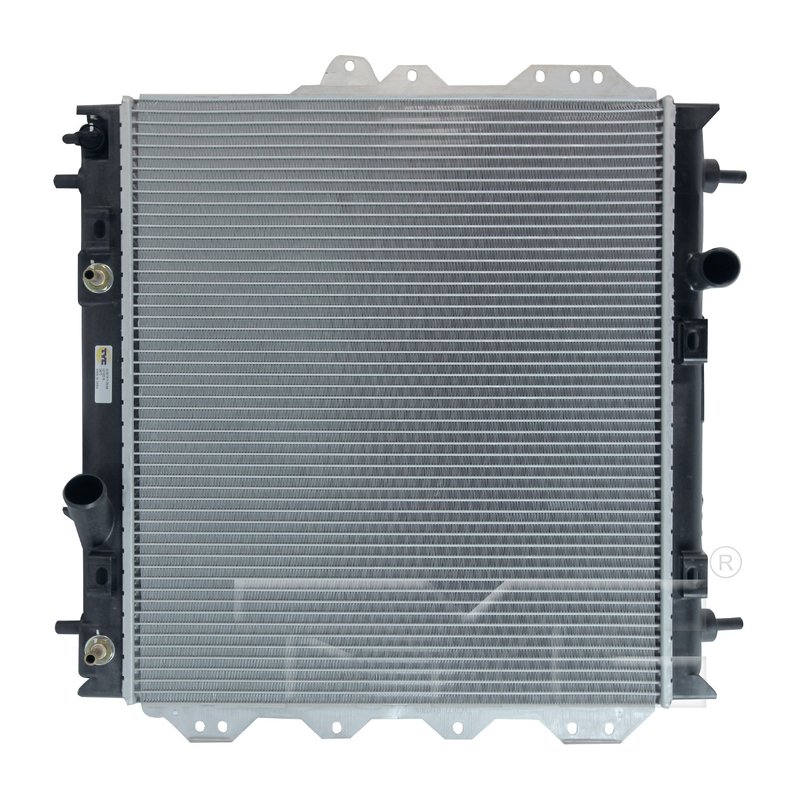

TYC 2677 Radiator

Overview of TYC Radiator 2677 for Chrysler PT Cruiser

The TYC Radiator 2677 is engineered specifically for Chrysler PT Cruiser models, providing reliable cooling performance with integrated transmission oil cooling. Designed with durable aluminum core material, this radiator supports efficient engine temperature management and transmission fluid cooling in one unit.

• Core material constructed from aluminum for effective heat dissipation
• Includes concentric transmission oil cooler for integrated transmission fluid cooling
• Downflow flow configuration optimized for Chrysler PT Cruiser
• Core dimensions: 20.79 inches height, 18.11 inches length, and 1.02 inches thickness
• Single-row tube design with 52 tubes and 73 fins per 4 inches for enhanced cooling
• Hose clamp inlet and outlet connections with diameters of 1.30 and 1.38 inches respectively
• Top and bottom headers sized at 2.13 by 20.94 inches

Detailed Features of the TYC Radiator 2677

This radiator features a robust aluminum core that ensures efficient heat transfer and durability under demanding conditions. The integrated concentric transmission oil cooler allows for simultaneous cooling of transmission fluid, which helps maintain optimal transmission performance. The downflow design directs coolant flow from top to bottom, matching the cooling system layout of the Chrysler PT Cruiser. With a single row of 52 tubes and a fin count of 73 every 4 inches, the radiator maximizes surface area for heat exchange. Hose clamp inlet and outlet connections provide secure attachment points with diameters tailored to the vehicle's cooling system specifications.

TYC Radiator Product Line Information

The TYC Radiator product line focuses on delivering reliable cooling components that meet or exceed OEM specifications. Radiators in this line are designed with quality materials such as aluminum cores and incorporate features like integrated transmission oil coolers when applicable. The TYC Radiator 2677 exemplifies this approach by combining engine cooling and transmission fluid cooling in a single, efficient unit tailored for the Chrysler PT Cruiser.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiator cores in Chrysler PT Cruiser vehicles
• Restores proper engine temperature regulation to prevent overheating
• Addresses transmission fluid overheating by utilizing the built-in concentric oil cooler
• Resolves coolant flow restrictions caused by clogged or corroded radiators
• Improves overall cooling system efficiency for vehicles experiencing reduced cooling performance

Installation Notes and Tips

When installing the TYC Radiator 2677, ensure all hose clamps are securely fastened to the 1.30-inch inlet and 1.38-inch outlet connections. Verify compatibility with the Chrysler PT Cruiser cooling system layout, particularly the downflow configuration. Properly connect the concentric transmission oil cooler fittings using the specified tube fittings with 0.31-inch diameters. Inspect all seals and hoses for wear and replace as necessary to maintain system integrity.

Quality Assurance and Warranty

TYC Radiator 2677 is manufactured to meet industry standards for durability and performance. The aluminum core construction and integrated transmission oil cooler are tested to ensure reliable operation under normal driving conditions. While specific warranty details are not provided, TYC products typically come with a limited warranty covering defects in materials and workmanship.
