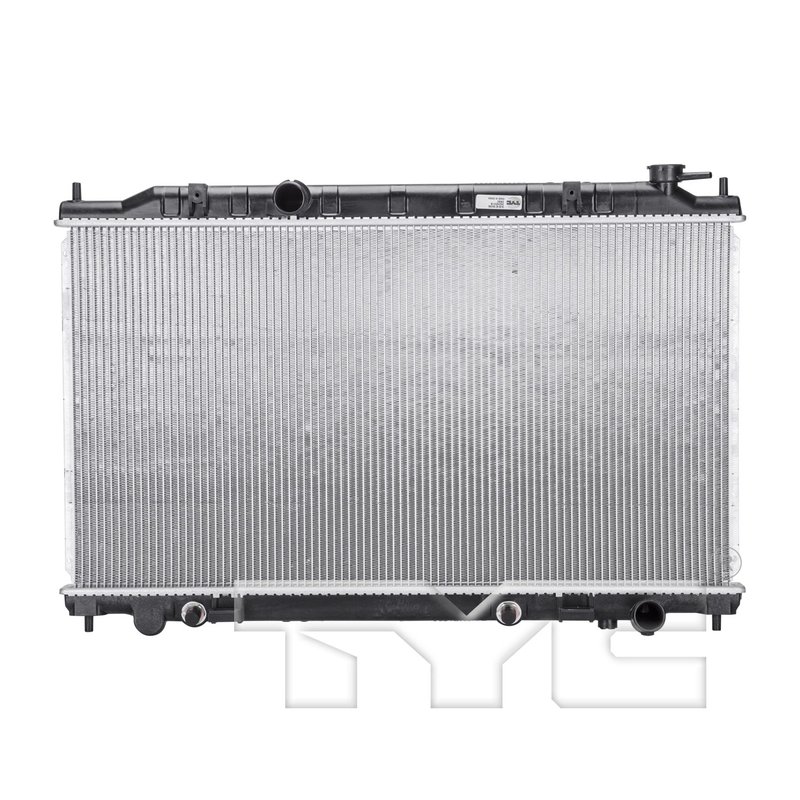

TYC 2693 Radiator
| Brand | TYC 2693 |
|---|---|
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Concentric oil cooler |
| Engine Oil Cooler Included | No |
| Bottom Header | 1.99x29.94 |
| Core Height (in) | 28.68 |
| Core Length (in) | 15.75 |
| Core Thickness (in) | 0.63 |
| Fin Count (every 4") | 78 |
| Fin Wave Height (in) | 0.25 |
| Find Wave Pitch | 2.6 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 13.78 |
| Top Header | 1.99x29.94 |
| Total Fin Row Count | 88 |
| Total Tube Count | 87 |
| Tube Count (every 4") | 12 |
| Tube Width X Height | 16x2 |
| Product line | TYC Radiator |
| Fits | Nissan · 1 vehicle |
Aluminum core. Lightweight construction helps promote efficient heat transfer.
Concentric oil cooler included. Built into the radiator for added transmission cooling.
Hose clamp connections. Simplifies hose attachment for a secure fit.
Cross-references APDI 8012693, CSF 1736 and Delphi NI3010203 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC 2693 Radiator for 2004 Nissan Maxima
The TYC Radiator 2693 is a direct-fit cooling system replacement for the 2004 Nissan Maxima. Built with an aluminum core and a downflow design, it includes a concentric transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.
Key Features
- Aluminum core construction for efficient heat transfer
- Downflow flow configuration
- Transmission oil cooler included with concentric oil cooler design
- Hose clamp inlet and outlet connections
- 1.38 in inlet and outlet diameters
- Core dimensions: 28.68 in height, 15.75 in length, 0.63 in thickness
- OE cross-reference application for 2004 Nissan Maxima radiator replacement
Detailed Description
TYC 2693 is a radiator assembly engineered for the 2004 Nissan Maxima and built around an aluminum core for thermal efficiency. The radiator uses a downflow configuration and features a concentric transmission oil cooler, making it a practical replacement for vehicles that route transmission fluid through the radiator. With hose clamp inlet and outlet connections and matching 1.38-inch inlet and outlet diameters, this radiator is specified for straightforward fitment in the listed application. This part cross-references Nissan OE part number 21460-8Y100 for the same application.
The TYC Radiator line focuses on replacement cooling components for passenger vehicles, and part number 2693 follows that approach with application-specific dimensions and integrated transmission cooling. For shoppers searching for a 2004 Nissan Maxima radiator replacement, TYC 2693 provides the core specifications needed to match the original cooling layout.
What This Radiator Helps Address
- Engine overheating caused by a failing radiator core
- Transmission fluid temperature control issues when the original cooler is damaged
- Coolant leaks from aged or corroded radiator assemblies
- Poor heat dissipation from restricted or deteriorated cooling passages
- Fitment problems when replacing the original 2004 Nissan Maxima radiator
Installation Notes and Tips
Verify the vehicle uses the listed downflow radiator layout and concentric transmission oil cooler before installation. Compare inlet and outlet diameters, header dimensions, and core measurements against the original unit to confirm match-up. Inspect hoses, clamps, and transmission cooler lines for wear before transferring the radiator into service. After installation, refill coolant to the correct specification and bleed the cooling system according to Nissan service procedures.
Quality Assurance
TYC manufactures replacement cooling components with application-specific dimensions and OE-style fitment targets. Part number 2693 is listed with confirmed fitment for the 2004 Nissan Maxima and is supported by interchange references including CSF 1736 and Spectra Premium CU2693.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Nissan | Maxima | Automatic | 3.5L | V6 | N/A | TYC Radiator |
