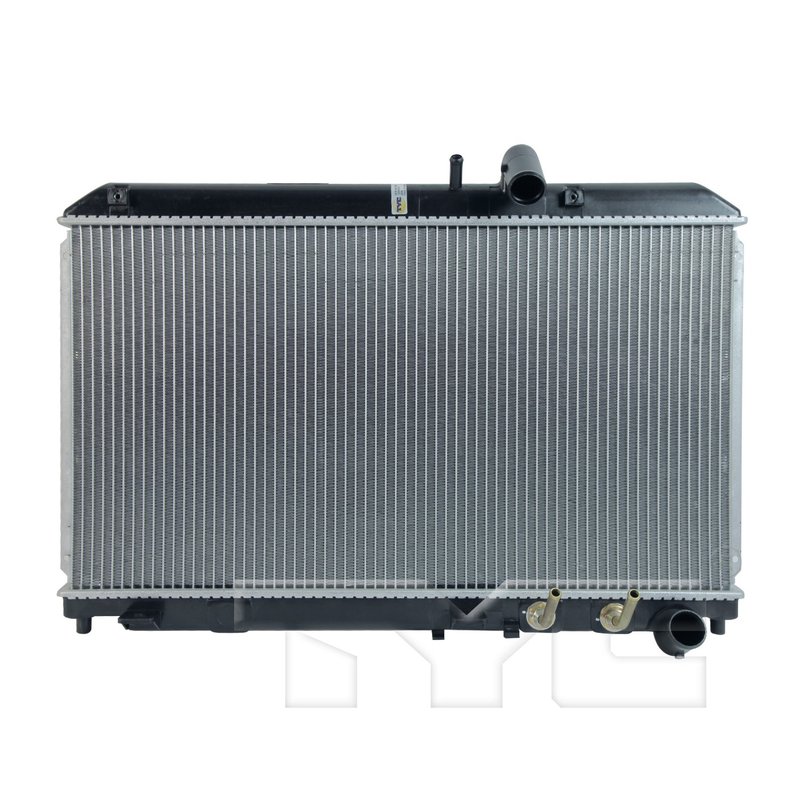

TYC 2694 Radiator
Overview of the TYC Radiator for Mazda RX-8
The TYC Radiator part number 2694 is engineered specifically for the Mazda RX-8, providing reliable cooling performance. Designed with an aluminum core and integrated transmission oil cooler, this radiator supports efficient engine and transmission temperature management.
- Core Material: Durable aluminum construction
- Transmission Oil Cooler: Included with plate oil cooler design
- Core Dimensions: 25.51 inches height, 14.17 inches length, 1.02 inches thickness
- Flow Configuration: Downflow for optimized coolant circulation
- Inlet and Outlet: Hose clamp connections with 1.38-inch diameter
- Fin Count: 73 fins per 4 inches with 0.31-inch fin wave height
- Tube Count: 64 tubes total with 26x2 inch tube dimensions
TYC Radiator Product Line Details
The TYC Radiator line focuses on delivering quality cooling components that meet or exceed OEM specifications. This product line emphasizes durable aluminum cores and integrated transmission oil coolers where applicable, such as in part number 2694. The design supports efficient heat dissipation and reliable fitment for specific vehicle models like the Mazda RX-8.
Technical Description and Features
This radiator features a single-row core with a downflow configuration, allowing coolant to flow from top to bottom efficiently. The aluminum core enhances heat transfer while maintaining lightweight durability. The integrated transmission oil cooler uses a plate oil cooler type with adapter inlet and outlet connections sized at 0.39 inches, ensuring proper transmission fluid cooling. Both the inlet and outlet connections for the radiator are hose clamp types with a 1.38-inch diameter, facilitating straightforward installation. The fin design includes 73 fins every 4 inches with a fin wave height of 0.31 inches and a pitch of 2.8, contributing to effective airflow and heat exchange.
Applications and Problem Solving
- Replaces faulty or leaking radiator in Mazda RX-8 models
- Addresses overheating issues caused by inefficient cooling
- Restores proper transmission fluid temperature control with integrated oil cooler
- Solves coolant leaks due to damaged or corroded radiator cores
- Improves engine cooling system reliability and performance
Installation Notes and Tips
Ensure compatibility with Mazda RX-8 before installation. Use appropriate hose clamps for inlet and outlet connections sized at 1.38 inches. Verify transmission oil cooler adapter fittings are properly connected to avoid leaks. Inspect all hoses and clamps for wear and replace if necessary during installation. Follow vehicle manufacturer torque specifications for mounting hardware.
Quality Assurance and Warranty
The TYC Radiator 2694 is manufactured to meet OEM standards for fit, form, and function. The aluminum core construction and integrated transmission oil cooler are tested for durability and performance. Warranty coverage details should be confirmed with the product documentation or supplier, ensuring peace of mind with your purchase.
| Brand | TYC |
|---|---|
| Part Number | 2694 |
| Position | TYC Radiator, N/A |
| Bottom Header | 1.96x26.43 |
| Core Height (in) | 25.51 |
| Core Length (in) | 14.17 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.38 |
| Toc Distance (in) | 2.76 |
| Toc Inlet Diameter (in) | 0.39 |
| Toc Inlet Type | Adapter |
| Toc Outlet Diameter (in) | 0.39 |
| Toc Outlet Type | Adapter |
| Top Header | 1.96x26.43 |
| Total Fin Row Count | 65 |
| Total Tube Count | 64 |
| Transmission Oil Cooler Included | Yes |
| Transmission Oil Cooler Type | Plate Oil Cooler |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Mazda | RX-8 | Automatic | 1.3L | R2 | N/A | TYC Radiator |
| 2007 | Mazda | RX-8 | Automatic | 1.3L | R2 | N/A | TYC Radiator |
| 2006 | Mazda | RX-8 | Automatic | 1.3L | R2 | N/A | TYC Radiator |
| 2005 | Mazda | RX-8 | Automatic | 1.3L | R2 | N/A | TYC Radiator |
| 2004 | Mazda | RX-8 | Automatic | 1.3L | R2 | N/A | TYC Radiator |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
