Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

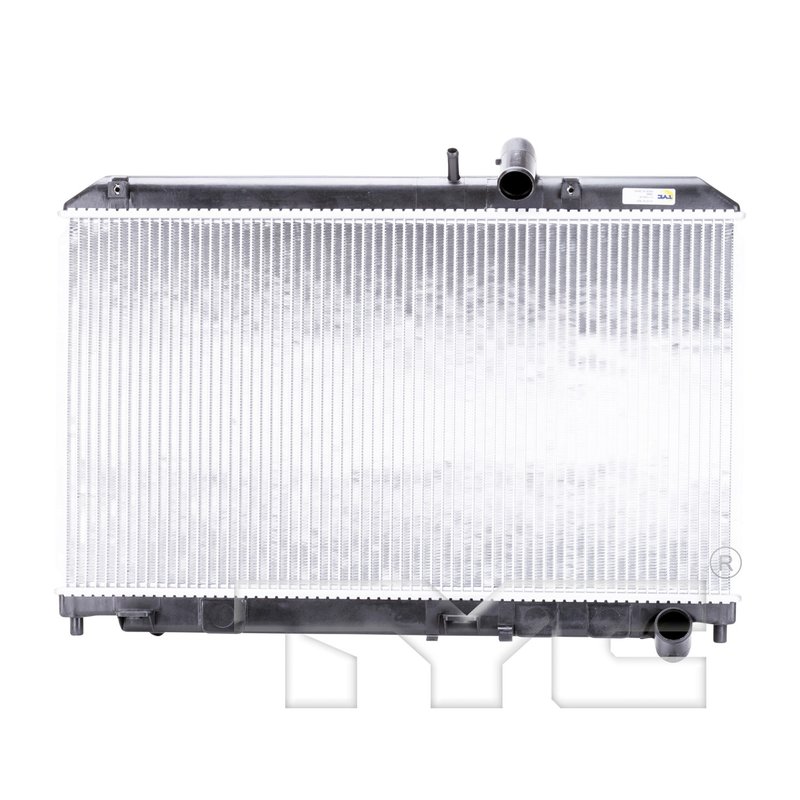

TYC 2695 Radiator
| Brand | TYC 2695 |
|---|---|
| Bottom Header | 1.96x26.43 |
| Core Height (in) | 25.51 |
| Core Length (in) | 14.17 |
| Core Material | Aluminum |
| Core Thickness (in) | 1.02 |
| Engine Oil Cooler Included | No |
| Fin Count (every 4") | 73 |
| Fin Wave Height (in) | 0.31 |
| Find Wave Pitch | 2.8 |
| Flow Configuration | Downflow |
| Inlet Connection Type | Hose Clamp |
| Inlet Diameter (in) | 1.38 |
| No. Of Rows | 1 |
| Outlet Connection Type | Hose Clamp |
| Outlet Diameter (in) | 1.38 |
| Top Header | 1.96x26.43 |
| Total Fin Row Count | 65 |
| Total Tube Count | 64 |
| Transmission Oil Cooler Included | No |
| Tube Count (every 4") | 10 |
| Tube Width X Height | 26x2 |
| Product line | TYC Radiator |
| Fits | Mazda · 5 vehicles |
Aluminum core. Helps shed heat efficiently with a lightweight design.
Downflow design. Promotes steady coolant circulation through the radiator.
Hose clamp connections. Provides a straightforward, secure hose attachment.
Cross-references APDI 8012694, CSF 3122 and DENSO 221-9390 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TYC Radiator for Mazda RX-8
The TYC Radiator 2695 is a direct-fit cooling replacement for 2004-2008 Mazda RX-8 models. Built with an aluminum core and downflow flow configuration, it is specified for hose clamp inlet and outlet connections to match the listed application.
TYC Radiator 2695 is engineered for the Mazda RX-8 cooling system with core dimensions of 25.51 inches high, 14.17 inches long, and 1.02 inches thick. This radiator does not include an engine oil cooler or transmission oil cooler, keeping the design focused on standard engine cooling service.
Key Features
- Fits 2004-2008 Mazda RX-8, N/A
- Aluminum core construction for efficient heat transfer
- Downflow design for the listed vehicle application
- Hose clamp inlet and outlet connections
- 1-row core design with 64 total tubes
- TYC Radiator 2695 replacement part number
- Cross-references APDI 8012694 for the same application
Detailed Description
This radiator is built around the listed OE-style dimensions and connection points for the Mazda RX-8. The core uses aluminum construction with a 1-row layout, 64 total tubes, and fin density specified at 73 fins every 4 inches to support heat dissipation in normal cooling-system operation. The top and bottom headers measure 1.96 x 26.43 inches, and the tube width by height is listed at 26 x 2 inches.
For shoppers searching for a 2004 Mazda RX-8 radiator, 2005-2008 Mazda RX-8 cooling replacement, or TYC 2695 radiator fitment, this part matches the confirmed vehicle application in the catalog. The TYC Radiator line focuses on application-specific replacement radiators for vehicles that require direct-fit cooling service.
What It Helps Address
- Overheating caused by a worn or restricted radiator
- Coolant leaks from aging radiator tanks or core damage
- Reduced cooling efficiency from clogged internal passages
- Heat-related drivability issues in the Mazda RX-8 cooling system
- Replacement needs after corrosion, impact damage, or fatigue
Installation Notes and Tips
Verify the inlet and outlet hose clamp connections, core dimensions, and downflow layout before installation. Transfer any required vehicle-specific components from the original radiator if applicable to your repair procedure, and inspect hoses, clamps, and coolant condition at the same time. Proper system bleeding and a full coolant check after installation help confirm stable operation.
Quality Assurance
TYC manufactures replacement cooling components for application-specific fitment, and this radiator is cataloged for the confirmed Mazda RX-8 model years listed above. Part number 2695 is identified for 2004-2008 Mazda RX-8 applications in the cooling system category.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Mazda | RX-8 | Manual | 1.3L | R2 | N/A | TYC Radiator |
| 2007 | Mazda | RX-8 | Manual | 1.3L | R2 | N/A | TYC Radiator |
| 2006 | Mazda | RX-8 | Manual | 1.3L | R2 | N/A | TYC Radiator |
| 2005 | Mazda | RX-8 | Manual | 1.3L | R2 | N/A | TYC Radiator |
| 2004 | Mazda | RX-8 | Manual | 1.3L | R2 | N/A | TYC Radiator |
