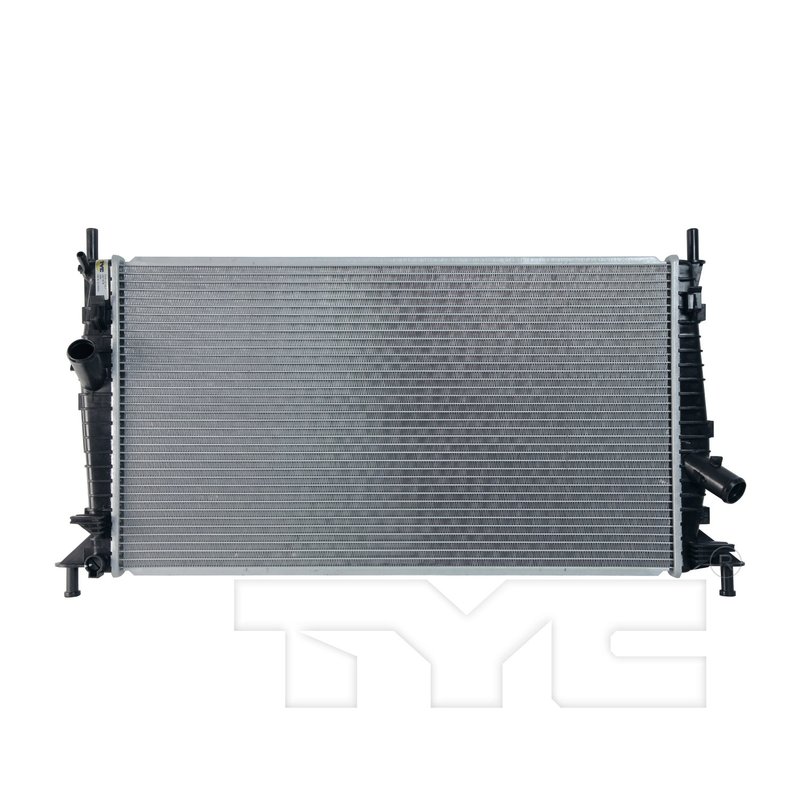

TYC 2696 Radiator

Overview of the TYC Radiator 2696 for Mazda 3

The TYC Radiator 2696 is designed specifically for the Mazda 3, providing reliable engine cooling with precision fitment. Constructed with an aluminum core, this radiator supports efficient heat dissipation to maintain optimal engine temperature during operation.

• Core Material: Durable aluminum for effective heat transfer
• Core Dimensions: 14.49 inches height, 26.46 inches length, 0.87 inches thickness
• Flow Configuration: Crossflow design for improved coolant circulation
• Connection Types: Hose clamp inlet and outlet with 1.34-inch diameter
• Fin Count: 73 fins every 4 inches with a fin wave height of 0.31 inches
• Tube Count: 36 tubes total, arranged in a single row
• Headers: Top and bottom headers sized 1.6 by 15.5 inches

Detailed Product Description

The TYC Radiator 2696 features a robust aluminum core that enhances heat dissipation, essential for maintaining engine performance in the Mazda 3. Its crossflow flow configuration allows coolant to pass horizontally through the radiator, optimizing cooling efficiency. The radiator includes 73 fins every 4 inches, with a fin wave height of 0.31 inches and a fin wave pitch of 2.8, which collectively improve airflow and heat exchange. The single-row design with 36 tubes ensures consistent coolant flow, while the 1.34-inch hose clamp inlet and outlet connections provide secure and leak-resistant attachment points. Both the top and bottom headers measure 1.6 by 15.5 inches, contributing to the radiator's structural integrity and fitment accuracy.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering reliable cooling components engineered to meet or exceed OEM specifications. This line emphasizes quality materials and precise manufacturing tolerances, ensuring compatibility and durability for vehicles like the Mazda 3. The TYC Radiator 2696 exemplifies this approach by combining aluminum core construction with a crossflow design tailored for efficient engine cooling.

Common Applications and Problem Solving

• Replaces damaged or leaking radiators in Mazda 3 models
• Addresses engine overheating issues caused by inefficient cooling
• Restores proper coolant flow and heat dissipation
• Solves radiator core corrosion or clogging problems
• Improves overall engine temperature regulation for consistent performance

Installation Notes and Tips

Ensure the radiator is compatible with your specific Mazda 3 model year before installation. Use appropriate hose clamps for the 1.34-inch inlet and outlet connections to prevent leaks. Inspect and replace any worn hoses or seals during installation to maintain system integrity. Properly bleed the cooling system after installation to remove air pockets and ensure optimal coolant circulation.

Quality Assurance and Warranty

The TYC Radiator 2696 is manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, TYC products typically undergo rigorous quality control to ensure reliable operation. For warranty information, refer to the product documentation or contact the manufacturer directly.
