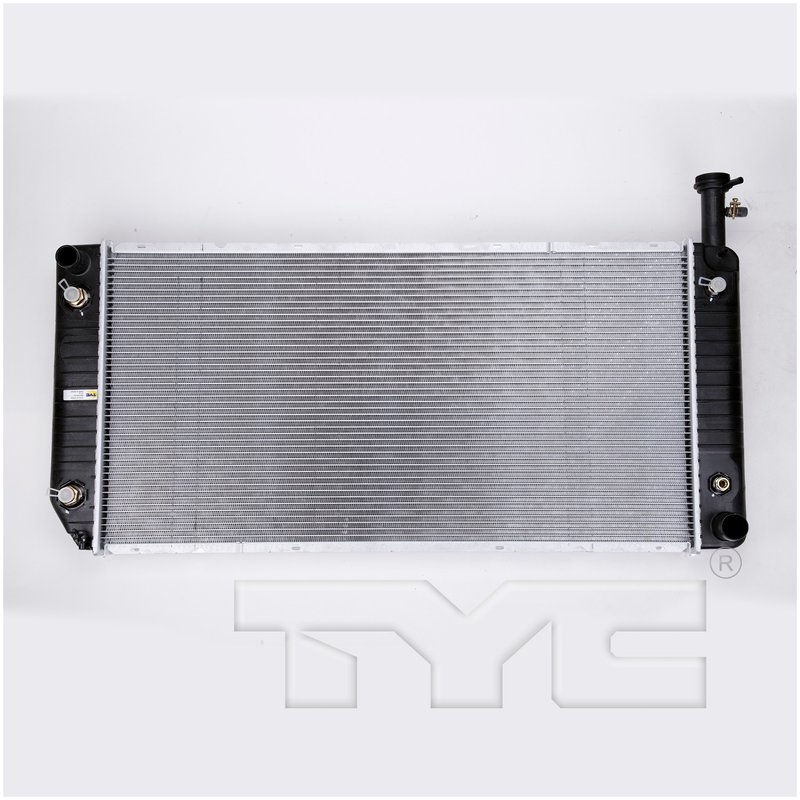

TYC 2713 Radiator

Overview of TYC Radiator 2713 for Chevrolet and GMC Vans

The TYC Radiator 2713 is engineered for reliable cooling performance in Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 models. Designed with integrated oil coolers, this radiator supports both engine and transmission cooling needs.

• Core material constructed from durable aluminum
• Includes plate-type engine and transmission oil coolers
• Crossflow design with 1.02-inch core thickness for efficient heat dissipation
• Quick connect fittings for transmission and engine oil cooler inlets and outlets
• Compatible with Chevrolet Express 2500/3500 and GMC Savana 2500/3500
• Core dimensions: 17.13" height, 34.02" length, 1.02" thickness
• Hose clamp inlet (1.30") and outlet (1.54") connections
• Single-row core with 73 fins per 4 inches for optimized airflow

Detailed Features of the TYC Radiator 2713

This TYC Radiator 2713 features an aluminum core that provides a balance of lightweight construction and effective heat transfer. The crossflow flow configuration enhances coolant circulation, improving engine temperature regulation. Both engine and transmission oil coolers are integrated as plate-type coolers, each with quick connect inlet and outlet fittings sized at 0.37 inches (9.5 mm), facilitating straightforward installation and maintenance. The radiator’s headers measure 3.16 by 18.5 inches, supporting structural integrity and coolant flow. The fin wave height of 0.30 inches and a fin wave pitch of 2.8 contribute to efficient heat exchange, while the single-row design simplifies the cooling system layout.

About the TYC Radiator Product Line

The TYC Radiator product line focuses on delivering replacement radiators that meet or exceed OEM specifications for various vehicle applications. This line emphasizes quality core materials and integrated cooling components, such as engine and transmission oil coolers, to ensure comprehensive thermal management. The TYC Radiator 2713 exemplifies this approach by combining aluminum construction with plate-type oil coolers and precise fitment for Chevrolet and GMC full-size vans.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Chevrolet Express 2500/3500 and GMC Savana 2500/3500
• Resolves overheating caused by inefficient or clogged radiator cores
• Addresses transmission fluid overheating with integrated transmission oil cooler
• Fixes engine oil temperature regulation issues via built-in engine oil cooler
• Improves coolant flow and heat dissipation in aging cooling systems

Installation Notes and Tips

• Ensure compatibility with Chevrolet Express or GMC Savana 2500/3500 models before installation
• Use proper hose clamps for inlet and outlet connections sized at 1.30 and 1.54 inches respectively
• Verify quick connect fittings for transmission and engine oil coolers are securely attached
• Inspect and replace any worn hoses or clamps during installation to prevent leaks
• Bleed the cooling system properly after installation to avoid air pockets

Quality Assurance and Warranty

The TYC Radiator 2713 is manufactured to meet industry standards for durability and performance. Constructed with corrosion-resistant aluminum and designed with integrated oil coolers, it supports reliable engine and transmission cooling. While specific warranty details should be confirmed with the distributor, TYC products typically include a limited warranty covering defects in materials and workmanship.
